The Aligner Is Made by the Model, Not the Printer's Spec Sheet

Orthodontic labs buying a printer for aligner work often evaluate machines on the same criteria as a modelling shop, and then discover that the criteria that matter are different. The aligner itself is formed from a polymer sheet draped over the printed model under heat and vacuum. The printer's job is to produce a model that is dimensionally faithful to the intraoral scan and geometrically stable through the forming cycle. If the model is right, the aligner is right. If the model moves, warps, or loses the fine detail at the gingival margin, no amount of care at the press will recover it.

[MUST] The reason this matters commercially is the remake rate. A clear aligner series is delivered as a set, and a single ill-fitting stage produces a patient complaint, a mid-course correction, and a replacement set manufactured at the lab's cost. Remakes are the dominant hidden cost in aligner production, and they trace back disproportionately to model quality rather than to the forming step. A lab that measures its model tolerance up front spends less on remakes than a lab that treats the printed model as a commodity input.

The Model Tolerance Budget

The tolerance budget for an aligner model is not a single number, and treating it as one is the first mistake. Several errors stack, and each has a different source: the scanner, the model printer, the post-cure, and the resin's own shrink. A workable laboratory budget assigns a ceiling to each contributor and holds the total inside the clinical requirement. Where clinical fit tolerates roughly 0.1 mm of deviation at the tooth surface before a stage feels loose or tight, the individual contributions must be far smaller than that ceiling.

The scan itself carries error, and it is usually the largest single term and the one least under the lab's control. The printer adds its own error, dominated by the optical resolution of the light engine and the pixel pitch in the XY plane, plus the Z layer height. Post-cure shrinks the resin further, and if cure time or temperature runs outside the resin manufacturer's window, the shrink is neither small nor predictable. A lab that counts these terms and measures each one can find the term that is actually eating the budget; a lab that does not will adjust the wrong variable repeatedly.

Why Model Material and Geometry Matter Beyond Accuracy

Two models printed to identical dimensional accuracy can behave very differently at the press. The difference is the material's behaviour under heat and its thermal stability during the forming cycle. A model that softens or relaxes when the heated sheet is drawn over it will deform at exactly the moment the aligner is being shaped, and the deformation will not be visible until the aligner is tried in the mouth.

[GAP] The practical requirement is a model material that holds its geometry through the temperatures a thermoforming cycle reaches, and a geometry that resists distortion as the sheet is drawn down. That means the model material is chosen for thermal stability, not only for print resolution, and the model walls and base are designed thick enough to resist the draw forces without flexing. Thin, delicate models that photograph well are the wrong choice for a forming operation. The second requirement is curing discipline: an under-cured model is soft and dimensionally restless, and an over-cured model is brittle. Both fall outside the tolerance budget, and both are avoidable with a cure protocol tied to the resin's specification rather than to a fixed timer that happened to work once.

The Thermoforming Cycle in Practice

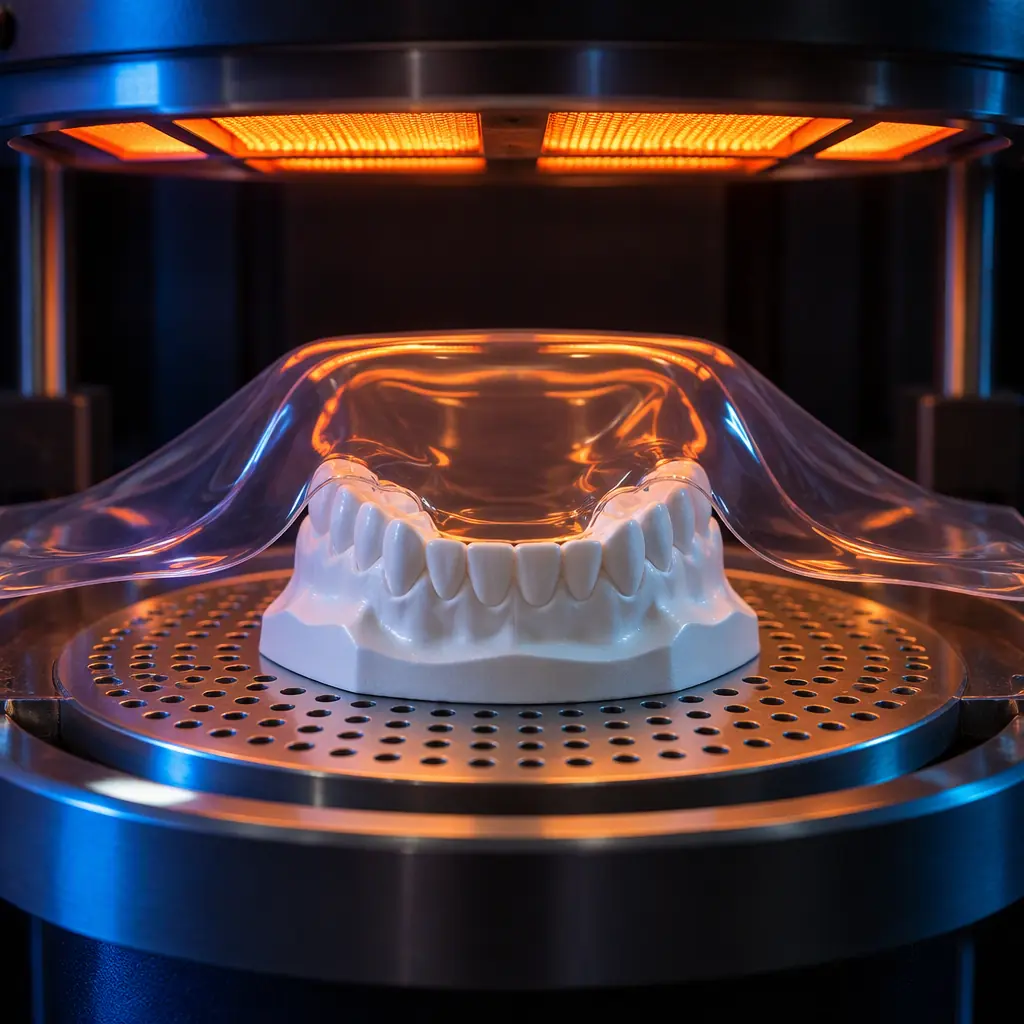

The forming cycle is where the model meets the sheet, and its parameters are set by the sheet material rather than by the aligner design. The cycle has three phases that the operator controls and one that the equipment must hold. The sheet is heated until it is soft enough to drape without tearing, held at that temperature long enough for the heat to penetrate the full thickness, and then drawn over the model under vacuum quickly enough that it conforms before it cools. The equipment must hold a repeatable vacuum and a repeatable temperature, because a cycle that varies produces aligners from the same model that fit differently.

The most common detectable fault is incomplete conformance at the gingival margin and interproximal areas, where the sheet has to stretch into sharp features. That fault has two likely sources: the sheet was not heated enough, or the vacuum pulled before the sheet was ready. Both are corrected by measuring the sheet's surface temperature at the moment of the draw rather than by judging softness by eye. [SNIPPET] The second common fault is thinning at the incisal edges and cusps, where the drawn sheet stretches thin; the aligner is weak there and the fix is usually a thicker sheet or a hotter, faster draw rather than a geometry change.

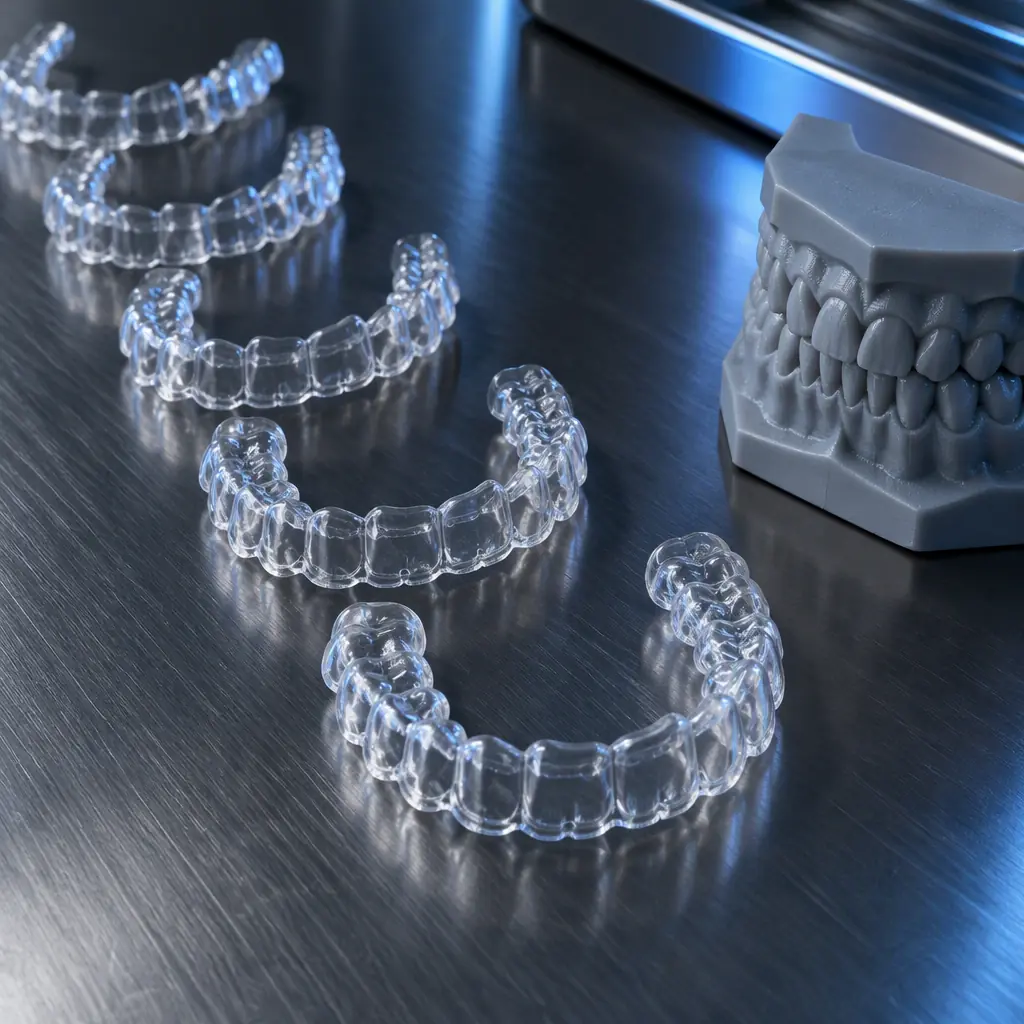

Trim and polish come after forming, and they are as much a part of fit as the model. The trim line should follow the gingival margin consistently across every stage in a series, because a trim line that drifts between stages is felt by the patient as a changing fit even when the aligner geometry is correct. The polishing removes the cut edge and any stress whitening from trimming, and it is the last chance to catch a stage that should have been a remake before it reaches the patient.

Capacity Arithmetic: How Many Printers Does the Lab Actually Need

The capacity question in an aligner lab is not how fast a printer prints, but how many complete model sets it can turn per working day, allowing for build-plate packing, the post-cure hold, and the forming line's own throughput. These three stages have different rates and the slowest one sets the lab's capacity. A lab that upgrades printers without looking at the forming and curing stages buys capacity it cannot use.

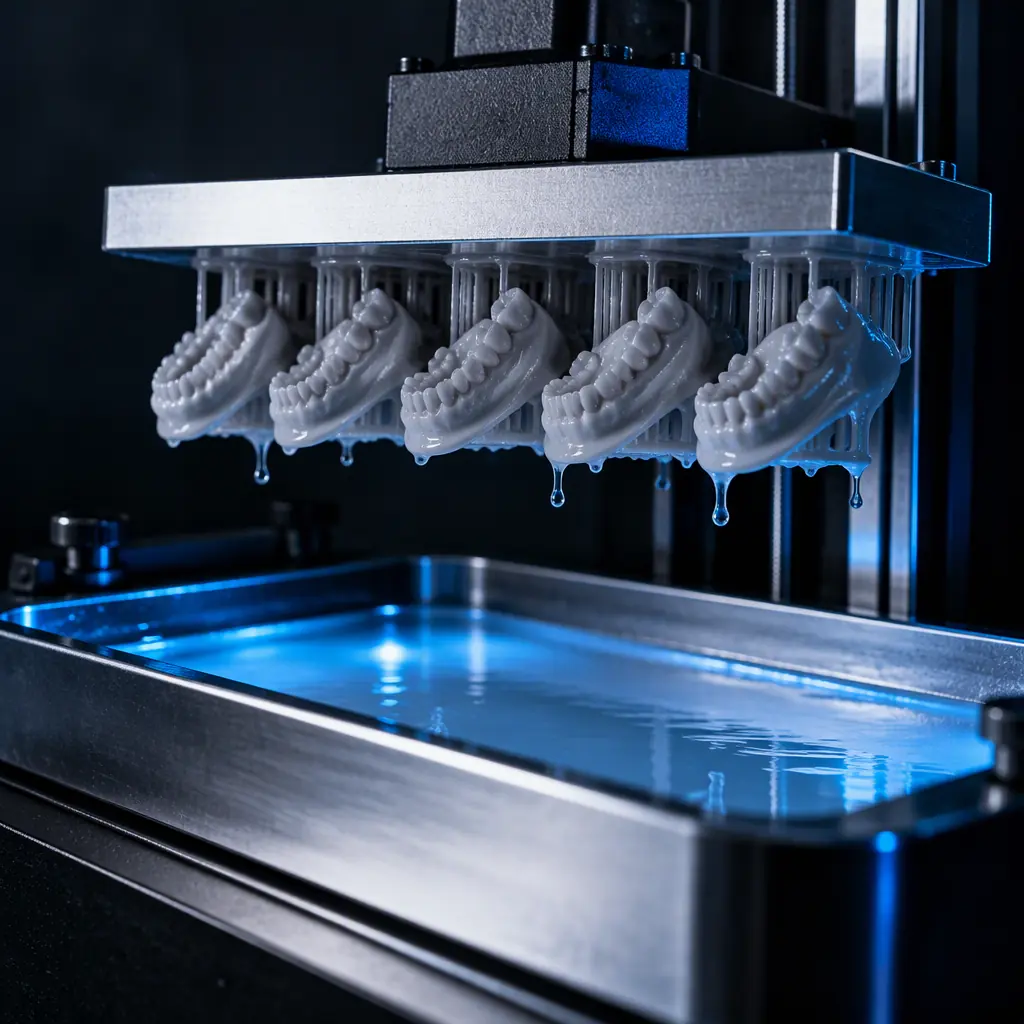

The build-plate packing decision is where the arithmetic usually goes wrong. Packing more models per plate reduces print time per model but increases the odds that a single failure costs a whole set, and it stretches the time between a print starting and the models being ready. A well-run lab prints in batches sized to the forming line's daily demand rather than to the printer's maximum plate capacity, so that models are always curing while the line is forming and never sitting idle waiting for a plate to finish. The right batch size is the one that keeps the pipeline full without building a queue of uncured models.

The per-case economics follow from the same numbers. Cost per aligner stage is dominated by the labour of the forming and trim steps, then by the resin and sheet consumed, then by printer time. That ordering matters for a lab deciding where to invest: automating the trim step or tightening the forming cycle yields more per case than a faster printer, and improving the model tolerance budget yields more still by cutting remakes. The printer purchase is the visible decision; the adjacent decisions carry more of the cost.

What the Printer Has to Deliver for This Work

The requirements a printer must meet for aligner production are specific and narrow. Resolution must be fine enough to reproduce the gingival margin and interproximal detail without softening them, because those features are what the aligner grips. Dimensional accuracy must be stable across the build volume, not just at the centre, because a lab packs models across the plate and cannot tolerate a corner model that differs from a centre model. The light engine must deliver consistent energy across the plate, because inconsistent cure across a single layer produces models that are hard in one region and soft in another, and those models behave differently at the press.

Beyond the optics, the printer's value in this workflow is in the reliability that turns an estimated daily capacity into a real one. A lab's capacity promise to its clinicians depends on the printer producing usable plates on the day the schedule calls for them. Downtime, a plate that fails mid-print, or a light engine drift all convert directly into delayed cases, and delayed cases in an orthodontic practice are appointment problems for the clinician, not just for the lab. The printer that a lab can trust to run unattended overnight at consistent dimension carries a capacity value that a faster but less consistent machine does not.

The workflow decisions that sit before and after the aligner lab are covered in our clear aligner and tray manufacturing guide, the scan-to-print integration that feeds the model printer is in the intraoral scanner workflow guide, the lab equipment and support model that keeps a practice running is in the dental lab distributor guide, the validation discipline that medical-adjacent production demands is in the validated process guide, and the broader regulatory frame is set out in the ISO 13485 distributor guide.
