3D Printer Fire Suppression for Enclosed Farms — Detection, Clean Agent and Post-Incident Rules

Thermal runaway protection is a firmware feature that cuts heater power when a temperature sensor reports a fault. It is the single most important safety function on a 3D printer, and it is entirely reactive to one failure mode in one component. It does not detect a fire that has already started, it does not extinguish one, and it does nothing at all in the window between ignition and the point where a room's occupants notice smoke.

That window is the reason enclosed print farms need suppression rather than only protection. A farm running overnight holds tens of kilograms of polymer at temperature in a room that is deliberately unattended. The unattended farm automation guide covers the labour case for running with nobody present; this guide covers the fire case against it.

What Actually Burns, and Where It Starts

Printed parts and filament stock are the fuel load, but they are rarely the ignition source. In practice, ignition in an enclosed printer comes from a small number of repeatable causes, and each one has a different signature that a detection scheme should be able to distinguish.

• Heater cartridge or thermistor failure: the classic runaway, where a failed sensor reads low and the controller drives the heater continuously. Firmware protection catches most cases when sensor wiring is intact, and misses disconnected-sensor faults on older firmware.
• Connector and terminal heating: a loose screw terminal on a bed or chamber heater develops resistance, heats, and eventually carbonises the connector housing. This starts slowly, produces a distinct smell and a gradual temperature rise at the terminal rather than at the sensor, and is invisible to firmware entirely.

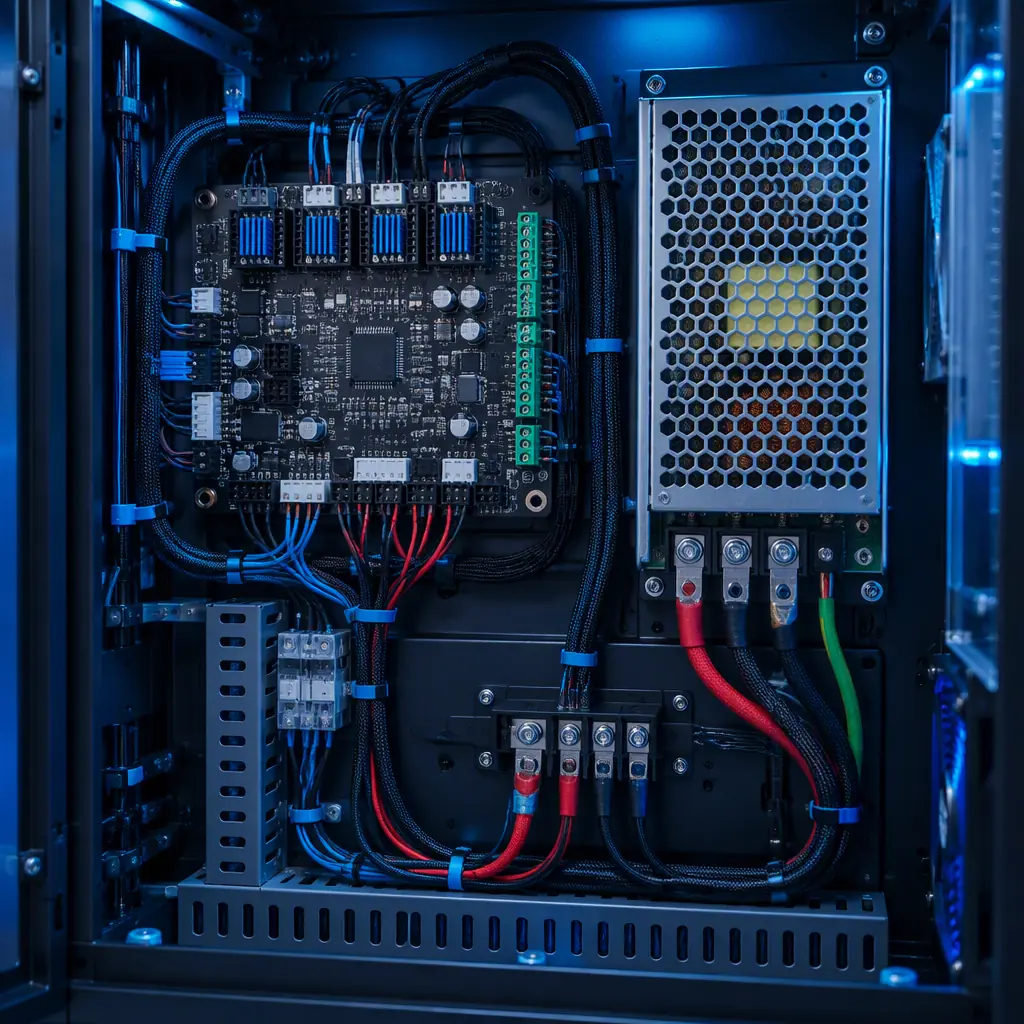

• Printed circuit board fault: a failed MOSFET, a shorted stepper driver, or a connector that arcs. This is the ignition source in most reported farm incidents and it starts inside the electronics bay, not the build chamber.
• Accumulated debris: fine polymer dust and support material fragments collect around heaters and fans. A single event does not ignite it, but it removes the thermal margin that would otherwise contain a small fault.

The practical consequence is that detection placed only in the build chamber will miss the electronics-bay ignition that is most likely to happen. Detection has to cover both volumes.

Detection: Choosing Sensors That Discriminate

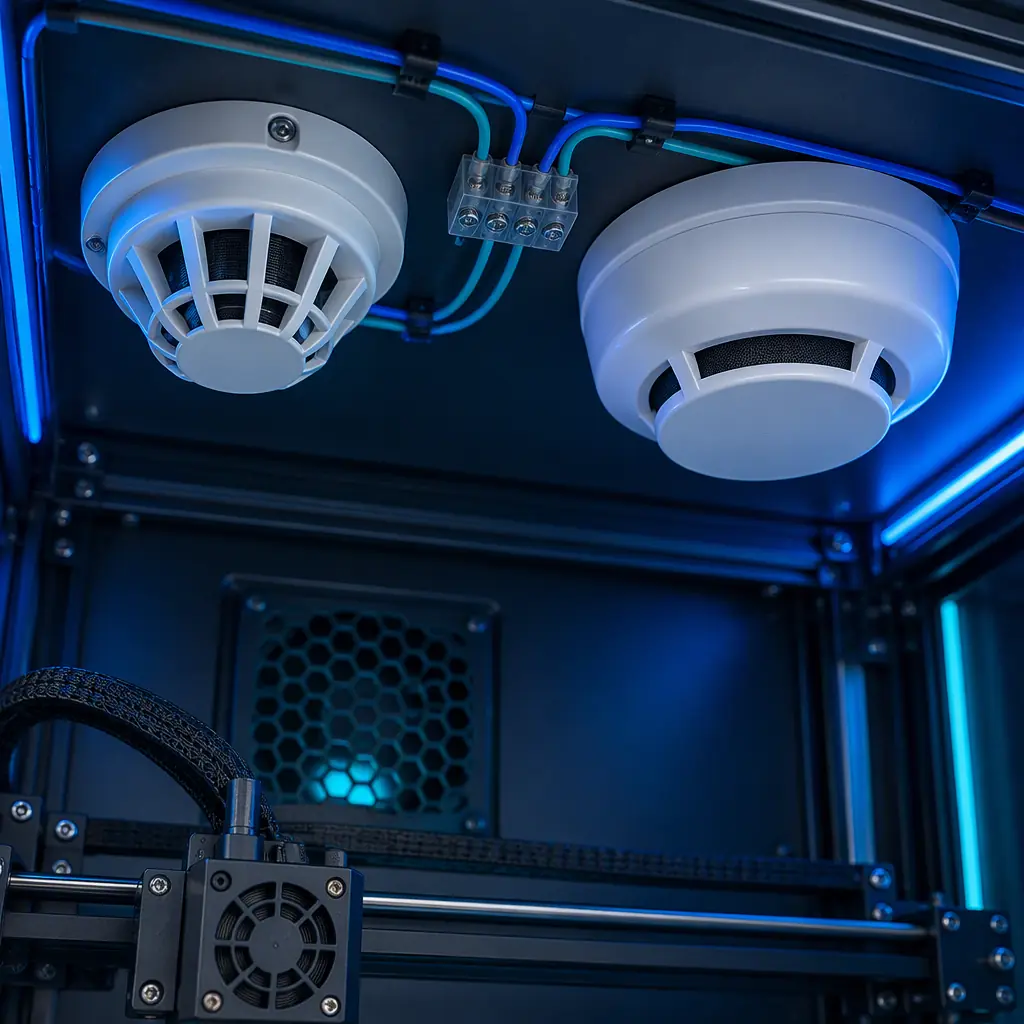

Three sensor families are in use for this application, and they fail in different ways. Point heat detectors are cheap, immune to dust, and only respond once a fire has developed enough to raise local air temperature, which in a ventilated chamber can be too late. Optical smoke detectors are fast for smouldering polymer but are prone to false alarms from the very particles a printer emits during normal operation. Air-sampling detectors pull air continuously to a remote sensing unit and are the most sensitive option, at the highest cost and with the most maintenance.

For a farm, a layered scheme is more robust than any single sensor:

The rate-of-rise element matters more than the fixed threshold in a printer chamber, because a chamber that legitimately runs at 60 degrees would sit permanently near a fixed setpoint and produce nuisance alarms. A rate-of-rise element responds to the speed of change instead, which is what a fire produces and what steady-state operation does not.

Suppression: Sizing a Clean Agent

Water and dry powder are the wrong agents for a printer room, for reasons that are practical rather than theoretical. Water destroys electronics that would otherwise be recoverable, and dry powder leaves residue that is abrasive, conductive and extremely difficult to remove from bearings and linear rails. Both convert a contained incident into a scrapped machine.

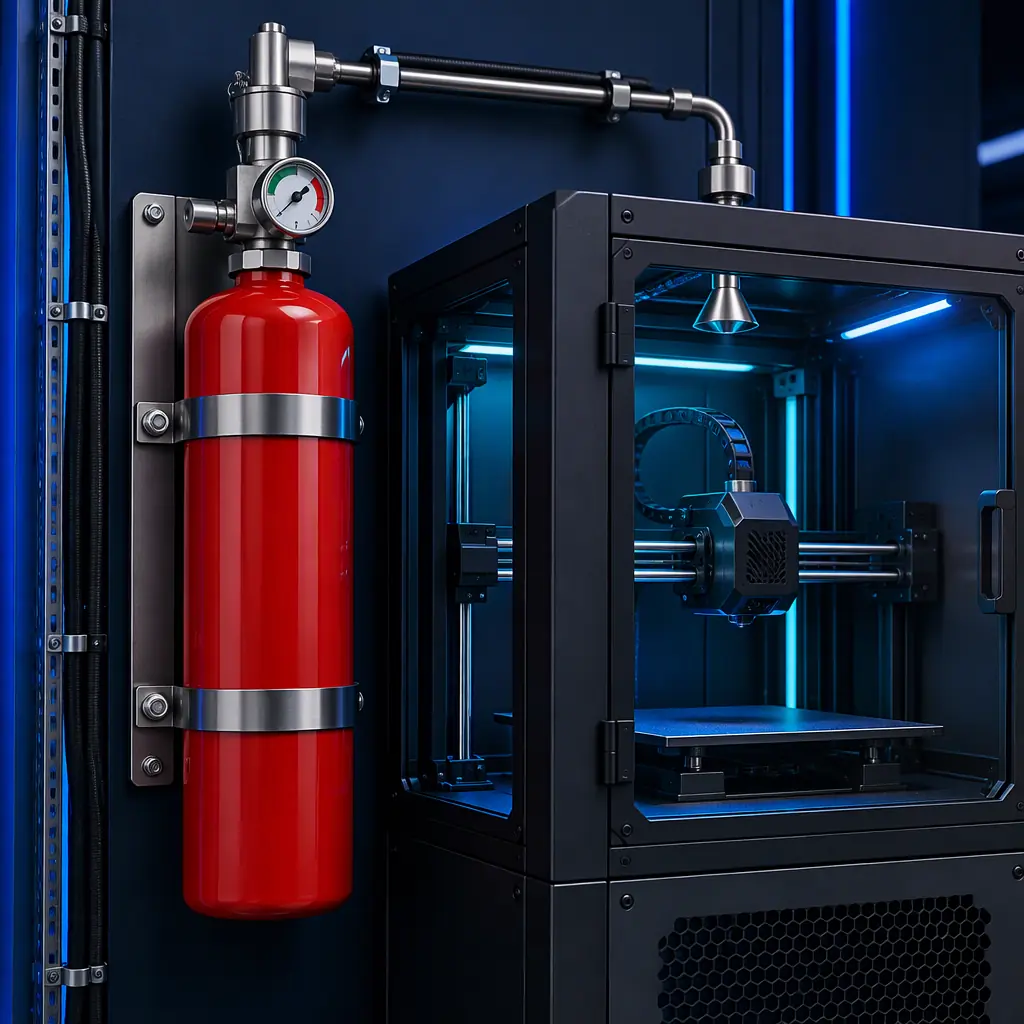

Clean agents extinguish by removing heat or interrupting the combustion chemistry without leaving residue, which is why they dominate data centres and electronics rooms. The sizing question is the one that determines whether the system works, and it is a volume calculation, not a rule of thumb.

Two points are commonly missed. First, sizing against enclosure volume rather than room volume is what makes a per-printer system affordable, and it requires the enclosure to actually be sealed enough to hold the agent for the hold time. An enclosure with a large open cable pass-through will not hold concentration and the system will fail in the one event it exists for. Second, a suppression system with no automatic machine shutdown will discharge agent into a printer whose heaters are still energised, and the fire will simply re-establish after the agent disperses.

Interlocks that must fire on discharge:

• Cut mains power to the printer through a contactor, not through software, so it works even when the controller has failed.
• Stop the ventilation fan or switch it to a sealed damper, because running the extraction fan at discharge pushes the agent straight out of the enclosure.
• Latch the enclosure closed so a person cannot open the door into a discharged chamber during the hold period.
• Raise a site alarm independent of the suppression panel, so the event is noticed even at night.

Detection and Suppression Must Not Share a Fail Mode

The most common design error is to run detection, suppression release and machine power through one controller. When that controller fails, or when it is the board that caught fire, all three functions are lost together. The wiring should be arranged so that detection is powered and monitored independently, release is triggered by a hard circuit rather than a software message, and the power cut is a physical contactor operation.

A second error is to treat the suppression cylinder as the primary defence. It is the last defence. Detector placement, terminal torque checks on high-current connections, and enclosure cleanliness are what stop incidents from happening; the cylinder decides how the incident ends if they do not.

Verification and Maintenance

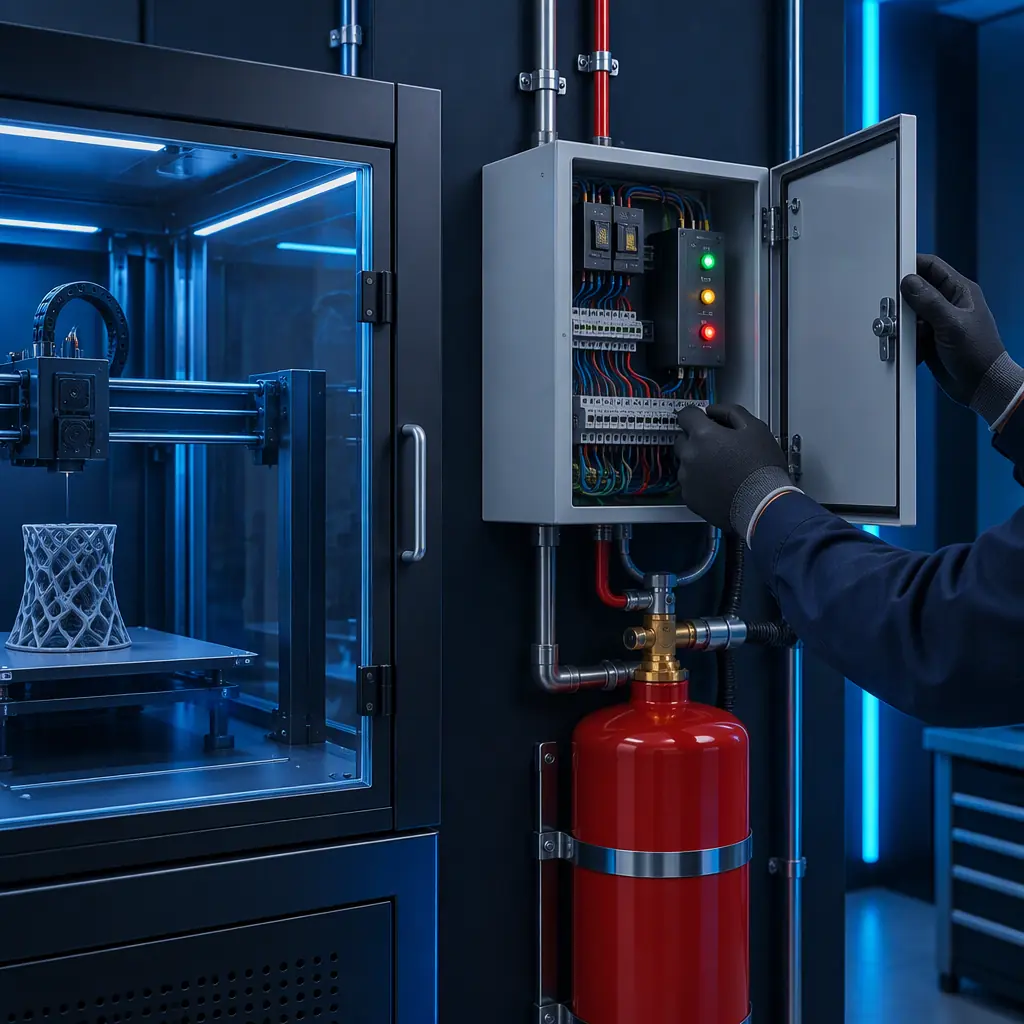

A suppression system that is installed and never verified has an unknown state. The verification routine should be written into the maintenance schedule alongside the consumable checks in the maintenance programme guide, and it should produce a record.

The terminal torque check deserves emphasis because it addresses an ignition source that no suppression design can pre-empt. A loose lug on a bed heater terminal heats cyclically, and the failure it produces is progressive and detectable long before it becomes a fire. Recording torque values at installation and re-checking them at the first service catches the units that are loosening, which is exactly the kind of fleet-level finding that a commissioning programme is designed to surface, as set out in the commissioning standard guide.

After an Incident: The Restart Rules

The fire is the beginning of the cost, not the end. The decisions taken in the 48 hours after a discharge determine whether the customer loses one machine or loses confidence in the fleet.

• Do not restart the affected machine on the same controller. If the ignition source is unknown, the board that survived is the board that will fail next. Replace the controller and the high-current wiring loom, then commission the machine as new using the dimensional and thermal tests in the commissioning standard guide.
• Assume smoke damage to filament stock. Open spools in the room absorb combustion products and print with degraded properties. Discard them rather than trying to dry them out.
• Inspect every neighbouring machine. A room-level smoke event deposits residue on linear rails and fan bearings across the fleet. These are consumable-level inspections, and the failure appears as roughness or noise weeks later rather than immediately.
• Record what the detection caught and when. The time from ignition to detection is the number that tells the customer whether the system is fast enough, and it is the input to any decision to add aspirating detection.
• Re-verify the interlocks after any discharge. A contactor that has just interrupted an inductive load under fault conditions may not perform the same way the second time.

What to Specify and What to Sell

For a distributor, fire protection is the part of the enclosure conversation that customers cannot research themselves, because it sits between the machine they are buying and the building code they are subject to. The commercially useful position is to offer a specified, verifiable package rather than a component.

The recurring service is the strongest part of the offer, because detection and suppression have to be tested to retain their value and because the testing touches the machine's high-current connections, which is service work the customer already accepts as necessary. The materials side of fire safety is a separate question and is covered in the flame-retardant and UL 94 materials guide, which addresses what a printed part does once it is in a product rather than what happens inside the machine that made it.

Bottom Line

Thermal runaway protection covers one failure mode in one component. A fire strategy for an enclosed farm has to cover ignition in the electronics bay as well as the chamber, detect it before a human notices, extinguish it with an agent that does not scrap the machine, and cut power through a physical interlock that survives the failure of the controller. Size suppression to enclosure volume and verify that the enclosure can hold concentration, because a system sized to the room is unaffordable per machine and a system in a leaking enclosure does not work. Then write down the restart rules, because the 48 hours after a discharge decide whether the customer's confidence in the fleet survives the event. The unattended-operations case that makes all of this necessary is set out in the farm automation guide, and the electrical-side protections that sit underneath are covered in the printer safety features guide.
