Live Z Offset and First-Layer Tuning — A Measurable Calibration Loop

Almost every "the printer will not print" ticket that reaches a distributor comes down to the same thing: the first layer. The machine is fine, the slicer profile is fine, and the customer is convinced the printer is defective, when the nozzle is simply sitting a few hundredths of a millimetre too high or too low. Fixing it is not difficult, but it is a measurement discipline, not a guess, and the difference between a service call that is billed twice and one that is billed once is whether the technician measures before adjusting.

This guide covers the first-layer set-up loop in the order it should actually be executed: establish a known nozzle-to-surface reference, measure the residual error, apply a measurable correction, and verify it with the same measurement that diagnosed it. It is written for the distributor's field-service team and for the customer who wants to stop re-tuning the same machine every week.

What Live Z Offset Actually Controls

The nozzle-to-bed gap is the single most consequential dimension on an FDM printer, because it sets the squash on the first extrusion. Too high and the extruded bead lays down as a rounded ribbon that touches the plate only along its crown: adhesion is weak, corners lift, and the part releases mid-print. Too low and the bead is flattened until the extruder backs up pressure, the surface is scraped and rippled, and on a textured plate the material is pushed into the valleys where it cannot be removed.

The correct gap is not a fixed number, because the right value depends on nozzle diameter, first-layer flow and plate finish. It is better understood as a target amount of squash expressed as a ratio of the bead width to the nozzle diameter. That ratio is what the technician is really tuning.

Those numbers are the reason the adjustment feels fussy. At 0.01 mm resolution, the useful range for a 0.4 mm nozzle is roughly twenty to thirty digital steps wide. Guessing inside a window that narrow is why so many customers report that the printer "worked yesterday". The correction has to be arrived at by measurement.

Probe-Based Versus Manual Reference

There are two ways to establish the reference the printer measures from, and they fail in different ways. Understanding which one a customer is running shortens diagnosis considerably.

Probe-Based (Auto Bed Levelling)

A probe, whether inductive, capacitive, magnetic, or a strain or pressure sensor in the toolhead, measures the plate at a grid of points and builds a height map. The printer then moves the nozzle in Z to follow that map. The critical point is that the probe does not measure the nozzle. It measures a point offset from the nozzle, and the vertical distance between the probe trigger point and the nozzle tip is a fixed machine constant. If that constant is wrong, every print is wrong by the same amount, in the same direction, regardless of how good the mesh is.

Movement of the toolhead mounting, a nozzle changed without re-checking the constant, or a warped strain-gauge mount will all shift the probe-to-nozzle offset. The height map can be perfect and the machine still prints badly.

Manual Reference

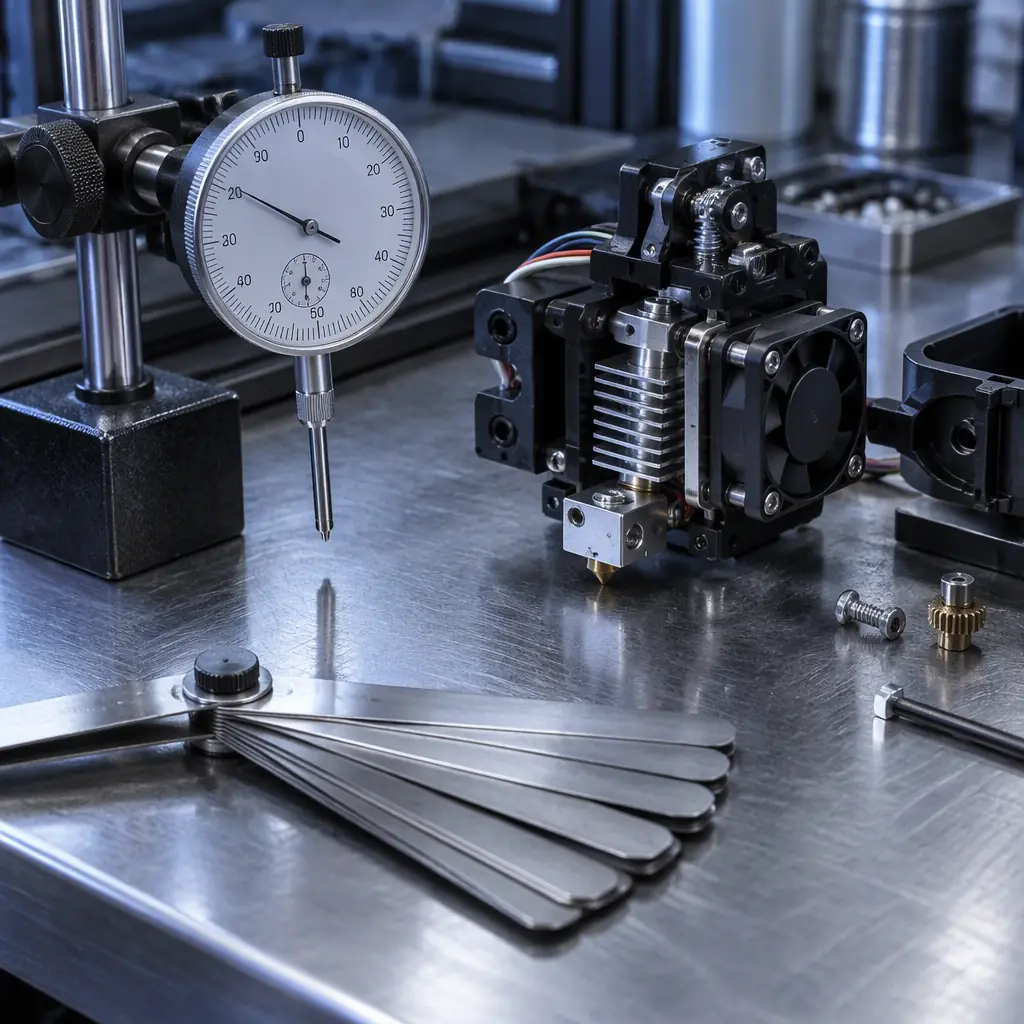

Manual levelling establishes the gap directly with a feeler gauge, a sheet of paper, or a calibrated shim under a cold or hot nozzle. It is slower and it is only as accurate as the operator, but it has no hidden constant: what is measured is the actual gap. In a service context a manual reference is valuable as an independent cross-check, because if manual and probe disagree, the probe-to-nozzle offset is the suspect.

The Measurement Loop

The loop is four steps and it should always be run in full. Skipping the last step is what produces repeat service visits, because the technician adjusts until it looks right rather than until it measures right.

Step 1: Print the Calibration Pattern

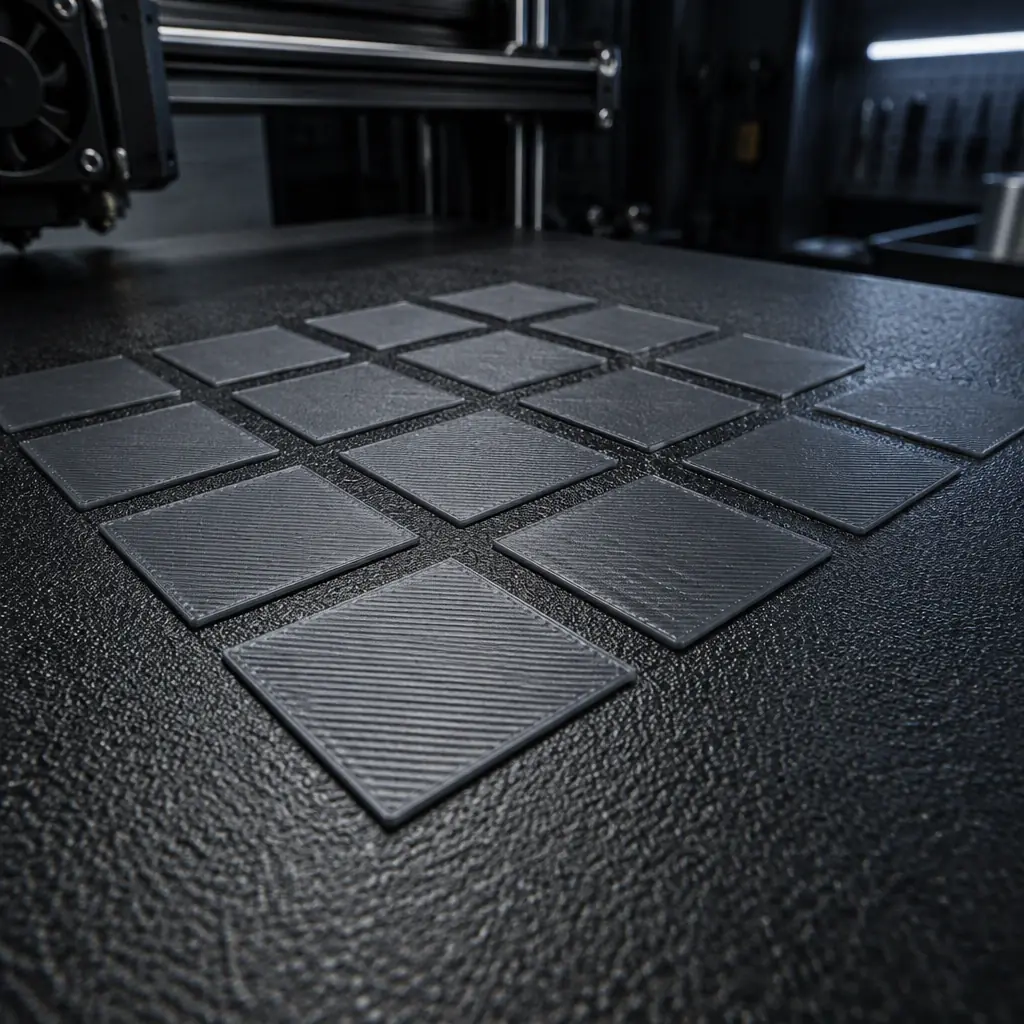

Use a single-layer pattern that covers the whole plate rather than a single square in the centre. A grid of separated squares or a full-plate patch, printed at the customer's normal first-layer settings, reveals both the average error and any across-plate gradient in one print. Print it at the same temperature, flow and speed the customer actually uses, because first-layer results are sensitive to all three.

Step 2: Measure, Do Not Look

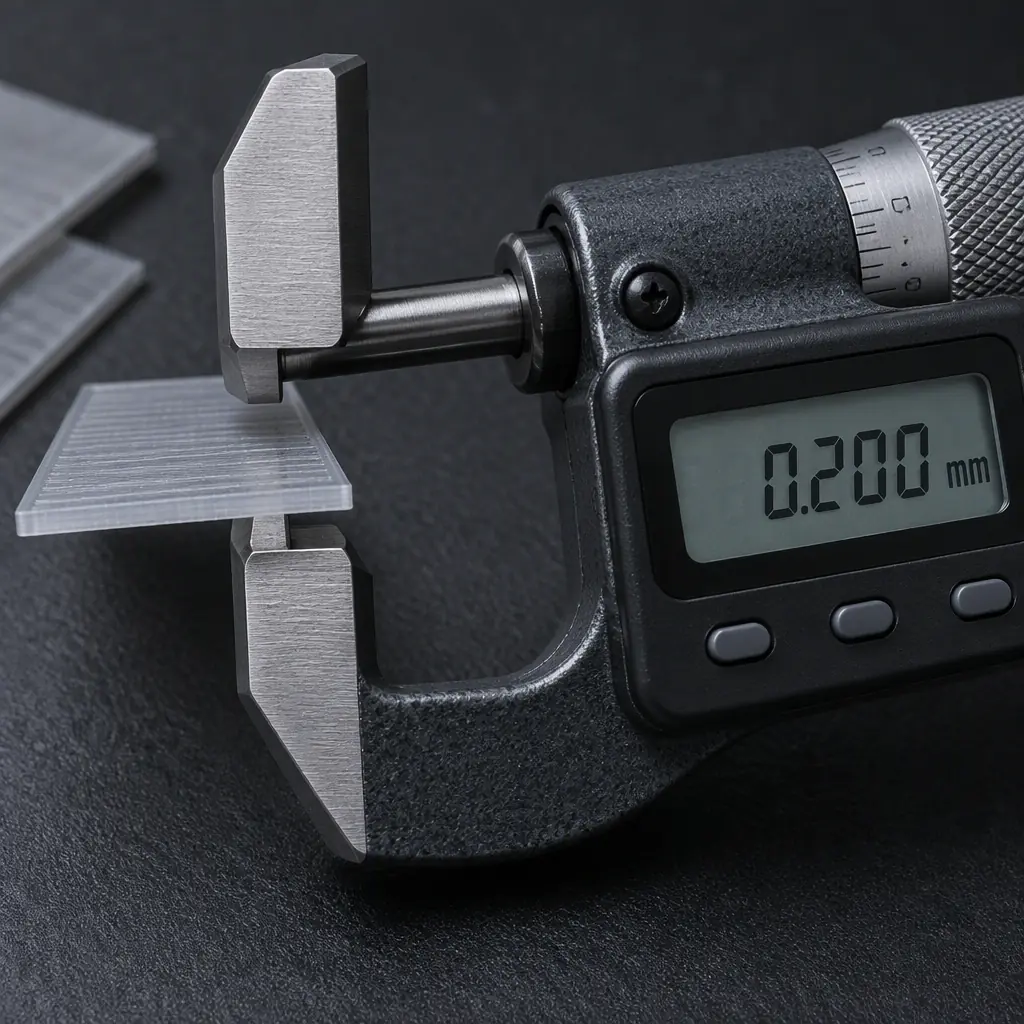

Reading the layer by eye is the weakest link in the chain and it is where most field technicians go wrong. Buyers and technicians misjudge squash consistently, and the perception also depends on plate colour and lighting. Instead, measure the actual layer thickness with a micrometer across several points of the pattern and record the spread.

Step 3: Apply a Measured Correction

The measured error converts directly into an offset change at the printer's resolution. If the layer is 0.04 mm too thick, the nozzle is 0.04 mm too high and the offset should move down by 0.04 mm, or four steps at 0.01 mm. Adjust once by the calculated amount rather than nudging repeatedly and re-printing, because each re-print introduces its own measurement noise and the operator loses track of the total applied.

Step 4: Verify With the Same Measurement

Re-print the pattern and re-measure with the micrometer at the same points. The target is a layer within ±0.03 mm of nominal and a spread no worse than 0.06 mm across the plate. If the average is now correct but the spread is still wide, the offset work is done and the problem has moved to the mesh or the mechanics, which is a different repair.

First Layer as a Service Line

For a distributor, first-layer tuning is the rare maintenance task that is both high-frequency and genuinely chargeable, because it is a measurable calibration with a documented result rather than an opinion. The mistake is to sell it as a one-off call-out. The stronger structure is a commissioning calibration at installation, plus a periodic re-check as part of a maintenance plan.

• Installation commissioning: set and document the probe-to-nozzle constant and the first-layer offset, with the measured layer thickness recorded on the install sheet.
• Consumable changes: any nozzle change invalidates the offset. Require a re-measure as part of the nozzle replacement procedure, which links this work to the maintenance guide.
• Periodic re-check: include a first-layer verification in the annual plan alongside the wider service schedule in the annual service contracts guide.
• Training: teach the customer the measure-and-calculate loop, so the routine re-tuning is self-service and the paid work is the harder diagnosis.

The revenue logic is that a distributor who trains the customer on the routine loop keeps the difficult cases, and a distributor who does not ends up driving to site for a problem that is four digital steps wide.

Where the Loop Breaks Down

Three failure patterns account for most repeat visits, and each has a specific fix.

Offset Drifts Between Prints

If a machine holds its layer thickness for days and then loses it, the offset is not the problem; something mechanical is moving. The usual suspects are a loose toolhead or hotend mount, a strain-gauge or probe mount that shifts with heat, or a Z coupling that slips. Re-measure the probe-to-nozzle constant cold and again hot. If the two differ by more than about 0.03 mm, thermal movement in the mount is the root cause and re-tuning will not hold.

Correct in the Centre, Wrong at the Edges

This is a mesh or plate problem, not an offset problem. Check that the mesh is actually being applied, that the probe grid extends to the plate edges rather than a small central region, and that the plate is not dished. A warped plate should be replaced rather than compensated indefinitely, because the compensation stress shows up again on tall parts.

Textured Plate Behaving Differently

A textured PEI plate normally wants a slightly larger gap than a smooth one, because the measurement reference is the peaks rather than the mean surface. Setting the same offset on both plate types produces a too-low condition on the textured plate. Store the offset per plate and switch it with the plate, and note the difference on the install sheet so the customer does not lose it.

Bottom Line

First-layer problems are a measurement discipline, not a feel. Establish a known nozzle-to-surface reference, print a full-plate pattern, measure the layer with a micrometer rather than the eye, apply the calculated correction once, and verify with the same measurement. If the average is right but the spread is wide, the fault has moved to the mesh or the mechanics. For a distributor, the value is in documenting the probe-to-nozzle constant at commissioning, requiring a re-measure on every nozzle change, and training the customer on the routine loop so the chargeable work stays on the hard cases.
