Why Electronic Enclosures Are an EMC Test Waiting to Happen
Every modern electronic product is subject to electromagnetic compatibility — the requirement that it neither emit excessive interference nor be unduly affected by interference from outside. Enforce it at the product level and you will find that the enclosure is doing a lot of the work. A metal die-cast or sheet-metal box shields well because it is continuous and conductive; a plastic housing shields because it does not, which is why the electronics industry is full of internal metal shields, conductive tape and sprayed conductive coatings retrofitted onto plastic parts.
These retrofit steps are labour-intensive and inconsistent, and they add a serial production step that is hard to control. Printing the conductive structure directly instead removes the retrofit. For a distributor the opportunity is to move up the value chain: supply the enclosure, the seam, the gasket and the mounting interface as one printed, conductive build. For the wider electronics-tooling picture, our electronics / SMT tooling guide frames how printed parts flow into an electronics production line.
The Conductive Material Landscape & Surface Resistivity
Conductive 3D printing is dominated by filled polymers. The fillers are carbon black, graphite, and increasingly copper or nickel-coated particles; the goal is to push the printed part's surface resistivity low enough to act as a shield. Pure polymers are insulators — surface resistivity in the range of 1012–1016 Ω/sq. A conductive fill drops that by orders of magnitude, and the target depends on the application. Static-dissipative parts only need 106–109 Ω/sq, while genuinely shielding RF-sensitive enclosures are typically engineered into the range of 100–103 Ω/sq, where the number of conductive particles actually forms a percolation network.
The filler decision matters as much as the polymer. Carbon-filled filament is cheap, stiff, and good for ESD and static-dissipative work, but its shielding attenuation is modest. Copper- or metal-filled filament costs more and is harder to print — the metal particles are abrasive, so it demands a hardened steel nozzle — but it delivers far better attenuation for a demanding radio or sensor enclosure. For the base material logic, our engineering filaments guide and our carbon-fibre filled filament guide are the two reads to reference.
Faraday-Cage Design Rules for a Printed Enclosure

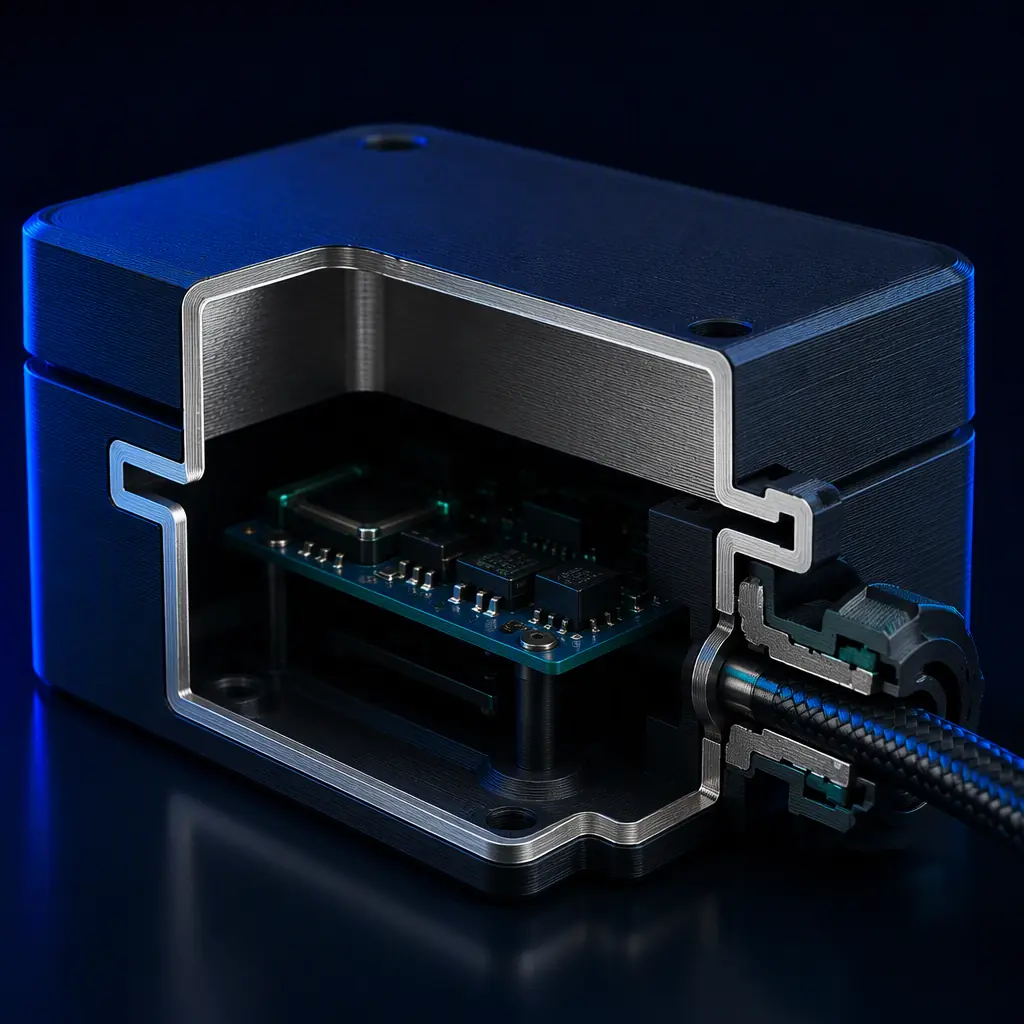

A shield is only as good as its largest opening. A Faraday cage attenuates an incident field because induced currents cancel it inside — until an aperture lets the field couple through. For a printed enclosure this translates into hard design rules: keep seams short and overlapping, avoid long slots, and never leave a continuous thin gap between the lid and the base. Where a cable must exit or a display must show through, keep the aperture far below the wavelength you are shielding against and surround it with a conductive neighbourhood.
The other lever is wall thickness and conductivity. A thicker, higher-conductivity shell attenuates more, which is why shielding enclosures are usually built with a minimum 1.2–2.0 mm conductive wall and a generous overlap on the parting line. Because the conductive path runs through the printed part itself, the layer-to-layer bond becomes part of the shield — so wall orientation and infill percentage matter to the electrical result, not just to strength. For the enclosure geometry and hardware side, our enclosure / modification guide is the relevant read.
Gaskets, Seams & Contact Points
The weak points of any printed shield are the mating surfaces. A correctly designed enclosure is not just a shell; it is a set of conductive contacts that press together. This means a conductive gasket sits in a machined or printed groove, a spring-contact arrangement is built into the lid, and any PCB mounting points double as a grounding path to the shell. Without these, the enclosure is conductive but not sealed, and the leakage at the parting line will undo the attenuation you paid for.

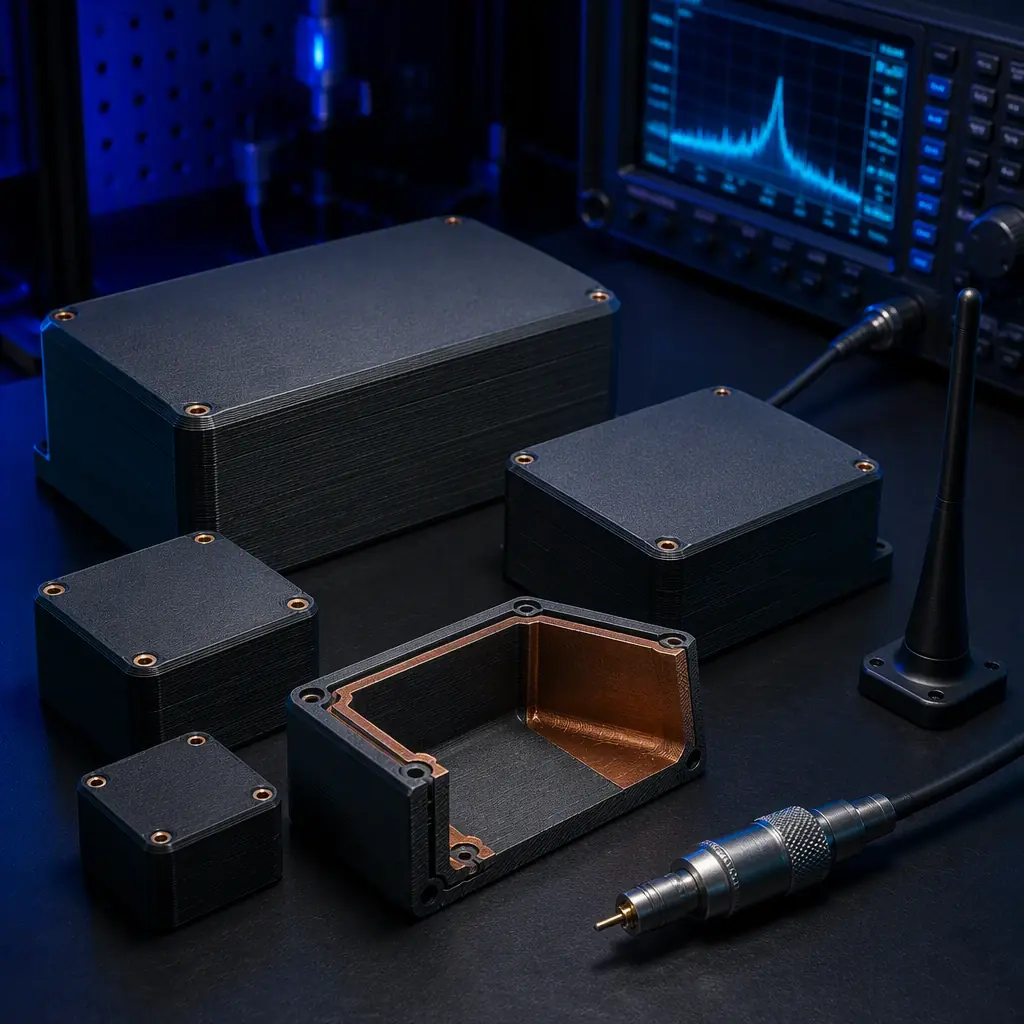

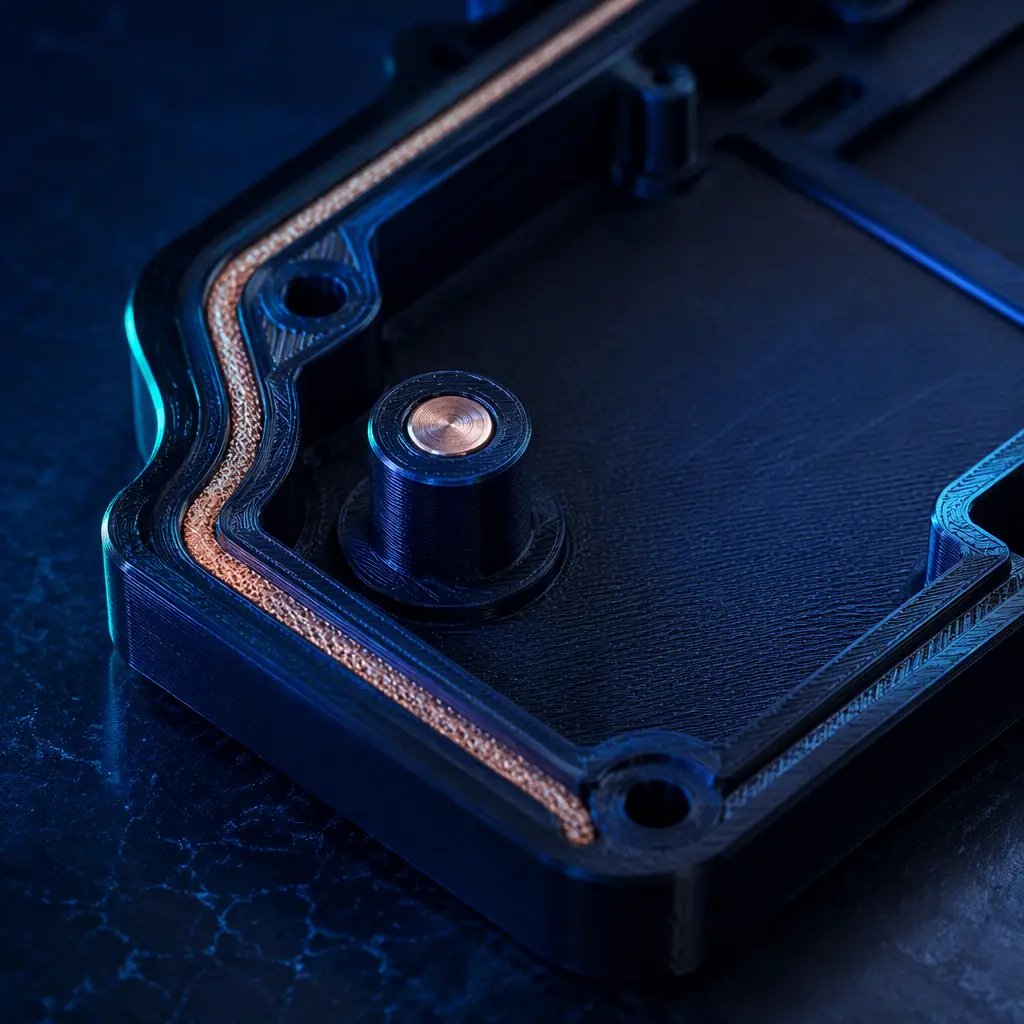

Printed conductive gaskets and contact bosses are a genuinely differentiator offering, because they remove the separate conductive-tape and die-cut-gasket step that adds cost and inconsistency to a standard plastic build. A printed elastic gasket that is also filled to be somewhat conductive, or a printed wall profile that compresses a pressed-in rubber seal, both work in practice. For joining and sealing adjacent parts, our adhesives, sealants & coating guide and our print surface & build plate guide cover the bonding and bedding decisions.
Testing & Validation for the EMC Report
Shielding claims have to be proven, and that is where the credibility of the sale lives. The relevant tests are radiated emissions and radiated immunity, run in an anechoic chamber or a screening room to standards such as CISPR 32 (multimedia), CISPR 25 (automotive) or the applicable FCC Part 15 limits. The customer will not accept a supplier's say-so; they need a measurement, ideally across the frequency range that matters for their product — often 30 MHz to 6 GHz for a consumer wireless device, or higher for a radar or instrumentation product.
A distributor can get ahead by quoting a surface-resistivity number and, where available, an attenuation figure (in dB) for the exact material and wall build they are proposing. That single datapoint is what separates a credible shielding supplier from a print shop guessing. Predictive numbers, plus a well-filed build profile, let the customer go to their first EMC pre-scan with reasonable confidence instead of burning a test session on a redesign. For the tolerances and compliance logic that underpin a defensible part, our dimensional accuracy guide and our certification & compliance guide are the references to hand over.
Distributor Economics: The Shielding Account
The shielding account is attractive because it is both a prototype win and a production run. A customer begins with one or two EMC-failing enclosures, gets a printed conductive version that passes pre-scan, and then orders the same geometry in low-volume production. The conductive filament is a premium material, the enclosure is a higher-value part than a simple fixture, and the hardening-nozzle requirement means the customer is buying a specifically configured machine. For the recurring and margin mechanics, our consumables & accessories bundling and our portfolio & market-segment strategy are the two reads to reference.
The entry plan: (1) Run a hardened-steel-nozzle printer and keep conductive carbon and metal-filled filament in stock. (2) Build a demo set: a sectioned conductive enclosure, a printed gasket and a straight line of the conductive material used. (3) Go to electronics firms, telecom, industrial-control and test houses, and lead with the shielding and attenuation data, not the price. (4) Convert the pass into a recurring, low-volume shielded product run. For the industries that buy the most shielding work, our telecom / 5G guide and our aerospace & defense guide are the natural verticals to open.
Electromagnetic compatibility is a compliance gate, and the enclosure is where it is won or lost. At Precise3D, our hardened-nozzle, wear-resistant FDM platform with a stocked conductive carbon and metal-filled filament line is set up for shielded enclosures, printed gaskets, grounding bosses and EMC-tested prototypes — printed at a fraction of the lead time and cost of a die-cast or coated metal build.
