A worn nozzle does not fail. It degrades, slowly enough that the customer adapts to the symptoms instead of reporting them, and by the time the machine is brought in the wear is severe and the explanation is a single inexpensive part. For a distributor this is the most under-used recurring revenue line in the consumables catalogue, because the replacement interval is predictable, the part is cheap, and the customer will not identify the problem without being shown how to measure it.
This guide covers what actually wears, how to measure it without laboratory equipment, what the measurements mean, and how to set a replacement interval that a customer will accept as reasonable rather than as an upsell.
What Actually Wears

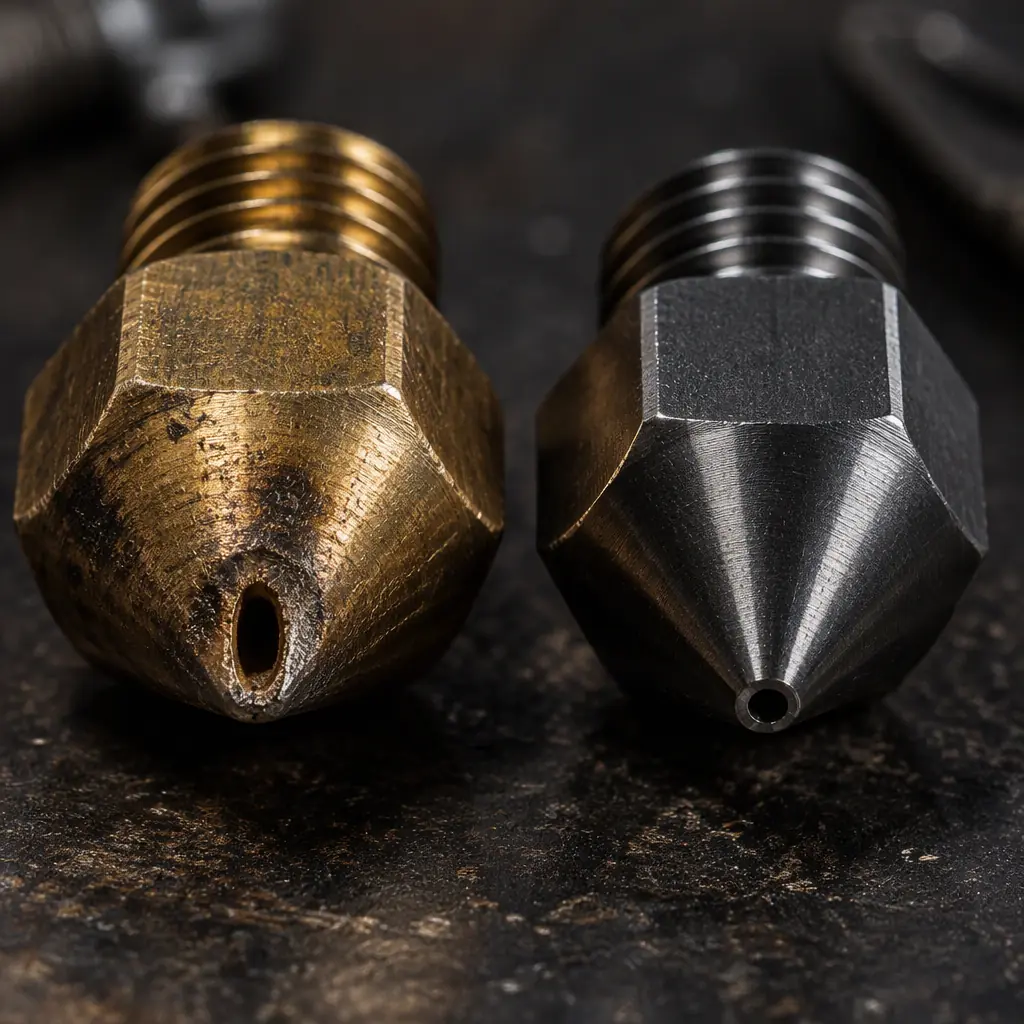

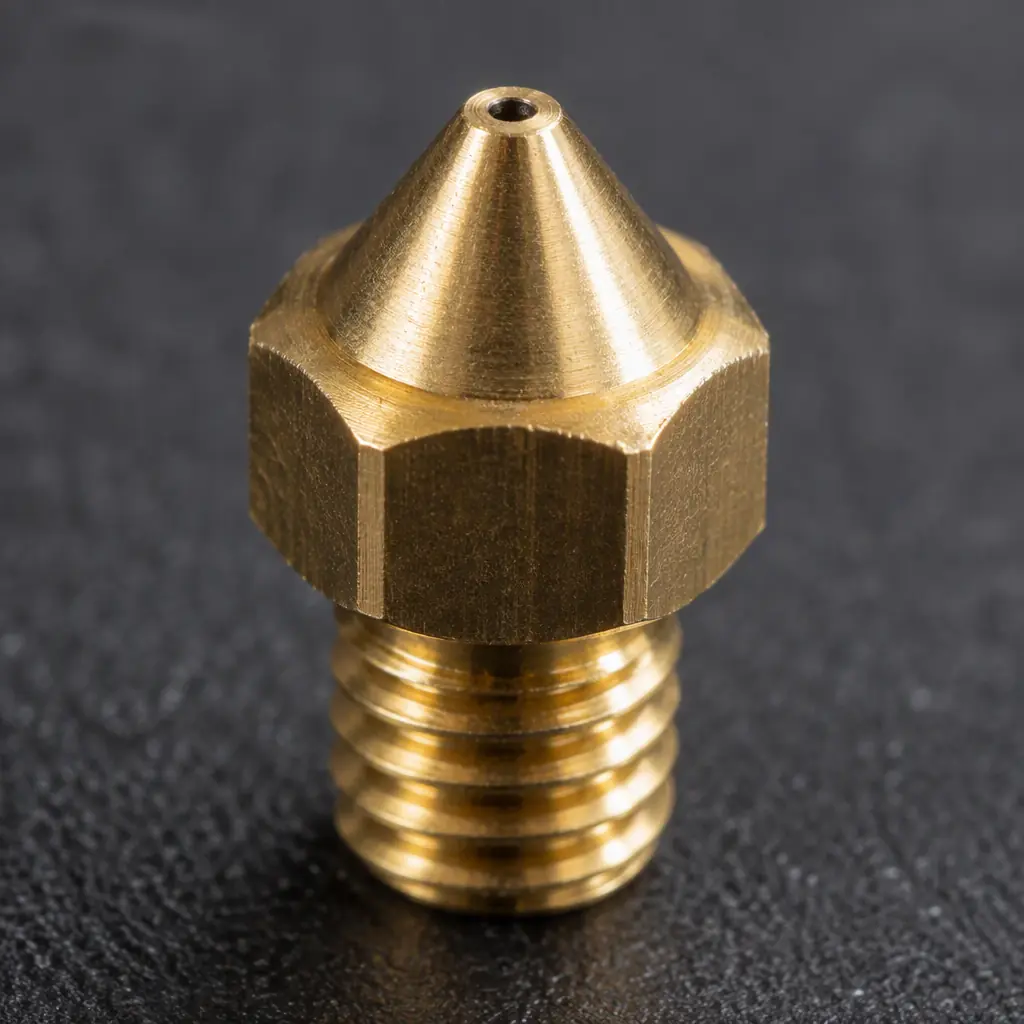

The nozzle orifice is the wearable element, and it does not wear evenly. Abrasive material erodes the bore, opening the diameter and, on a round hole that was drilled or reamed, rounding it into an oval. The result is not a nozzle that stops extruding but one that extrudes a wider, less controlled bead, and every downstream consequence follows from that.
The material being printed decides the wear rate more than any other variable, and the spread is large enough that a single replacement interval across all materials is meaningless.
Plain PLA, low pigmentVery low wear
PETG, standardLow wear
ABS / ASALow-moderate wear
Carbon-fibre / glass-fibre filledSevere wear
Metal-filled filamentsSevere wear
Glow-in-the-dark / ceramic-filledSevere wear
Brass nozzle life, abrasive filament0.2 - 1.0 kg
Hardened steel life, abrasive filament5 - 20 kg
Ruby-tipped life, abrasive filament20 - 50+ kg
The factor separating brass from hardened steel and ruby is one to two orders of magnitude. That is why the correct recommendation is usually not "replace more often" but "match the nozzle material to the filament", and why a farm that has standardised on brass and then started running filled material will burn through nozzles at a rate that looks like a quality problem.
Measuring Wear Without a Laboratory
Nozzle wear can be measured in the workshop with tools the customer already owns, and the measurement that matters most is the change from a known-new baseline rather than an absolute figure.
The Pin Gauge or Drill-Shank Test

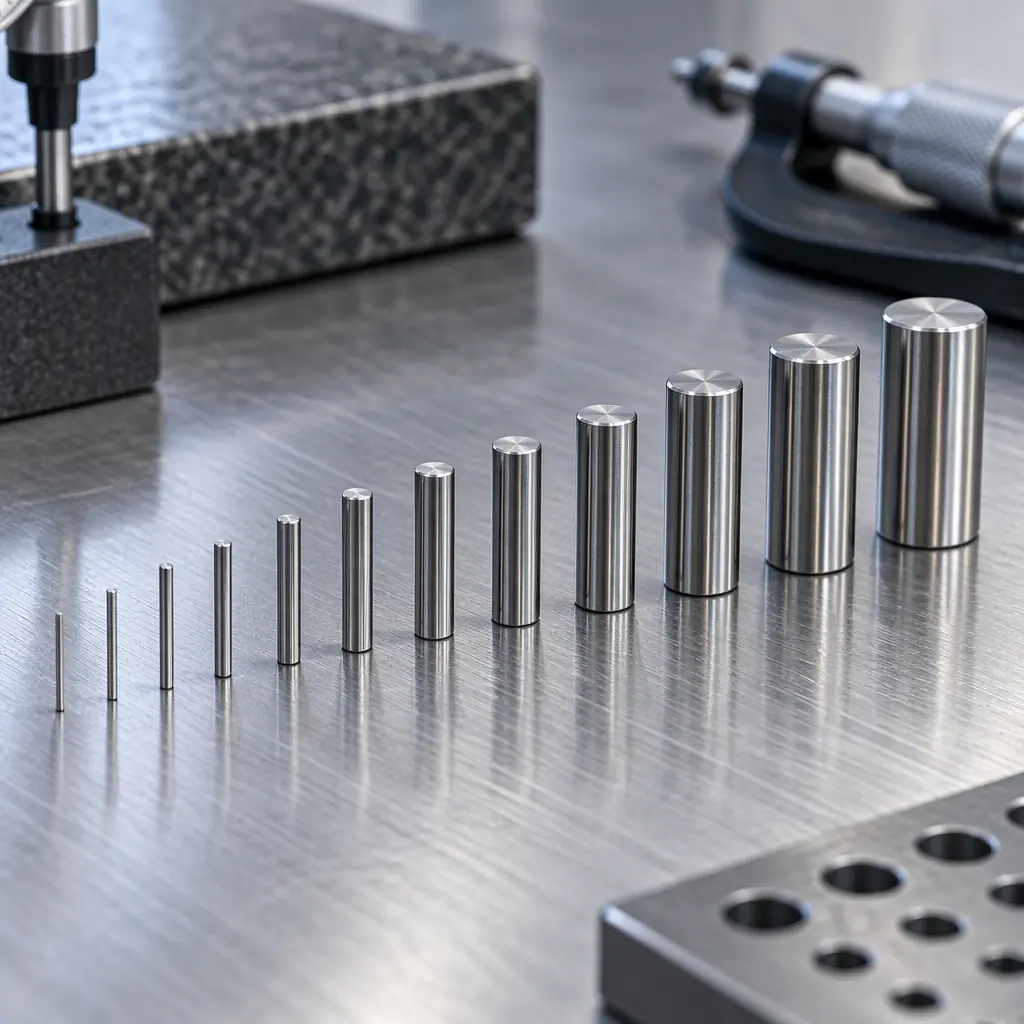

The cleanest field method is to insert a gauge pin or the shank of a drill bit of the nominal orifice size into the cold nozzle. A new 0.4 mm nozzle accepts a 0.4 mm pin with no perceptible play. Once the pit has opened to 0.45 or 0.5 mm, the nominal pin drops in loosely and a larger pin starts to enter. Keep a small set of pins in 0.05 mm steps and the test takes ten seconds with the nozzle off the machine.
0.4 mm pin, firm fit in a 0.4 nozzleWithin specification
0.4 mm pin loose, 0.45 not enteringMild wear
0.45 mm pin entersReplace for dimensional work
0.50 mm pin entersReplace, out of tolerance
Orifice visibly ovalReplace regardless of pin fit
The Extruded Bead Test

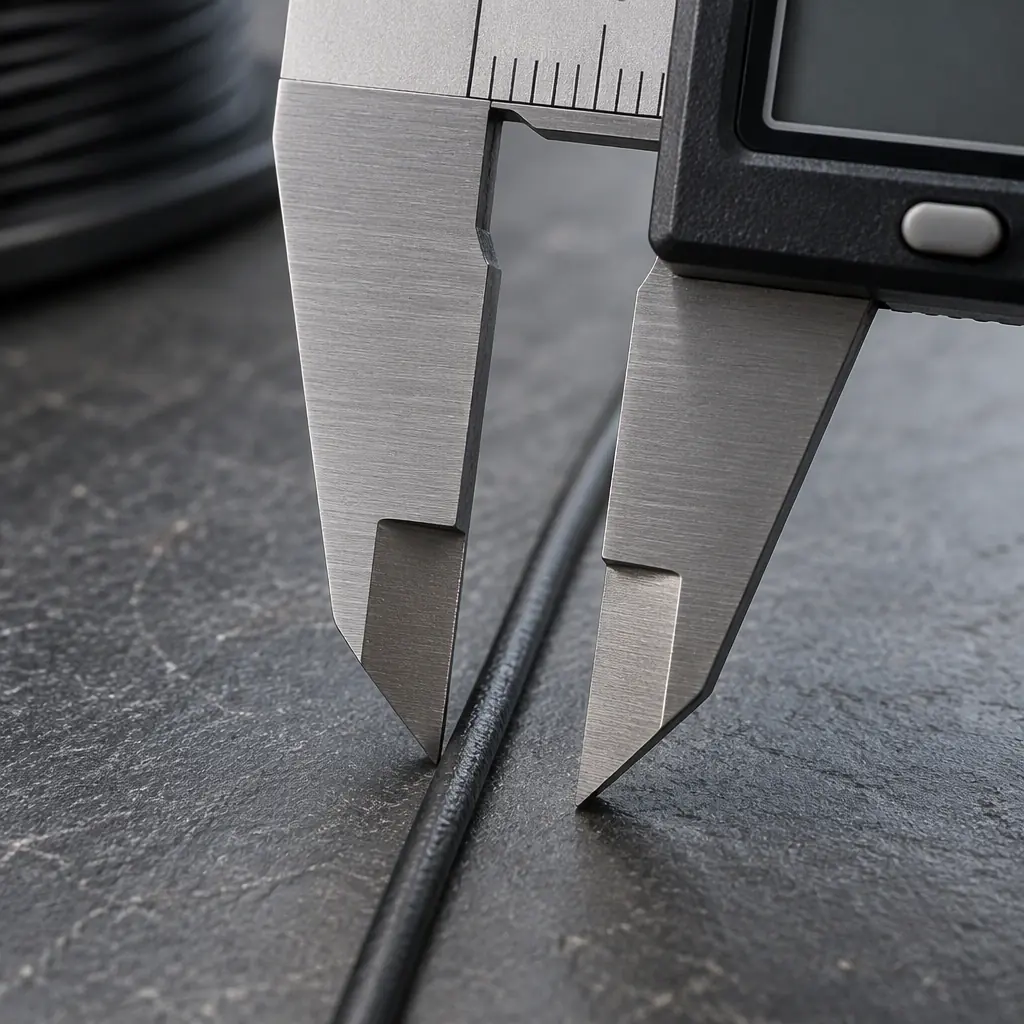

A second field method, which needs no gauge, is to extrude a short single line at a fixed flow and speed and measure the bead width with a caliper. A new nozzle produces a bead close to the slicer's expectation; a worn nozzle produces a wider, flatter bead whose width no longer responds normally to flow changes. Measure the same line on a known-good machine and compare, because the absolute number depends on too many settings to be a reliable standard on its own.
The Symptom Cluster
Wear rarely presents as one symptom. It appears as a cluster, and the cluster is diagnostic even when the customer has not measured anything.
Diagnostic question: "Has the customer reported that hole diameters in printed parts have drifted larger, or that fine detail is suddenly blobby, without any slicer change?"
What you are looking for: a simultaneous widening of holes, loss of fine detail, and a need to reduce flow to stop over-extrusion, with the slicer profile unchanged, is the signature of an enlarged orifice. If the customer has been compensating by lowering flow for weeks without knowing why, the nozzle is the explanation.
Consequences Beyond the Nozzle
Wear is worth fixing because of what it does to everything downstream, and framing it that way is what makes the recommendation land with a customer who resists replacing a part that still works.
- Dimensional drift: holes print undersized on a good machine and oversized on a worn one. A customer chasing an intermittent tolerance problem on the dimensional accuracy guide may be diagnosing a slicer when the fault is the orifice.
- Compensated settings: the customer lowers flow to hide the symptom, which then under-extrudes everywhere the nozzle is briefly back in specification, creating a moving target.
- First-layer change: a widened orifice alters first-layer bead width, which then interacts with the first-layer tuning loop and looks like a Z offset problem.
- Surface quality: fine features and top surfaces degrade before any measurable dimensional change, because the bead edge is less controlled.
Setting a Replacement Interval the Customer Accepts
A replacement interval proposed as a plain number invites resistance. Proposed as a consequence of measured wear and the economics of a scrapped print, it is normally accepted without argument.
Tie the Interval to Kilograms, Not to Time
Interval should be stated as mass of abrasive filament processed, not as months, because wear tracks material throughput. A farm running filled material daily and a lab running it monthly have nothing in common on a calendar basis. Publish a per-material interval: for brass, replace after the specified mass of filled filament; for hardened steel, the much larger figure.
Sell the Upgrade Before the Failure
The better commercial move is not a faster replacement cycle but the correct nozzle material for the application. A customer running filled material on brass should be moved to hardened steel or a ruby tip, which drastically extends the interval and converts a repeated small annoyance into a single justified purchase. The 0.2 to 1.0 kg brass life against 5 to 20 kg for hardened steel is the whole argument.
Include the Re-Calibration
Every nozzle change invalidates the first-layer offset, so the replacement is a small service event rather than a part swap. Bundling the replacement with a first-layer re-measure turns a consumable sale into a service line, and it prevents the customer concluding that the new nozzle is defective when the first layer shifts.
Bottom Line
Nozzle wear is not a failure, it is a slow enlargement of the orifice that presents as drifting hole sizes, lost detail and a customer compensating with flow settings. Measure it with a pin gauge or an extruded bead against a known-good baseline, and treat an oval orifice as a replacement regardless of pin fit. Set the interval in kilograms of abrasive material rather than months, upgrade brass users to hardened steel or ruby when they run filled filament, and always include the first-layer re-calibration with the change. It is the smallest part on the machine and one of the most reliable recurring revenue lines a distributor has.
