3D Printer Enclosure Temperature Control: Active Chamber Heating for ABS, Nylon & PC — The Distributor's Thermal Management Guide

Every 3D printer distributor eventually hits the same wall: a customer calls saying their ABS parts are curling off the bed, their Nylon prints are delaminating mid-job, and their polycarbonate prototype looks like a potato chip. The printer is fine. The filament is dry. The bed is leveled. But the enclosure temperature is 28°C — barely above ambient — and the material is cooling 250°C in under three seconds.

Enclosure temperature control is not a premium feature for high-end printers. It is a fundamental requirement for any printer sold with engineering filament capability. Distributors who understand chamber heating physics — and can articulate it to customers — close deals that commodity resellers lose. This guide gives you the technical knowledge and sales framework to dominate the enclosed printer category.

The Physics of Warping: Why Engineering Materials Demand Temperature Control

Thermoplastics contract as they cool. The rate of contraction is expressed as the coefficient of thermal expansion (CTE) — measured in μm/m·°C. PLA has a relatively low CTE of approximately 41 μm/m·°C. ABS is 73-108. Nylon 6 is 90-110. Polycarbonate is 65-70. When extruded at 250°C and cooled to 25°C in open air, an ABS part experiences a 225°C temperature swing across each layer — enough differential contraction to generate MPa-level internal stress.

The result is well-documented but poorly understood by end customers:

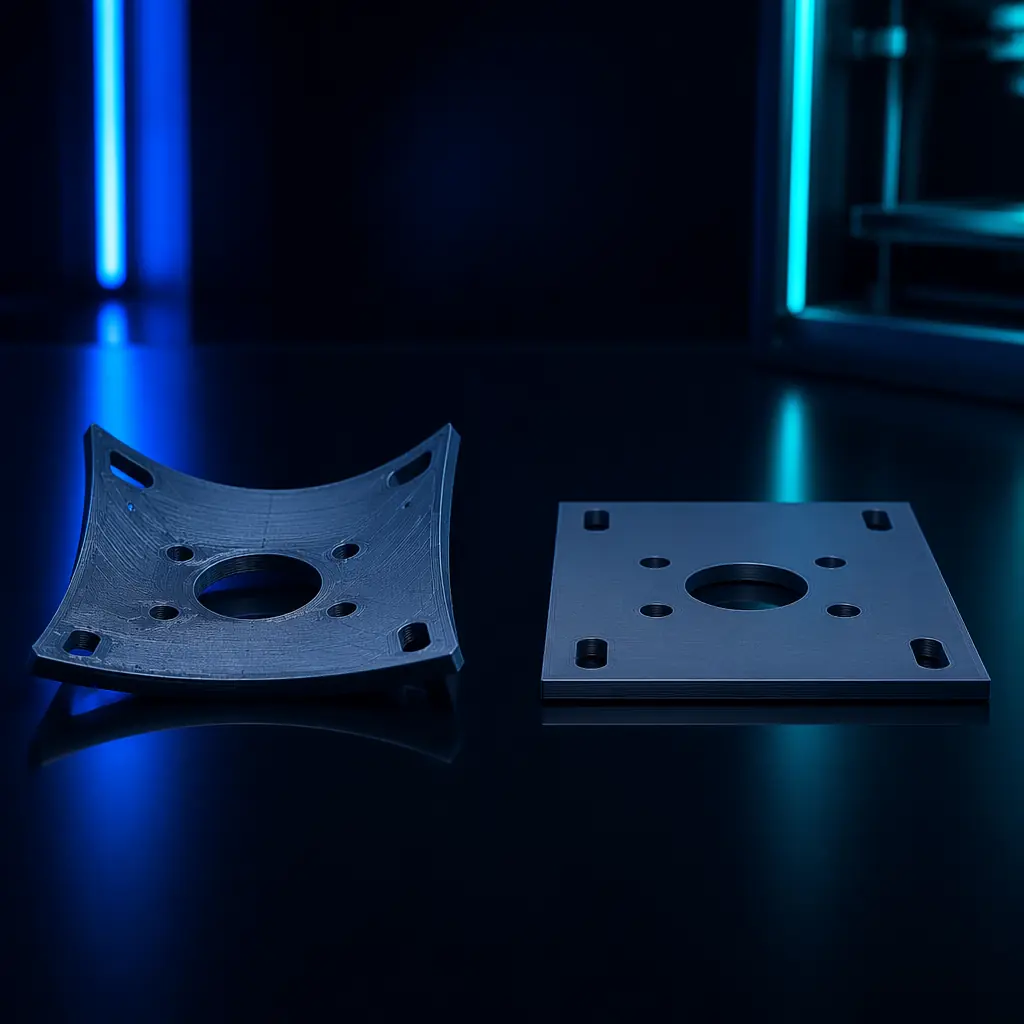

• Warping: The bottom layers cool faster than the upper layers, contracting and pulling the corners of the print upward from the build plate. ABS parts longer than 100mm will curl 2-5mm without chamber heating.
• Delamination: When layer N+1 is deposited on layer N that has already cooled below its glass transition temperature (Tg), the bond is weak — the polymer chains don't interdiffuse across the layer boundary. The part splits under load.
• Dimensional inaccuracy: Non-uniform cooling creates anisotropic shrinkage. A 200mm ABS part printed at 28°C chamber temperature can be 0.8-1.5mm undersized in XY — outside tolerance for any engineering application.

The physics is straightforward: every degree of chamber temperature you add reduces the cooling rate and gives polymer chains time to relax internal stress. When the chamber temperature stays above the material's Tg, layer adhesion approaches bulk material strength. When it drops below, interlayer bonding is the weakest link.

Active vs Passive Chamber Heating: The $200 Question

The most common misconception among distributors — and the one that generates the most returns — is conflating "enclosed" with "heated." They are fundamentally different:

A passive enclosure is a draft shield. It blocks ambient air currents and traps heat radiating from the bed — good for PETG, marginally helpful for small ABS parts under 50mm. But the bed is the only heat source, and glass transition temperatures for engineering materials sit well above what bed radiation alone can sustain.

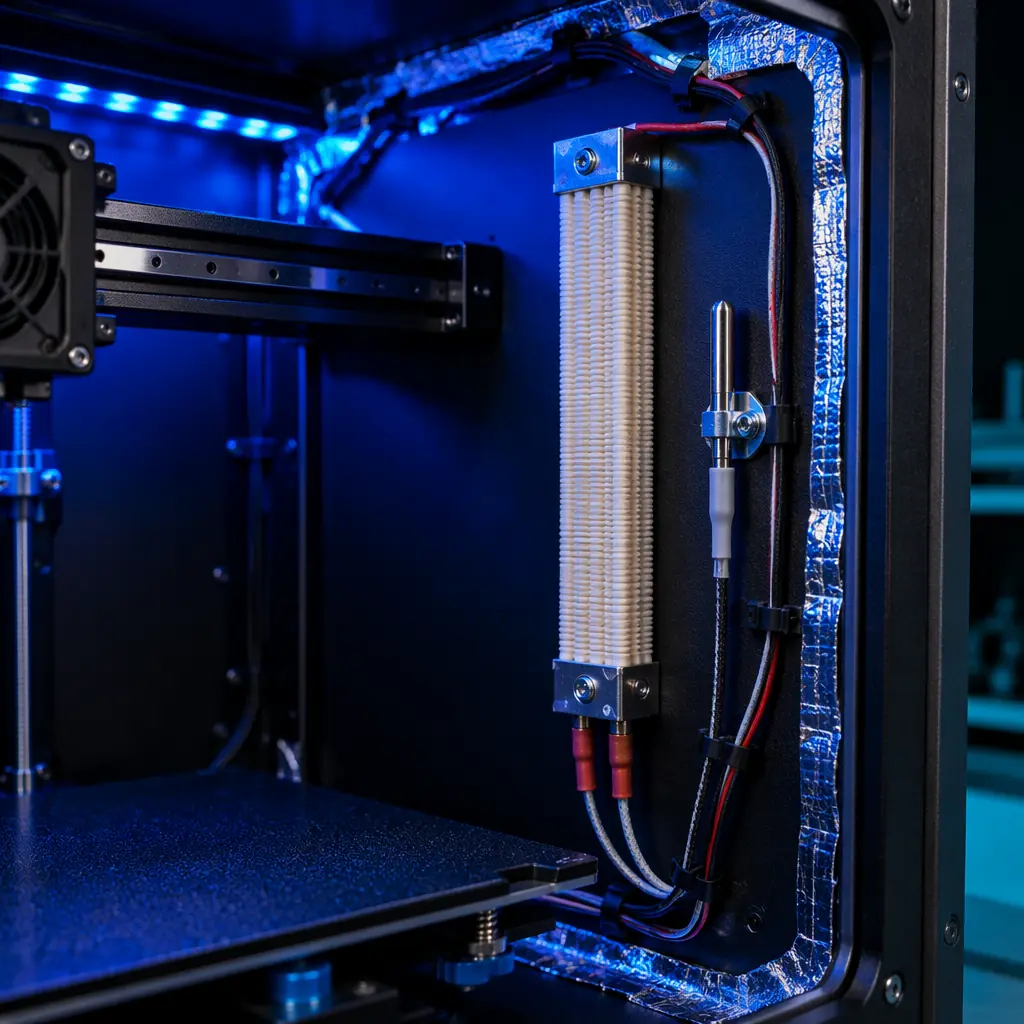

Active chamber heating is a thermal management system. A dedicated PTC (Positive Temperature Coefficient) ceramic heater — typically 100-400W depending on chamber volume — mounts inside the enclosure with its own thermistor sensor. The firmware runs an independent PID control loop that maintains chamber temperature to within ±2°C of the setpoint, regardless of whether the bed heater is at 60°C or 110°C. This is the minimum requirement for reliable polycarbonate and Nylon printing.

The upgrade from passive to active chamber heating is not incremental — it's categorical. A printer that can hold 65°C actively opens up ABS, ASA, and Nylon. A printer that can hold 90°C opens up polycarbonate. A printer that can hold 120°C+ enters ultra-polymer territory — PEEK, PEI (Ultem), and PPSU. Each temperature threshold unlocks a new customer segment and a higher margin bracket.

Chamber Temperature Sweet Spots by Material

Every engineering filament has a temperature window where layer adhesion peaks and warping becomes negligible. Here are the numbers your customers need to hear:

The jump from 45°C to 60°C chamber temperature is the single highest-ROI upgrade in 3D printing. At 45°C, ABS parts over 80mm warp consistently. At 60°C — just 15 degrees higher — the same ABS prints flat across 200mm. This is why distributors should stock at least one active-chamber printer capable of 65°C+, even if most units sold are passive-enclosure models. It's the machine you point to when a customer asks "Can I print ABS?" and you want to give an honest yes.

The Temperature Gradient Problem: Why Large Prints Fail First

Chamber temperature is not just a number — it's a map. In a poorly designed enclosure, the temperature at the top of the chamber can be 15-20°C higher than at the bottom. A part that prints fine in the first 100mm of Z-height starts warping at 150mm because the upper layers are printing into progressively colder air.

This is the temperature gradient problem, and it's why enclosure design matters as much as heater wattage. Key factors:

• Heater placement: A single PTC heater on the chamber floor creates a strong vertical gradient — hot at the bottom, cold at the top. Two heaters (top and bottom) or a centrally mounted heater with a circulation fan reduces gradient to 3-5°C.
• Insulation quality: Double-wall panels with 8-12mm of EPE or rock wool insulation hold heat 3-4× more efficiently than single-layer 3mm acrylic. A well-insulated 300×300×300mm chamber with a 200W PTC heater reaches 65°C in 8 minutes and cycles 40% less often than a poorly insulated one.
• Build volume vs heater wattage: A 400W heater in a 250mm cube chamber reaches 80°C easily. The same 400W heater in a 400mm cube chamber struggles to reach 60°C. Chamber volume scales as the cube of linear dimension — a 400mm printer has 4× the chamber volume of a 250mm printer, and needs proportionally more heating power.

For distributors, the practical implication is clear: when selling a large-format enclosed printer, chamber heater wattage and uniformity specs are more important than the printer's FOB price. A 400mm printer with a 200W heater and no circulation fan will fail on ABS parts over 150mm — and every failure is a potential return. Ask your OEM for the chamber temperature map at the rated wattage, not just the maximum spec.

DIY Enclosure Upgrades: What Your Customers Are Already Doing

Before there were affordable active-chamber printers, there was a thriving aftermarket for DIY enclosure heating. Your customers — especially in the hobbyist-to-prosumer transition — are building these systems. Understanding the DIY landscape helps you sell the value proposition of built-in solutions.

Insulation panels: The most accessible upgrade. Replacing thin acrylic panels with EPE foam-backed panels or adding adhesive insulation sheets to existing panels can raise passive chamber temperature by 8-12°C. Cost: $15-40. The limitation: there's still no active heat source — insulation only retains what the bed produces.

PTC heater modules: 12V or 24V PTC ceramic heater units (100-300W) are widely available for $8-25 on electronics marketplaces. Customers mount them inside the enclosure, wired to a spare MOSFET on the printer's control board. The typical DIY setup: a 200W PTC heater + a 40mm fan for circulation + a thermistor sensor taped to the chamber wall. Total cost: $35-60 in parts.

Firmware integration: This is where DIY hits a wall. Marlin and Klipper both support chamber temperature control as a native feature — configurable PID parameters, chamber preheat sequences, and thermal runaway protection. But configuring it requires editing configuration files, calibrating PID constants, and understanding the pin assignments on the control board. Most customers who attempt this spend 4-8 hours tuning and never get temperature stability below ±5°C.

For a distributor, the DIY ecosystem is both a threat and a selling tool. The threat: a customer who successfully DIYs a heated enclosure for $60 won't pay $400 for a factory solution. The opportunity: every customer who attempts a DIY heated enclosure and gets frustrated is now a qualified lead for a Tier 2 or Tier 3 printer. The sales script is simple: "You spent six hours tuning PID values and your chamber fluctuates ±8°C. This printer holds ±2°C out of the box — and comes with a warranty, thermal runaway protection, and CE certification."

Built-in Active Chamber Heating: Comparing Printer Tiers

Factory active-chamber solutions fall into three design approaches, each with different cost structures and reliability profiles:

Entry-level active (FOB $250-400): A single 150-200W PTC heater mounted in the base of the chamber, with a small circulation fan and basic thermistor feedback. Chamber temp adjustable in firmware (typically 40-65°C range). Temperature uniformity is ±5°C — acceptable for ABS but marginal for PC. These are often enclosed printers that had a heater added to an existing chassis design rather than designed from scratch for thermal management. The 220mm build volume segment is most common here.

Mid-range active (FOB $400-700): Dual PTC heaters (top and bottom, or distributed) with independent thermistor feedback, 250-400W total. Chamber temp 50-90°C with ±2-3°C uniformity. These printers typically seal the electronics compartment separately from the heated chamber (a critical detail — MOSFETs and stepper drivers derate above 60°C). Insulation is integrated into the frame rather than being an afterthought. Build volumes range from 250-350mm.

Industrial active (FOB $700-2,500+): Multi-zone chamber heating with 500-1000W+ total power, actively cooled electronics bay, chamber temp 70-150°C+, and ±1°C uniformity. These printers use high-temperature components throughout — PTFE-free hotends (all-metal, >300°C capable), high-temp stepper motors rated for 120°C ambient, and silicone-insulated wiring. The filtration system is equally critical: HEPA + activated carbon with ≥400g carbon media to handle the fumes from PEEK and PEI printing.

For distributors, the mid-range tier ($400-700 FOB) is the strategic sweet spot. It prints ABS, ASA, Nylon, and PC reliably — covering 95% of engineering filament use cases — without the component cost escalation of the industrial tier. The FOB-to-retail multiplier holds 2.2-2.8× in this bracket, generating $480-1,260 gross margin per unit. More importantly, customers in this tier reorder $30-70/month in engineering filament, creating a recurring revenue stream that compounds across the installed base.

Selling Temperature-Controlled Printers to Industrial Buyers

Engineering and industrial buyers don't buy printers — they buy print reliability for specific materials. The sales conversation shifts from specs to outcomes:

• Automotive prototyping shop: "You need ASA parts that survive 18 months of outdoor UV exposure without degrading. This printer holds 70°C chamber temperature through the entire 14-hour print. Here's a test part printed yesterday — dimensional accuracy within 0.15mm across 180mm."
• Manufacturing tooling buyer: "Your PC jigs and fixtures need to survive 200+ cycles on the assembly line. This printer's 90°C chamber + all-metal hotend produces PC parts with 85% of injection-molded strength. Your per-fixture cost drops from $380 machined to $28 printed."
• Research lab: "You're printing experimental PEEK blends for medical device prototypes. This industrial chamber holds 130°C ±1°C with full thermal runaway protection and a HEPA+carbon filtration system rated for high-temperature off-gassing. Here's the chamber temperature log from a 22-hour continuous print."

The common thread: temperature data sells. Industrial buyers respond to chamber temperature logs, part dimensional measurements, and material test reports — not marketing claims. Every active-chamber printer you stock should have a documented temperature uniformity test (thermocouple array reading at ≥5 positions across the build volume) and a sample part printed in the customer's target material. If your OEM can't provide this data, ask for a sample unit and run the tests yourself.

Two additional selling points that close industrial deals:

1. Enclosed filament path. Engineering filaments absorb moisture aggressively — Nylon can saturate in under 2 hours in 50% RH. An active-chamber printer with a sealed filament path (spool inside the heated chamber, or a heated dry box feeding through a PTFE tube) eliminates moisture pickup during long prints. Pair this with proper filament drying and storage to guarantee print quality from spool to finished part.

2. Annealing capability. A printer that can hold 80-100°C after the print completes doubles as an annealing oven. Annealing ABS or PC parts at 85-95°C for 2 hours increases tensile strength by 15-25% and heat deflection temperature by 10-20°C. This is a feature industrial buyers understand immediately — it's post-processing without a separate oven.

Building Your Enclosed Printer Product Line

The optimal enclosed printer mix depends on your market, but a balanced portfolio follows this structure:

Start with the bridge printer before adding the engineering workhorse. A semi-active enclosed printer at $250-320 FOB lets you test demand for enclosed machines without the inventory risk of a $500+ unit. Once you've validated that 20-30% of your customers will pay the enclosure premium, layer in the engineering tier. The industrial flagship is a 1-2 unit stocking decision — keep one demo unit, print sample parts in PC and Nylon, and order additional units against confirmed purchase orders.

The enclosure temperature control category is where heated chamber knowledge translates directly into competitive advantage. Distributors who can walk a customer through the temperature requirements of their target material — and demonstrate a printer that actually holds those temperatures — don't compete on price. They compete on engineering credibility.
