Print Queue Failure Triage — Recovering a Print Farm After a Failed Plate

On a single printer, a failed print is an inconvenience. On a farm running twenty machines against dated orders, a failed plate is a scheduling event, and the way it is handled in the first ten minutes determines whether it costs an hour or a day. The failure that hurts is rarely the print itself. It is the operator abandoning the machine, walking to a workstation, re-slicing a job by hand, and forgetting to log the failure, so that the same fault recurs across the farm for a week and nobody can see the pattern.

This guide is the recovery procedure: what to do at the machine, how to route the affected jobs, how to decide whether a partial plate is salvageable, and what to record so the failure rate becomes a number the business can act on.

The First Five Minutes at the Machine

The instinct on discovering a failure is to clear the plate and restart. That is the wrong first move, because the evidence for the root cause is destroyed by clearing, and because restarting the same job on the same machine will usually reproduce the same failure.

The sequence is: stop, quarantine, capture, then decide.

Quarantine is the step that is most often skipped and the one that saves the most time. A machine that has produced one unexplained failure should not be handed the customer's rush order while it is being diagnosed. Marking it out of the pool forces the scheduler to place that work on a machine with a clean recent record, which is what actually protects the delivery date.

Classify Before You Fix

Failures on a farm fall into three families, and each has a different owner and a different fix. Classifying the failure inside the first ten minutes is what allows the rest of the farm to be checked for the same condition before it fails, rather than after.

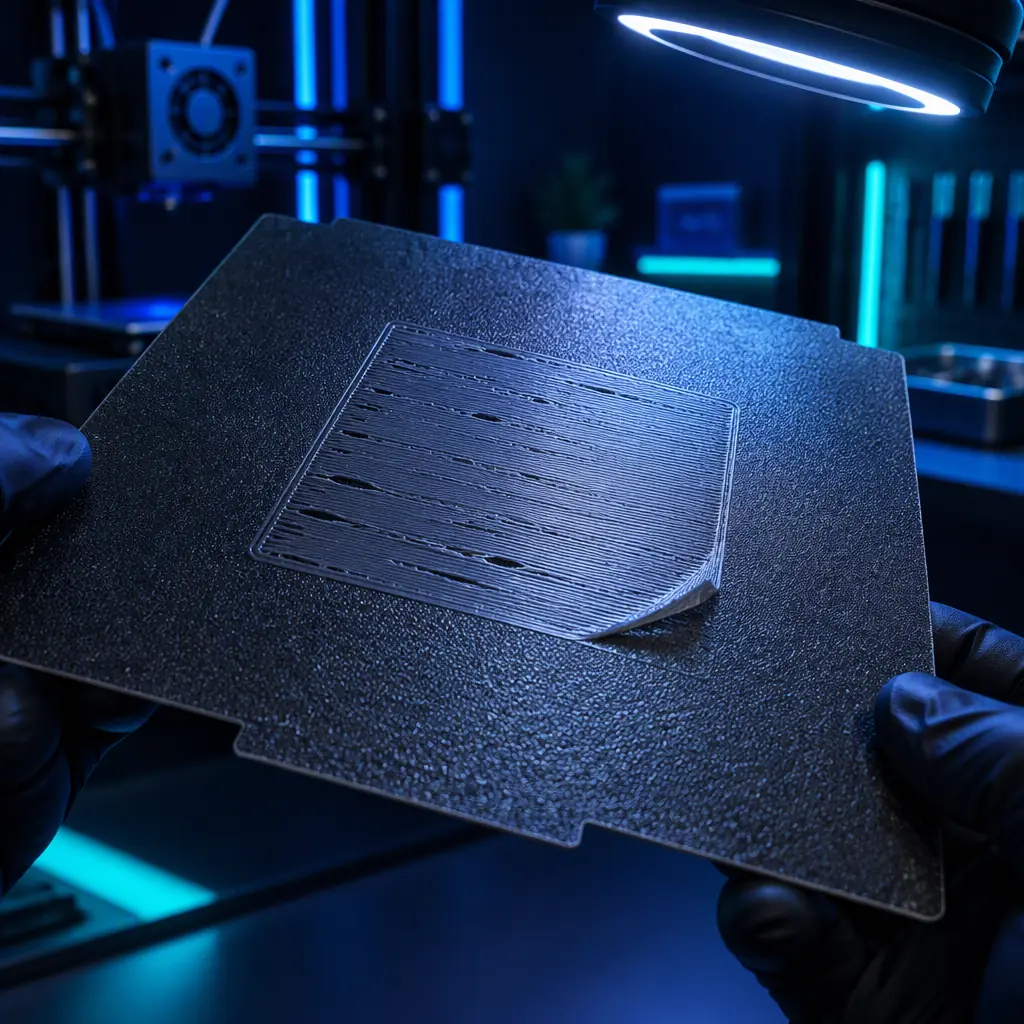

Adhesion Failures

The part releases from the plate, or the first layer never bonded. Causes cluster around plate condition, plate temperature, Z offset and first-layer flow. A single adhesion failure on one machine is a setup issue. The same adhesion failure appearing on three machines in a day is a batch issue: a plate cleaning regime that has slipped, a room temperature change, or a batch of plates that has passed the end of its useful surface life. Checking the other machines for the same symptom takes minutes and prevents the second and third failures.

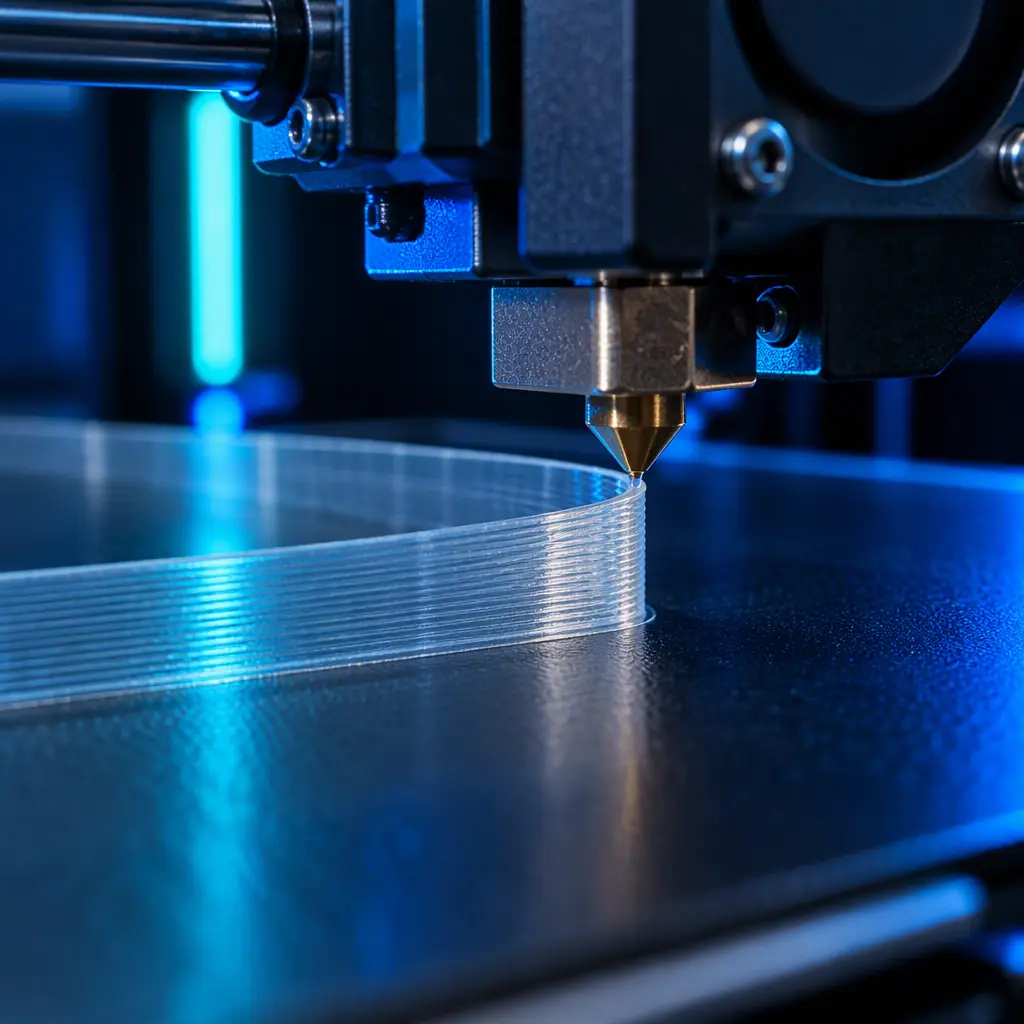

Extrusion Failures

The part is on the plate but is under-extruded, stringing, or missing layers. These point at the material path: a partially blocked nozzle, moisture in the filament, inconsistent filament diameter, or a worn drive gear. Extrusion faults often develop slowly, which is why a farm should be comparing job histories across machines rather than treating each printer in isolation. The measurement approach for the nozzle side of this family is covered in the nozzle wear measurement guide, and the incoming-material side in the filament quality evaluation guide.

Mechanical and Collision Failures

The print is knocked off, shifted, or the head has collided with a lifted part. Causes include a layer shift from a loose belt or pulley, a curl that rose into the path of the nozzle, and operator interference. These need a physical check of the machine before it returns to the pool, because a machine that has shifted once will shift again under the same conditions.

Routing the Failed Jobs

Once classified, the affected jobs need a decision, and the decision should be made by rule rather than by whoever is at the desk. The three options are full re-print, partial salvage, or re-queue behind other commitments, and each has a cost the business should be able to state.

The rule that protects the customer relationship is the notification threshold. A farm that tells a customer two days early that a date is moving keeps the order. A farm that tells them on the day of dispatch loses the next one. Setting the threshold at two days means the decision about whether to expedite is made while there is still capacity to expedite, not after.

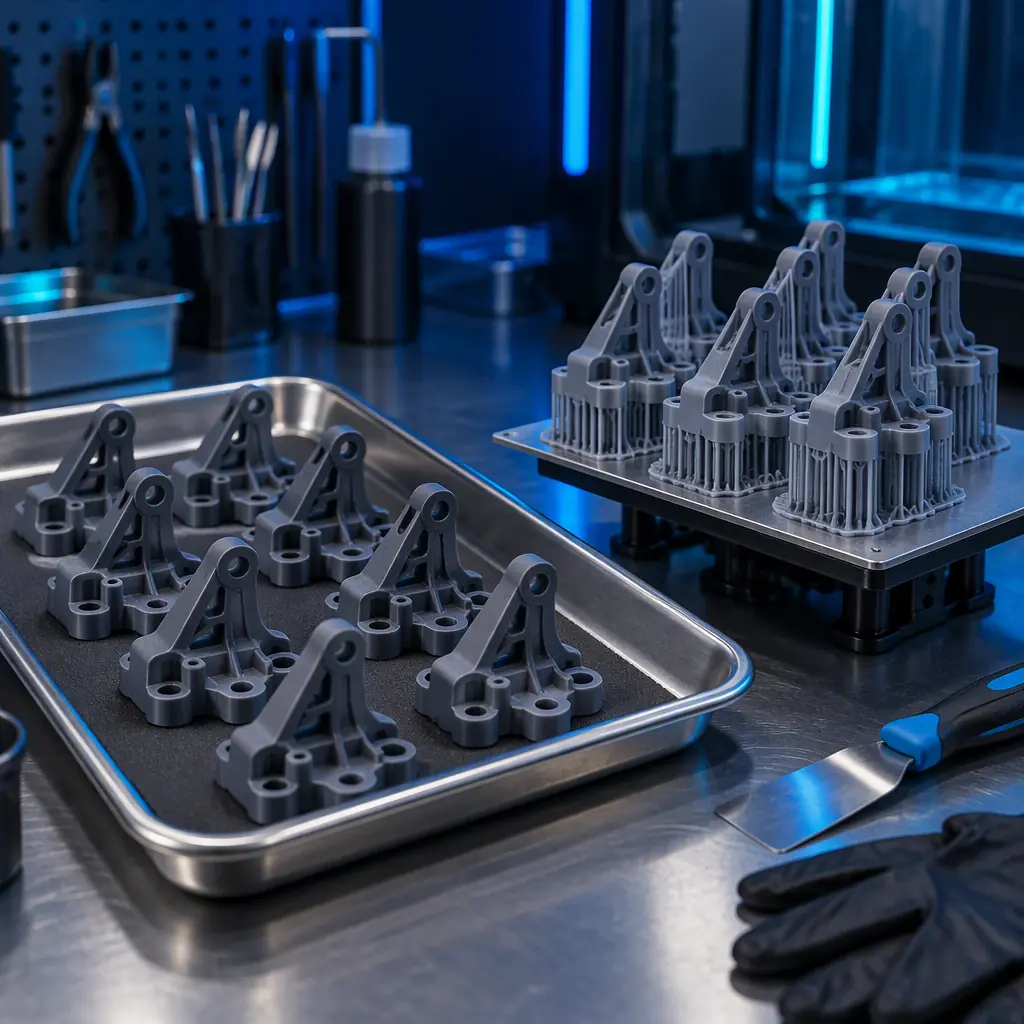

The Partial Plate Decision

A plate that fails two hours into a nine-hour job usually contains parts that are complete and dimensionally sound. The question is whether they can be harvested without contaminating the customer's quality expectations. The test is not whether the parts look right but whether the failure event could have affected them.

Salvage is defensible when the failure was localised, when the affected parts are physically separated from the good ones, and when the good parts completed before the failure occurred. It is not defensible when the failure cause was process-wide, such as an extrusion fault that ran for an unknown period, because there is no way to know which layers of the good parts were affected.

The last line matters more than it looks. Where the parts feed a validated or regulated assembly, a mixed plate is a traceability break that no amount of dimensional checking repairs, and the plate should be scrapped without discussion. The wider rules on what a printed part needs before it can be used as a production component are set out in the end-use component qualification guide.

What to Record So the Data Is Worth Something

Failure logs fail when they capture too much. The version that survives on a working farm has six fields and takes under a minute to complete, because anything longer is abandoned in a busy week and then the farm is flying blind again.

• Job and machine ID: the two keys that let a pattern be found later.
• Time into the print: separates first-layer from mid-job faults.
• Material and spool lot: the field that exposes a bad batch of filament.
• Plate ID and print hours on it: plates have a service life and it is measurable.
• Failure class: adhesion, extrusion or mechanical, from the earlier classification.
• Parts scrapped and parts salvaged: the number that turns failures into a yield figure.

With those six fields, the weekly review can answer the questions that matter: which machines are driving failures, whether a material lot correlates with a spike, and how many plate-hours are being obtained before plates start releasing parts. That last number is the one that most farms do not know, and it is usually the cheapest failure rate to reduce. Plate cleaning intervals and the consumable replacement schedule that sit alongside it are covered in the print farm scheduling guide.

Turning Recovery Into Scheduling Discipline

The difference between a farm that absorbs failures and one that is constantly firefighting is whether the queue is rebuilt by rule after an event. When a plate fails, three things must happen in the schedule: the affected jobs are re-queued with their new realistic dates, the machine is held out of the pool until it passes a test print, and the jobs displaced by the re-queue are re-slotted rather than left to find their own way. A queue that is only ever appended to is not a schedule.

The rules for how work is sequenced in the first place, and how the queue is grouped by material and prioritised, are covered in the print farm job scheduling and queue software guide. Failure triage is the recovery half of the same discipline, and the two should be written as one procedure because the triage decisions are the queue decisions.

Bottom Line

A failed plate on a farm is a scheduling event, and recovering it well means stopping before clearing, quarantining the machine, classifying the fault so the rest of the farm can be checked, and routing the affected jobs by rule rather than by feel. The partial-plate salvage test is about whether the failure event could have touched the good parts, not whether they look acceptable, and regulated work does not get salvaged at all. Six fields in a failure log turn all of it into yield data, and a machine that has failed once does not go back into the pool until it has passed a clean test print.
