A distributor can spend a whole afternoon explaining which brass insert to stock and which hole diameter to print, and still lose the account over a single failed joint. The insert was right and the hole was right. What went wrong was that the person installing it had nothing to set the depth against, nothing holding the boss square, and no instruction on how deep the iron should go. In FDM parts, where the material around the insert is a lattice of layers rather than solid polymer, those three omissions are enough to halve the joint strength.

This guide is about the installation side: the small fixtures that make insert seating repeatable, the depth and travel rules that keep the process inside a window, and the sampling test that tells you whether the line is actually in control. It assumes the reader has already chosen the insert and printed the boss.

Why the Installation Method Decides the Joint

A heat-set insert holds by remelting the polymer around it and letting that melt resolidify into the knurls and under the flange. The strength of the joint therefore depends on melt volume, not on force. Two installations can use the same insert and the same hole and differ by a factor of two in pull-out strength purely because one drove the iron in faster and hotter than the other, producing scorched, low-viscosity melt that flowed away from the knurls instead of into them.

The three variables the operator actually controls are temperature, insertion speed and depth, and all three need a target rather than a feel.

Those numbers are why a hand-held iron drifts. An operator with a bare iron has no way to hold 300 degrees at the tip, no way to stop at the right depth, and no way to cool under pressure. Every one of those gaps is a fixture problem, not a training problem.

The Three-Piece Fixture Set

A complete insert station needs three pieces, and all three can be printed on the machine the parts are printed on. That matters for a distributor because it turns the fixture into a consumable you can sell alongside the inserts.

1. The Alignment Nest

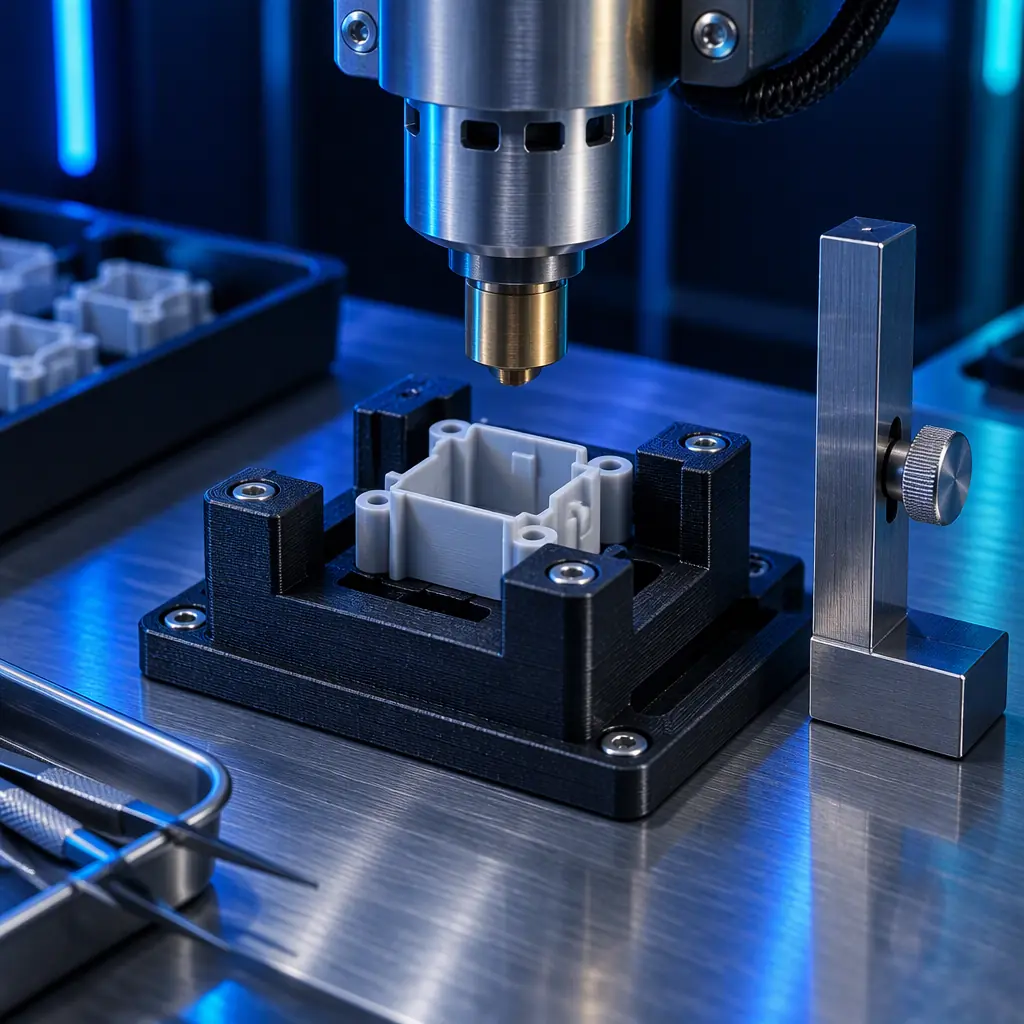

The nest is a printed block with a pocket that matches the part outline and a bore that is concentric with the boss to within 0.1 mm. Its job is not to hold the part down but to hold it square, so the insert axis arrives perpendicular to the boss face. A tilted insert loads the knurls on one side only, and the joint fails on the unloaded side at roughly 40 percent of the expected pull-out value. The nest also protects the part from the operator's hand, which is the usual source of tilt when the part is simply held on a bench.

2. A Controllable Heat Source

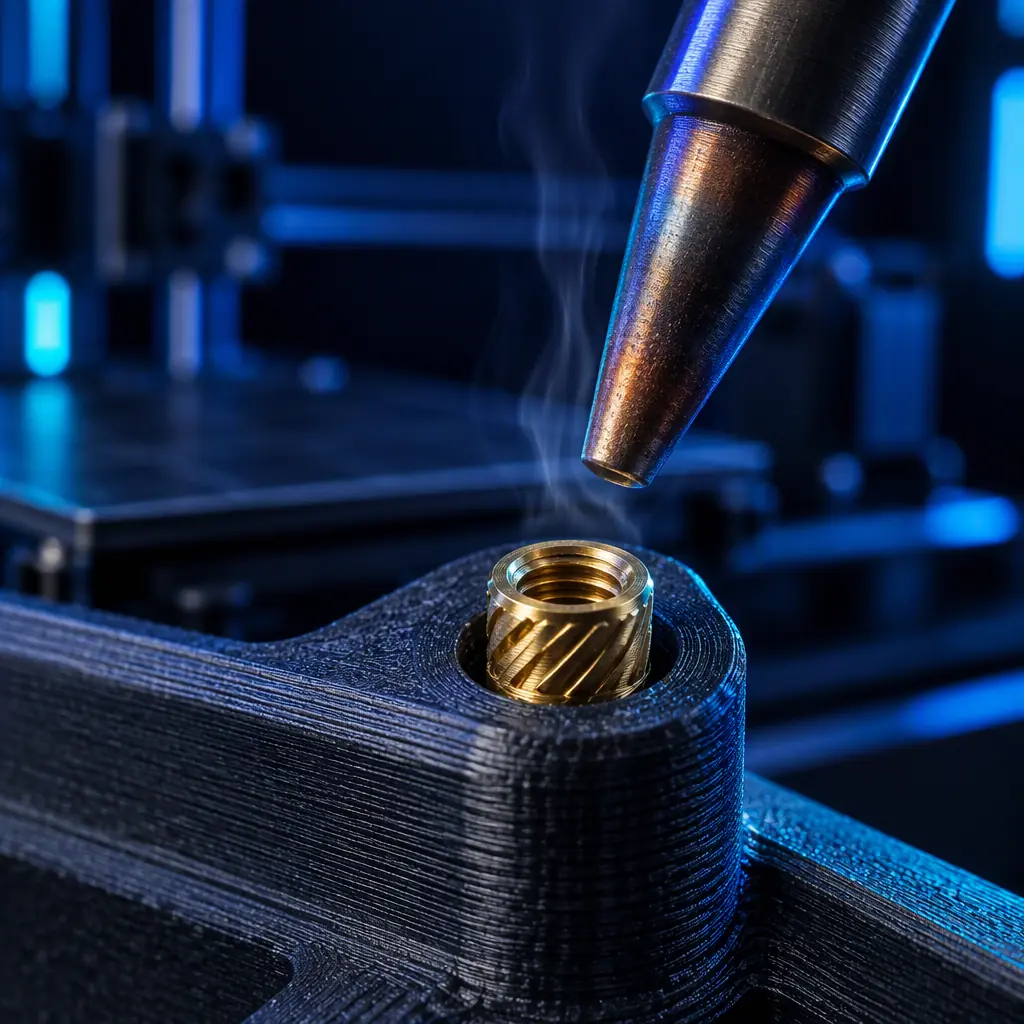

The iron or ultrasonic head is the one piece worth buying rather than printing. What is needed is a tool with a set temperature and a flat face rather than a conical pencil tip, because the conical tip concentrates heat in the middle of the insert and leaves the flange cold. A flat-faced bit of the right diameter applies heat across the whole insert at once, which lets the insertion complete before the top of the insert overheats.

3. The Depth Stop

The depth stop is a shoulder on the nest or a gauge block that sits against the tool collar. It is the piece that removes the operator's judgement: the tool travels until it bottoms on the stop and no further. Without it, depth is set by eye, and eye is a poor judge of a dimension that matters at the 0.2 mm level.

Designing the Boss for an Assembly Operation

The fixture can only do so much if the boss was designed for a screw and not for an insert. Three design details make the installation robust and are worth raising with the customer before the parts are printed in volume.

Boss Wall Thickness and Support

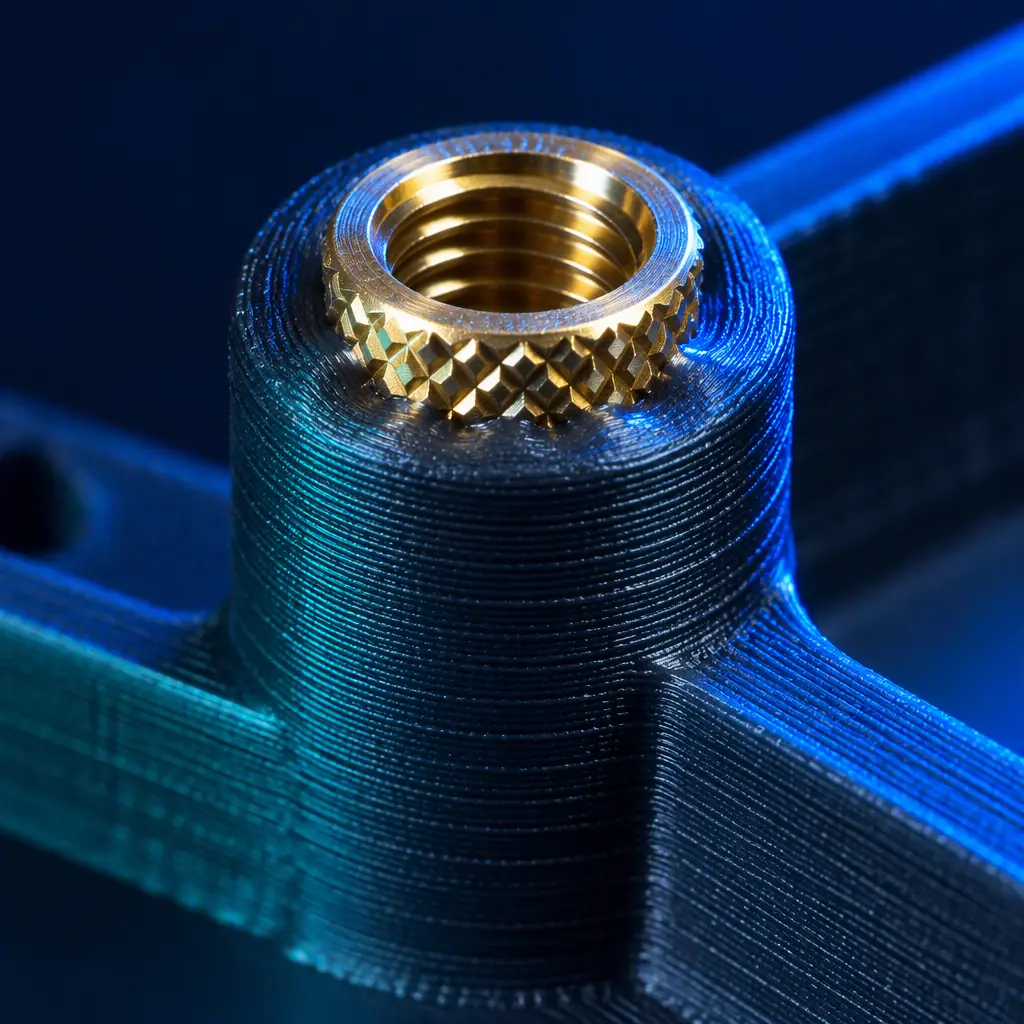

The melt has to go somewhere. A boss wall of at least the insert diameter gives the displaced polymer a place to flow, and anything under two millimetres tends to split along the layer lines when the iron arrives. A gusseted boss, or a boss attached to a wall rather than standing free, resists the hoop stress that the expanding insert puts on it.

Hole Diameter and Depth

The hole should be printed slightly undersized so the insert cuts its own path, with the interference sized to the material rather than fixed. A depth allowance of 1 to 2 mm below the insert tip collects the displaced material and stops it from backing the insert out. A blind hole is preferable to a through hole for the same reason, unless the print orientation makes a blind hole impractical.

Layer Direction

An insert installed along the Z axis of a print, meaning perpendicular to the layers, sits in a stack of weak interlayer bonds. Where the geometry allows, the boss should be oriented so the insert axis lies in the XY plane, which puts the load into the continuous extrusion rather than across the layer joints. This is a print-orientation decision that has to be made at the design stage, and it interacts with the rest of the orientation trade-offs covered in the print orientation guide.

The Pull-Test Sampling Rule

Insert installation is invisible once the part is assembled, so a defect has no way to announce itself until the customer's product is in the field. The cheap insurance is a pull-test station and a sampling rule, and both cost less than one warranty return.

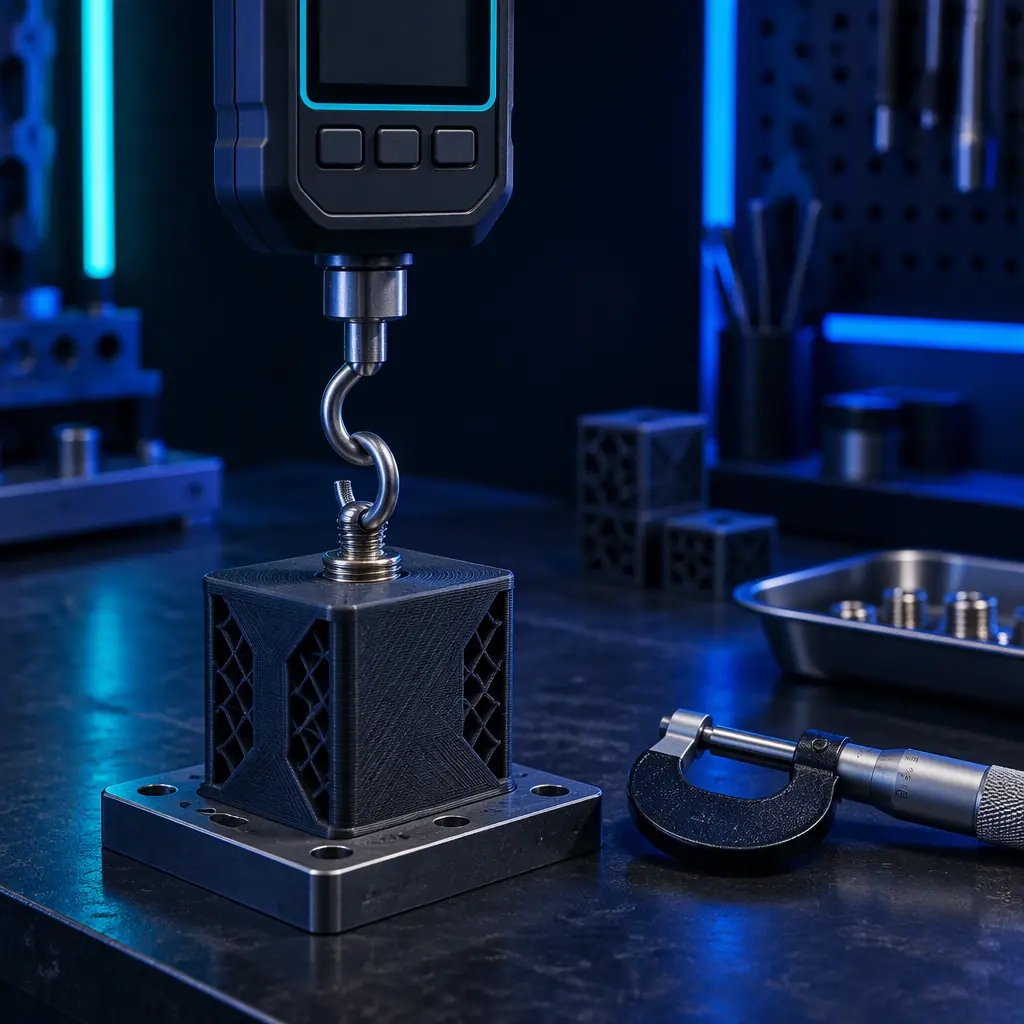

The rule that works on a bench assembly line is simple: test the first three pieces of every batch, then one in every fifty, plus one immediately after any change to bit temperature, insert supplier lot or printer material. Test to failure rather than to a pass mark, and record the failure value. A joint that passes at 700 N when the target is 400 N is a different process from one that passes at 410 N, and only the recorded number shows which you have.

The value of testing to failure rather than to a threshold is that the failure distribution is what tells you the process is drifting. A batch that fails at a mean of 650 N and one that fails at 480 N both pass a 400 N gate, but only the first has margin left for the next material lot.

What the Fixture Set Is Worth to a Distributor

A distributor who sells inserts alone is competing on the price of a brass part. A distributor who ships a nest, a depth stop and a written sampling rule with the first insert order has sold the customer a process, and a process has switching costs. The fixtures are printed, which means they are produced on the same machine that produces the customer's parts and can be revised in an afternoon when the part geometry changes.

• First order: supply the nest and depth stop as a printed kit, cut to the customer's part outline, alongside the insert selection sheet.
• Consumable attach: inserts, spare insert tips and replacement nests are all recurring items, which links this work to the consumable programme in the consumables subscription guide.
• Service tie-in: the pull-test station is a natural part of a commissioning visit and can be folded into the periodic maintenance plan described in the annual service contracts guide.
• Quality documentation: a recorded first-article pull value is evidence the customer can put in a process file, which matters wherever the parts feed a regulated assembly.

The companion article on heat-set inserts and threaded fasteners covers insert selection, hole sizing and pull-out data by material. This piece is the installation half of the same sale, and the two are usually quoted together.

Where Installation Goes Wrong in the Field

Four failures account for most of the insert-related returns, and each has a fixture or a rule behind it rather than an operator behind it.

Insert Pulls Out Under Normal Torque

If a joint that tested well on the bench fails in the customer's hands, check the screw first. An over-length screw that bottoms out in the hole and then continues to be tightened jacks the insert out from below, which looks exactly like a weak insert. Confirm the screw length against the insert depth before changing the installation process.

Boss Splits on Insertion

A split boss is a design and temperature problem together: the hole is too small, the boss wall too thin, or the bit too hot and the melt too thin to carry the hoop stress. Measure the boss wall, re-check the hole diameter against the material, and lower the bit temperature in 10 degree steps until the insert drives in firmly without the boss deforming. Also confirm the boss is oriented so the insert does not sit across the layer stack.

Insert Sits Proud or Sunken

A flange standing proud holds the mating part off the surface and creates a gap; a sunken insert reduces the engaged thread length and can bottom the screw. Both point at the depth stop. Check that the stop is fitted, that the nest pocket has not worn, and that the operator is not applying extra pressure after the tool bottoms.

Intermittent Weak Joints in a Batch

If pull values scatter widely within one batch, the material is the likely variable rather than the operator. Moisture in the filament, a change in colourant, or a switch from virgin to regrind all shift the melt behaviour and therefore how well the insert seats. Dry the material, confirm the lot, and re-run a first-article test before releasing the rest of the batch. The wider question of how printed parts qualify for production use is covered in the end-use component qualification guide.

Bottom Line

A threaded insert only delivers its rated strength if it is installed to a repeatable depth, at a controlled temperature, into a boss that was designed to receive it. The alignment nest, the flat-faced temperature-controlled bit and the depth stop turn that from an operator skill into a station capability, and the pull-test sampling rule is what proves the station is holding. A distributor who sells the fixture set and the sampling rule with the first insert order is selling a process the customer cannot easily replace, which is a stronger position than selling brass by the thousand.
