Tooling and Fixture Maintenance — Keeping Jigs Accurate Across a Print Fleet

Machine maintenance gets attention because a printer that fails is obvious. Tooling maintenance gets far less, because a jig that has drifted out of tolerance still produces parts that look right. The defect surfaces weeks later, in a batch of assemblies that will not close, and the cause is a fixture that was never re-measured after the hundredth cycle.

This guide treats tooling as what it is: production equipment with its own wear mechanisms, its own inspection interval and its own maintenance budget. The same discipline that keeps a printer accurate has to be applied to the jigs, nests and gauges that position work, or the accuracy of the machine is annihilated by the drift of the tooling around it.

Why Printed Tooling Drifts

A jig does not fail as a printer does; it changes shape slowly. Understanding which mechanism is moving the geometry is the difference between inspecting on a schedule and inspecting on a guess.

Wear at Contact Surfaces

Every cycle removes a little material from the surfaces that touch the part. Locating pins, datum faces and clamps are the first to move, because they see the highest contact pressure. Wear is roughly proportional to the number of cycles and to how abrasive the part interface is, so a fixture running a glass-filled part wears far faster than one running an unfilled part.

Fastener Relaxation

Press-fit inserts and threaded fasteners lose preload under repeated loading and thermal cycling. A fixture that was square when assembled can be fractions of a millimetre out after a few hundred cycles, not because any single component moved far, but because every joint relaxed a little. Keeping the tooling aligned with the fasteners is the discipline covered in the threaded insert installation and assembly fixtures guide.

Moisture and Thermal Creep

Printed polymer tooling absorbs moisture and creeps under sustained load, particularly where a fixture is left clamped for long periods. A fixture stored loaded, in a humid room, will not measure the same as one stored unloaded and dry, and the difference is the biggest source of unexplained dimensional drift in printed tooling.

The creep and moisture figures explain why storage discipline is a maintenance action rather than housekeeping. A fixture left clamped on a humid shelf is being actively deformed, and the deformation accumulates.

Classify Tooling by Consequence

Not every jig deserves the same inspection effort. Applying a single schedule to a nest that positions a cosmetic trim piece and to a gauge that sets a critical hole position wastes effort on the first and under-protects the second. Classify by the consequence of the tooling being wrong.

Class A — Gauge Tooling

Tooling that defines a measured dimension: go/no-go gauges, datum-setting fixtures, alignment tools for inspection. Drift here is immediately a quality escape, so Class A tooling is inspected against a known reference on a fixed calendar, not on a cycle count that nobody tracks accurately.

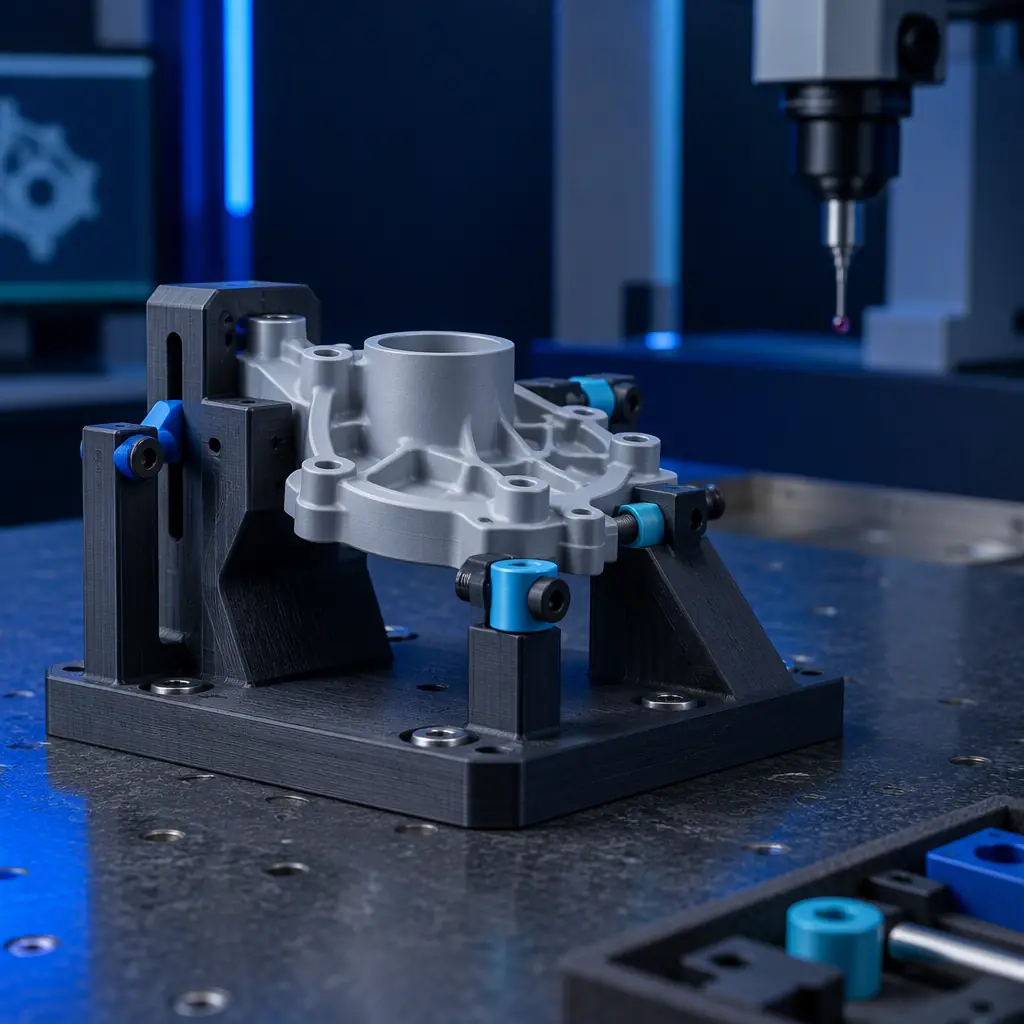

Class B — Assembly and Production Fixtures

Nests, clamps and assembly jigs that position work for joining or machining. Drift here produces parts that fail downstream rather than parts that fail inspection, so Class B tooling is inspected on a cycle-count interval with a defined sample check at the interval boundary.

Class C — Handling and Support Tooling

Racks, stands, transport trays and non-dimensional support tooling. Drift here has cosmetic or handling consequences at worst, so Class C is inspected on condition — replaced when visibly worn or damaged — rather than on a schedule.

The intervals and bands are starting points that each farm should tune against its own wear data, but the structure matters more than the numbers. A farm with a class structure and slightly wrong intervals will catch drift sooner than a farm with no structure and perfect intentions.

The Inspection Routine

Tooling inspection is quick when it is designed to be quick and abandoned when it is designed to be thorough. Four measurements per fixture, taken the same way every time, catch the drift that matters.

Measure the Datums, Not the Outline

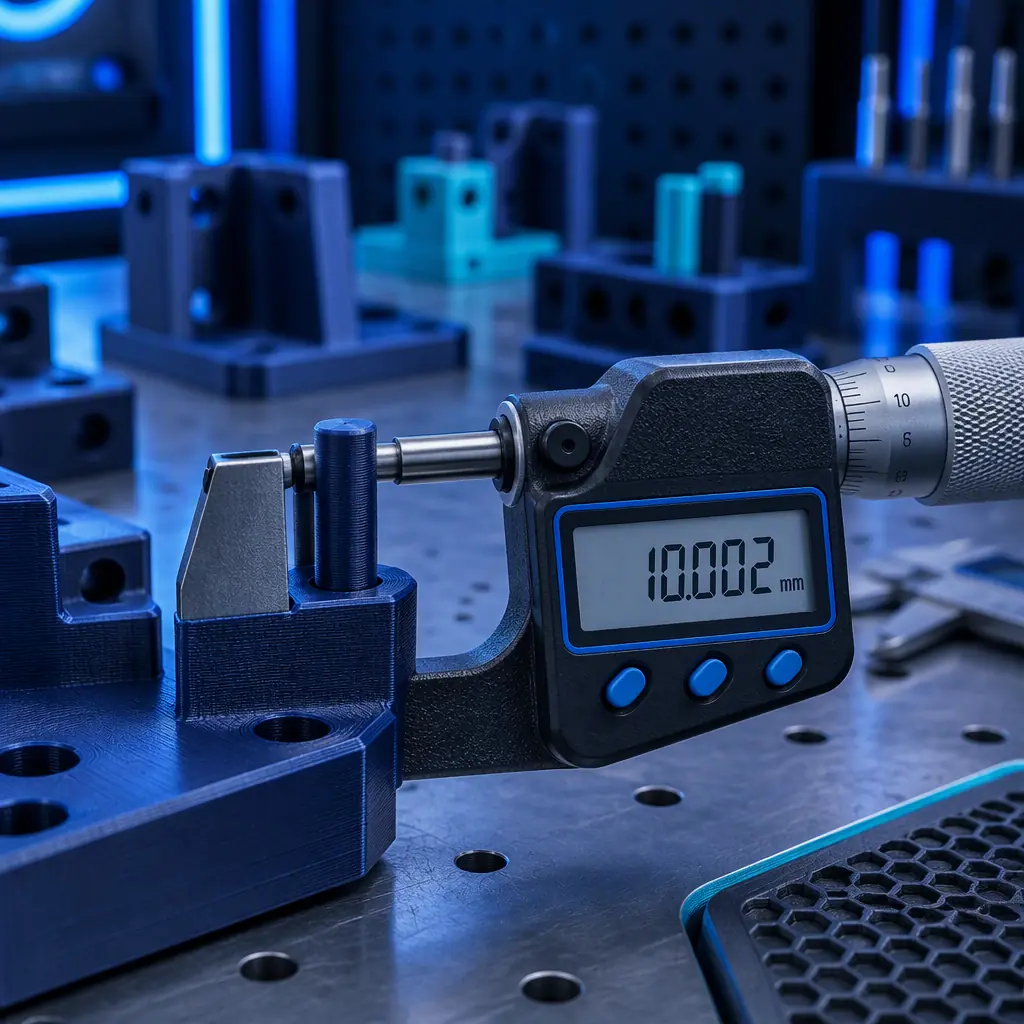

The measurements that matter are the ones that define where the part sits: locating pin diameter and position, datum face flatness, and the distance between the two features the part is located against. Measuring the outer profile of the fixture is easy and tells you almost nothing, because the outer profile is not what positions the part.

Measure Under the Same Conditions

A fixture must be measured unloaded, at a defined reference temperature, and with any clamps in their working state. Measuring a fixture while it is clamped shut gives a different answer from measuring it open, and if the farm is inconsistent about which way it measures, the tooling log will show drift that is measurement noise rather than wear. The general approach to dimensional verification is set out in the part metrology and dimensional inspection guide.

Record Every Measurement, Even When It Passes

A pass recorded with the actual number is what turns tooling maintenance from an inspection into a trend. A fixture that measured 0.02 mm of drift last month and 0.03 mm this month is due for re-work soon, and only the recorded numbers show that. The tolerance bands above only trigger if there is a previous value to compare against.

Re-Work or Replace

When a fixture drifts, the decision is whether to correct it or retire it, and making that decision by feel is how a fleet ends up with a shelf of fixtures of unknown history.

Re-Work When the Fix Restores the Datum

A worn locating pin can be replaced with a metal dowel press-fit into a re-drilled bore, which restores the datum and typically outlasts the original printed pin. A relaxed clamp can be re-torqued. Loose inserts can be re-installed. Re-work is appropriate when the correction restores the locating feature rather than approximating it.

Replace When the Body Has Moved

If the fixture body itself has crept or the datum bore has deformed, re-work is a patch on a moving foundation. Fixtures that have moved in the body are replaced rather than re-machined, because the next inspection will find them out again. Print the replacement from the same source file and re-verify on the same routine the original was verified with.

Retire on the Third Re-Work

A rule that works in practice is to retire a fixture after its third re-work. Three corrections means the fixture has been through three wear cycles, and past that point the tooling has demonstrated its service life and the printed replacement is cheaper than continued attention. The same end-of-life logic that governs the printer fleet itself applies to the tooling, and the accounting is set out in the parts obsolescence and end-of-life guide.

Storage Discipline as Maintenance

A large share of printed-tooling drift happens between uses rather than during them. Storage is where creep, moisture uptake and mechanical damage accumulate, and it is the cheapest part of the programme to get right.

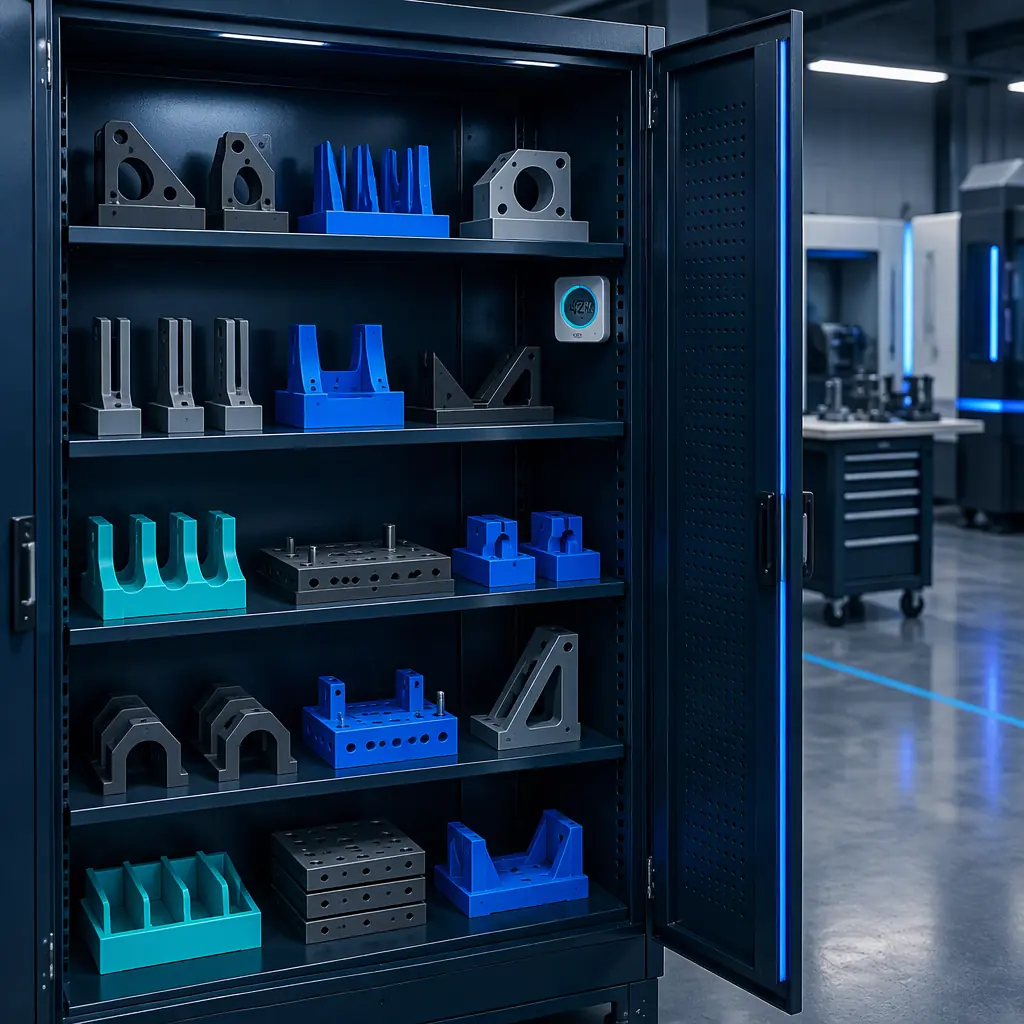

Store Unloaded, Dry and Identified

Fixtures are stored with all clamps released, in a dry cabinet or room under forty percent relative humidity, and each one is labelled with its tooling ID and its last-verified date. A fixture whose last-verified date cannot be read is one that will be used well past its inspection interval, which is the precise situation the programme exists to prevent.

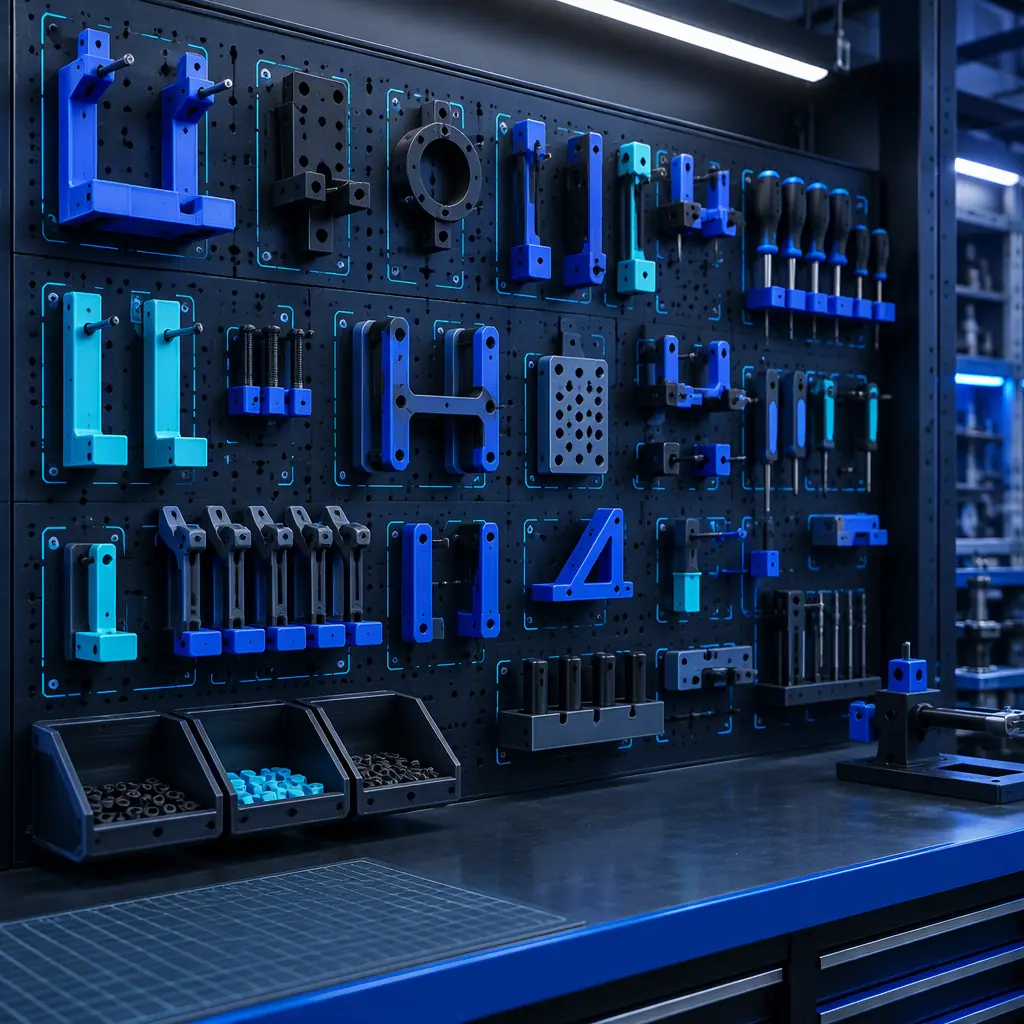

Storage Protects the Datum

Locating pins and datum faces are the most vulnerable features and the ones that matter most. Fixtures stored loose in a bin will knock their pins against each other; fixtures stored on dedicated pegs or in fitted trays will not. The storage investment is small and it directly extends the interval between inspections.

The Tooling Maintenance Log

Tooling maintenance is only a programme if it is recorded. The log is what connects the fixture on the shelf to its history, and six fields make it usable.

The Six Fields

• Tooling ID — a unique identifier carried on the fixture itself, matching the label on its storage position.
• Class and owner — A, B or C, and the person accountable for it.
• Last verified date — the date of the last inspection that has a recorded measurement.
• Last measurement — the actual value on the critical feature, not a pass mark.
• Cycles since verification — the count that drives the Class B interval.
• Action history — re-work, replacement or none, each with a date, so the third re-work rule can be enforced.

This log is the tooling side of the same maintenance discipline that the printer fleet follows, and the two meet in the fleet asset record described in the fleet asset registry guide, where tooling is tracked as an asset with its own lifecycle. When a jig is found to have caused a defect escape, the tooling log is what establishes how long it had been out of tolerance, which is the difference between a contained issue and an open-ended recall.

The printed tooling library that this programme maintains is itself a production asset, and the design rules that make jigs and fixtures reliable in the first place are covered in the printed jigs, fixtures and tooling library guide. A fixture designed with proper locating features and replaceable contact surfaces starts its life with a longer service interval than one designed as a single printed block.

Bottom Line

Treat printed tooling as production equipment with its own wear. Classify fixtures by the consequence of them being wrong, inspect Class A on a calendar and Class B on a cycle count, measure the locating datums under consistent conditions, and record the actual number every time so drift shows as a trend. Re-work when the fix restores a datum, replace when the body has moved, and retire after the third re-work. Store unloaded, dry and labelled, keep a log with the last measurement in it, and the jigs stop being the silent variable in a fleet that is otherwise well controlled.
