3D Printer Emissions Audit — Measuring UFP and VOC Exposure for EHS Compliance

Installing filtration and auditing exposure are two different activities, and the gap between them is where workplace safety findings live. A room can have an extraction system on every machine and still expose an operator above the relevant limit, because the system was sized for the printer rather than for the room, because make-up air is insufficient, or because the operator stands in the wrong place. The only way to know which of those is true is to measure.

This audit is increasingly a commercial requirement rather than a voluntary exercise. Customers with an occupational health function, and those supplying into regulated sectors, are asked to produce evidence of exposure assessment. The fume extraction and filtration guide covers equipment selection; this guide covers what to measure and what to record.

What the Emission Actually Contains

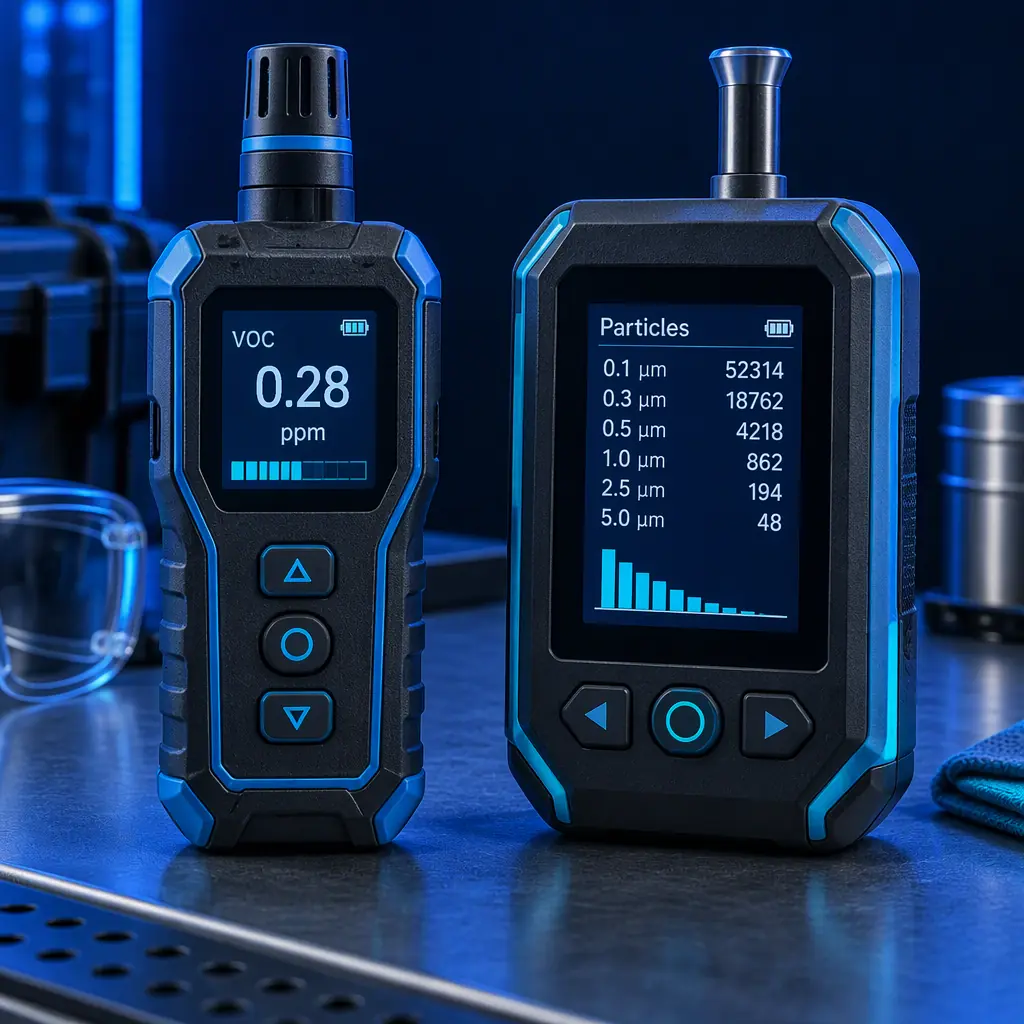

Two classes of emission matter, and they are measured with different instruments because they behave differently in the body and in the room.

• Ultrafine particles (UFP): particles below 100 nanometres, generated by the thermal decomposition of polymer at the nozzle and by condensation of the vapour as it cools. They are counted by number, not by mass, and they behave like a gas in the room, which means they distribute widely and are poorly captured by anything other than high-efficiency filtration close to the source.
• Volatile organic compounds (VOC): the chemical fraction, whose composition depends strongly on the polymer. Styrene from ABS and styrenic blends is the best characterised and is the compound most exposure discussions centre on; the same is true of caprolactam from nylon and various aldehydes from PETG and PLA at temperature.

The counterintuitive point is that an enclosure does not reduce emissions, it delays them. A closed chamber accumulates the emission and releases it in a concentrated burst when the door is opened, which is frequently the moment the operator is standing directly in front of it. This is why an enclosed printer with no extraction can produce a higher operator exposure than an open one, and why the audit has to sample the door-open condition rather than only the steady state.

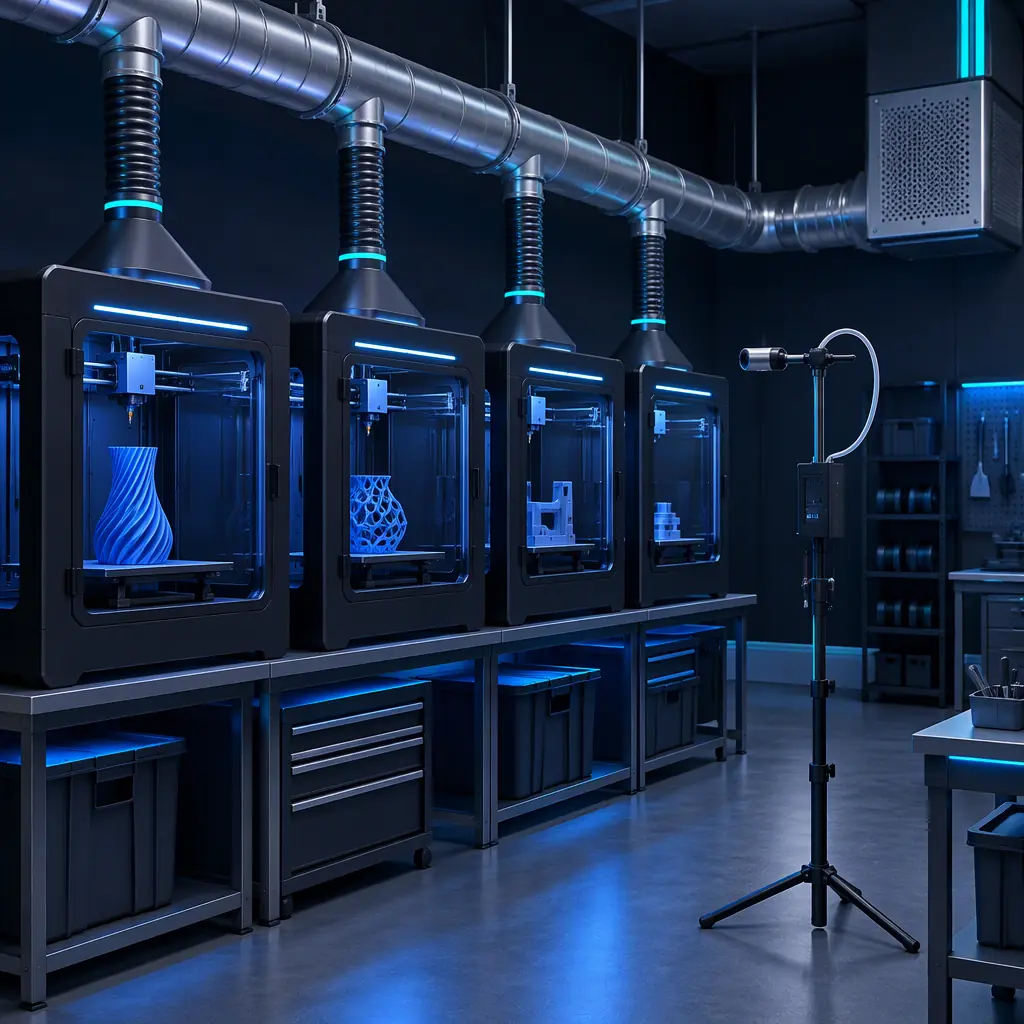

Sampling: Where and When

An exposure measurement is only meaningful if it is taken where a person breathes and during the task they actually perform. Measurements taken at the duct, in the middle of the room, or with the machines idle do not describe operator exposure and should not be reported as though they do.

A background sample taken outside the room in the same session is not optional, because it separates what the printers contribute from what arrives with the supply air or from an adjacent process. Without it, a room with high ambient particulate from another activity can be incorrectly blamed on printing, or a genuine contribution can be masked.

Comparing Results Against a Limit

Comparing a measured concentration against a limit requires the right limit and the right averaging period, and this is where reports most often go wrong. Ultrafine particles measured by number do not have a general workplace exposure limit in most jurisdictions; the reference point is the background concentration and the ratio to it, together with whatever guidance the relevant occupational hygiene body has issued for the specific process.

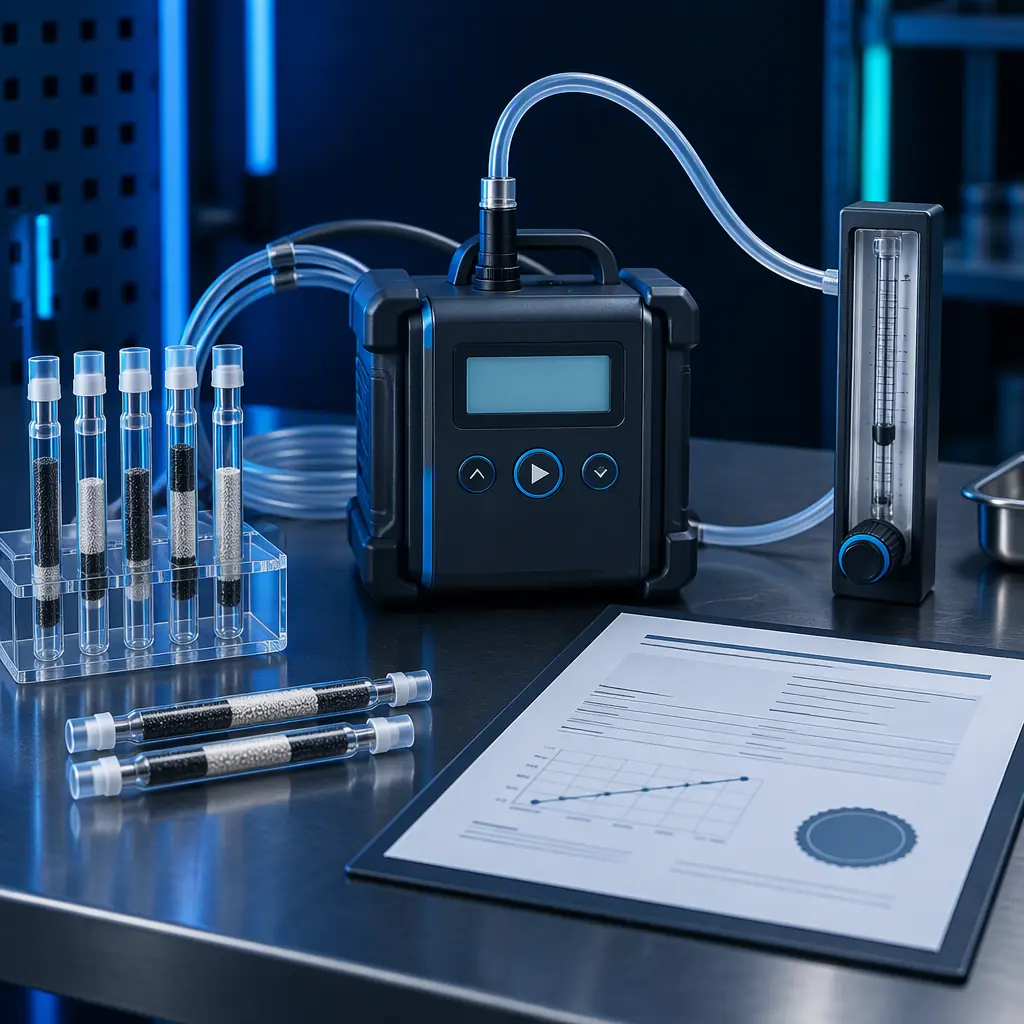

The compound-specific nature of VOC limits is the detail that determines whether an audit is useful. A total VOC reading in arbitrary units cannot be compared to a styrene limit, and a styrene measurement does not characterise a nylon print where caprolactam is the compound of interest. The audit should state which polymer was run, which compound was quantified, the analytical method, and the averaging period. A report that gives a single number for volatile organic compounds without those four attributes is a screening result at best, and it should be labelled as one.

Where a measured value is a fraction of a limit, the useful finding is usually not the absolute number but the margin. A result at half the limit means the process has headroom and can double throughput before it needs engineering changes; a result at the limit means the next machine added to the room is an exposure problem before it is a capacity gain.

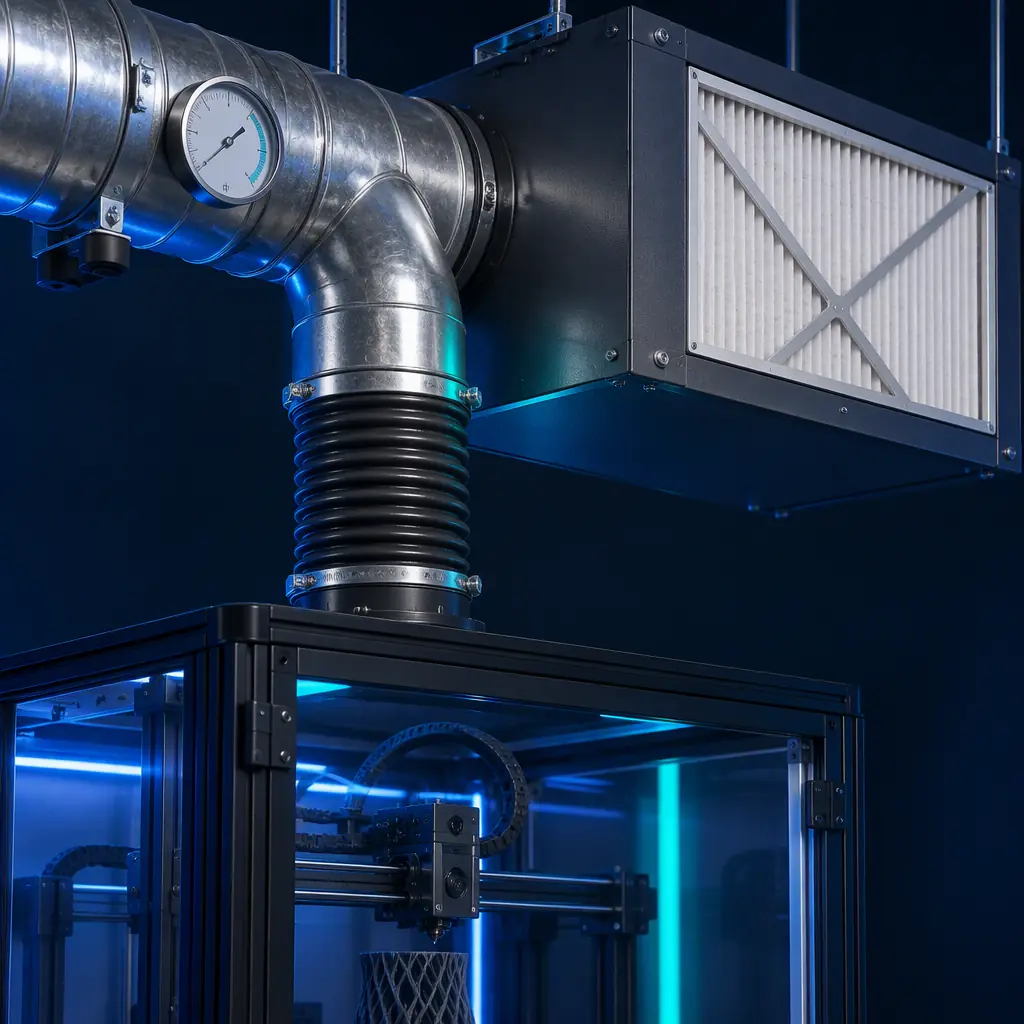

Ventilation and Capture: What to Verify

Extraction systems are specified by airflow, and airflow decays invisibly. A duct that has accumulated polymer condensate, a filter that has loaded, or a damper that has been moved during another maintenance task all reduce capture while the system continues to run and appear operational.

Make-up air is the item most often omitted, and its absence produces the classic failure where extraction is installed and capture collapses anyway. A room with high extraction and no dedicated supply runs at a strong negative pressure, which pulls air in through every gap, defeats directional capture at the enclosure face, and in an extreme case causes back-draughting through the printer's own cooling intakes. Measuring room pressure relative to the adjacent space is a five-minute check that explains a large share of disappointing audit results.

The Audit Record

The record is the deliverable, and it has to be structured so that a reviewer who was not present can reproduce the conclusions. The following fields cover what an occupational health or EHS function will look for.

• Room and cell identity: which space, which machines, and what else operates in the space.
• Polymer and profile: every material run during the measurement, with nozzle and chamber temperatures.
• Instrument identity and calibration: model, serial, calibration date and certificate reference for each instrument.
• Sampling positions and heights: stated in a way that can be reproduced, with a plan drawing if the room is not simple.
• Operating condition: door open or closed, extraction on or off, number of machines running.
• Background sample: taken in the same session, with the location stated.
• Results with averaging periods and analytical method: per compound for VOC, count-based for UFP.
• Ventilation verification: measured face velocities, filter differential pressure, room pressure relative to adjacent space.
• Comparison basis: which limit or reference was used, and the margin at each position.
• Actions and re-test date: what changes if any, and when the assessment is repeated.

Two fields make the record durable rather than merely complete. The operating condition field prevents the most common misreading of a favourable result, and the margin field turns a compliance document into an engineering planning input. A customer who knows they are at half the limit can plan growth; a customer who has a pass certificate and no margin number has to commission another audit before every expansion.

Selling the Assessment

For a distributor, the emissions audit is the service that converts a filtration sale into a relationship, because it produces a document the customer needs and cannot easily produce themselves. The commercial structures that carry this kind of recurring engineering service are set out in the device-as-a-service guide, and the wider workshop risk picture that an EHS function will review alongside air quality is covered in the distributor insurance and liability guide.

The strongest attach point is the filtration installation itself, because the customer has already accepted that air quality is a problem requiring capital, and the assessment is the step that proves the capital worked. Offering it after the sale rather than with it is how the service gets deferred and eventually forgotten, which leaves the recurring revenue on the table and leaves the customer without the evidence they will eventually be asked for.

Bottom Line

An emissions audit measures ultrafine particles by number and volatile organic compounds by compound, at breathing height, during the real task, with the chamber door open as well as closed, against a background sample taken in the same session. Report the polymer, the analytical method and the averaging period or the numbers cannot be compared to a limit, and record the margin so the result is a planning input rather than a pass certificate. Then verify the ventilation that is supposed to be protecting the operator, especially make-up air, because extraction without supply defeats capture no matter how good the filter is. The equipment side of the problem is covered in the fume extraction and filtration guide, and the enclosure-side containment strategy that determines what the extraction has to handle is set out in the enclosure and ventilation bundling guide.
