Troubleshooting Print Failures: The Diagnostic Framework That Turns Support Calls Into Upsells

A distributor in São Paulo receives 14 support calls in one week. Twelve of them are about print quality. The support team, two people without engineering backgrounds, spends an average of 38 minutes per call — researching on forums, guessing at causes, shipping replacement parts that don't fix the problem. Return rate for the quarter: 11.4%. The product margin on those printers was 22%. The math is simple: returns consumed more than half the profit. The fix is simpler: a diagnostic framework that turns every support call into a structured troubleshooting session, where the most common outcome is a solved problem — not a return label.

Consumer 3D printers are not appliances. They are precision motion systems with thermal, mechanical, and material variables that interact in ways a first-time user cannot be expected to understand. The distributor who accepts this reality and builds a diagnostic capability — rather than hoping customers "figure it out" — captures the margin that everyone else loses to preventable returns. This guide covers the eight failure categories that account for 85% of print-quality support tickets, organized into a decision-tree format that a non-technical support agent can follow. Each section includes: symptoms the customer will describe, the 2–3 most likely root causes ranked by probability, the diagnostic question that isolates the cause, and the fix — which is often a consumable, an accessory, or a printer upgrade that turns a support cost into a revenue opportunity.

Failure #1: Bed Adhesion — The Print That Won't Stick

Bed adhesion failures are the most common support ticket in consumer 3D printing — accounting for roughly 30% of all print-quality calls — and the easiest to misdiagnose. A customer says "the print won't stick" or "it came off the bed mid-print." The support agent who ships a new build plate without asking the right questions has a 60% chance of solving the problem and a 40% chance of receiving the same call again in two weeks. Here is the diagnostic sequence that gets it right the first time.

Symptom cluster: First layer doesn't adhere, edges lift during print (especially on larger footprints), print detaches completely mid-job, or first layer appears "squished" on one side and loose on the other.

Root cause ranking:

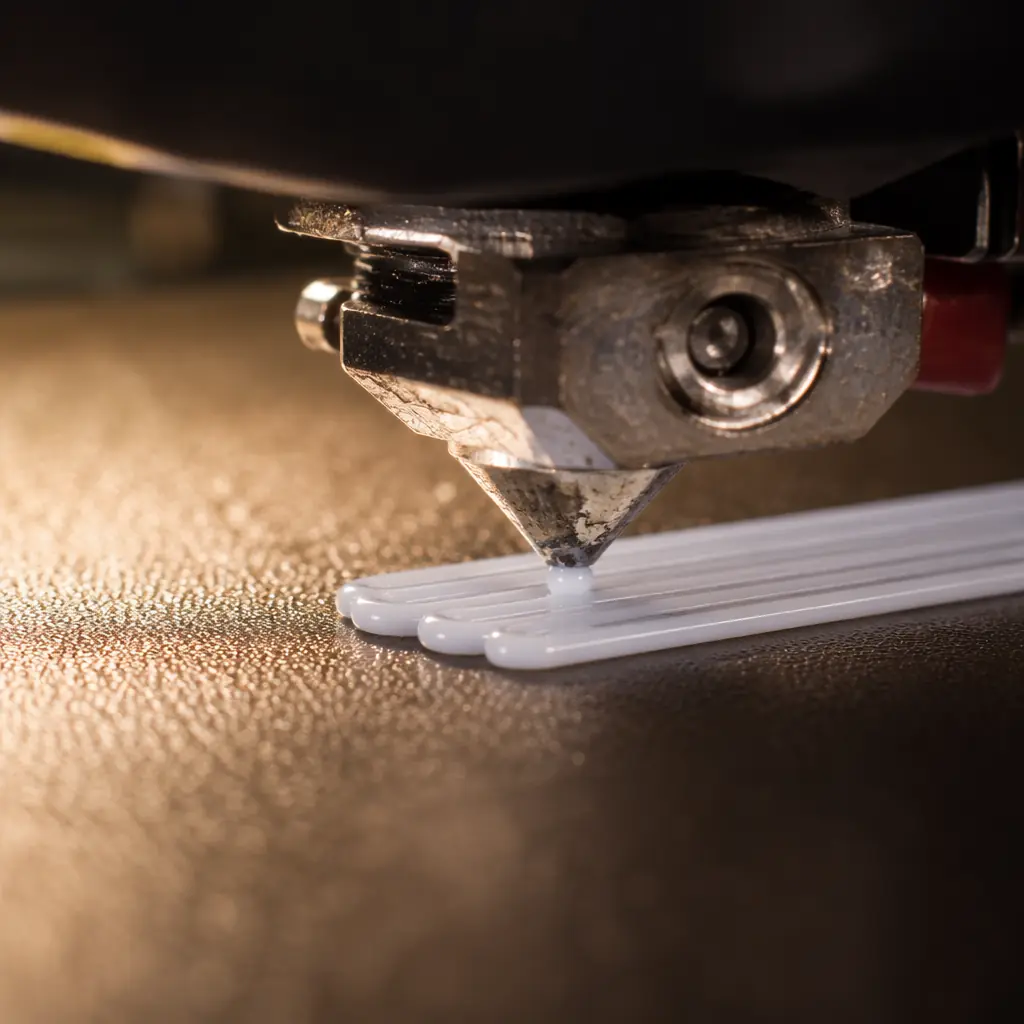

(1) Z-offset / first-layer height — 45% probability. The nozzle-to-bed distance at Z=0 determines whether molten filament is pressed into the build surface or laid on top of it. Most printers ship with a factory Z-offset that works for PLA on the included build plate, but any change in bed surface material, thickness, or temperature alters the optimal offset by 0.02–0.08 mm — enough to cause detachment. The fix is not a new build plate. It's teaching the customer to adjust the Z-offset during the first layer of a live print and observe the squish. Our auto bed leveling guide covers how different ABL technologies (inductive, BLTouch, strain gauge, load cell) affect first-layer consistency — a printer with ABL can still have a wrong Z-offset, and that distinction is critical for support triage.

(2) Bed surface contamination — 30% probability. Skin oils from handling the build plate deposit a mono-layer of fatty acids that PLA and PETG cannot bond to. The fix takes 15 seconds: wipe the bed with isopropyl alcohol (≥90% concentration) and a lint-free cloth. Support script: "Before we try anything else, clean the bed with rubbing alcohol and try again. I'll wait." If the problem disappears, you've just solved it without shipping a single part. The build surface itself — whether PEI, glass, G10, or carborundum — determines how forgiving the bed is to contamination. See our print surface comparison guide for the full tradeoff matrix, but the short version is: textured PEI is the most contamination-tolerant for PLA and PETG, smooth PEI gives better bottom-surface finish but requires more diligent cleaning, and glass with adhesive is the least contamination-sensitive but most maintenance-intensive.

(3) Bed temperature mismatch — 15% probability. PLA on a bed below 50°C will warp at the edges of any print larger than ~80 mm across. PETG below 70°C loses bed adhesion on overhangs. The support question: "What material are you printing, and what bed temperature is set in your slicer?" If the answer is "PLA, 40°C" — that's the problem. The fix costs nothing.

(4) Ambient draft / enclosure — 10% probability. In rooms with air conditioning vents, open windows, or ceiling fans, the temperature gradient across the print bed can exceed 15°C — enough to cause differential cooling and edge lift even with perfect first-layer adhesion. This is more common than most distributors realize. An enclosed printer eliminates this variable entirely. For open-frame printers, a $20 draft shield or simply relocating the printer away from the vent solves it.

Failure #2: Stringing & Oozing — The Hairy Print

Stringing is the second most common support call because it's visually obvious — fine plastic hairs stretched between towers, pillars, or any geometry with travel moves across open space. The customer sees it and assumes the printer is defective. In reality, stringing is almost always a settings problem — and one that a support agent can diagnose remotely in under two minutes.

Symptom cluster: Thin plastic "hairs" or "cobwebs" between separated parts of the print, small blobs at the start/end of travel moves, or wispy strands that brush off easily but ruin the cosmetic appearance.

Root cause ranking:

(1) Nozzle temperature too high — 50% probability. At temperatures above the filament's optimal range, the polymer's melt viscosity drops enough that gravity and nozzle pressure cause oozing during travel moves. PLA formulations vary: standard PLA prints cleanly at 190–200°C, "PLA Plus" or "tough PLA" formulations with impact modifiers typically need 200–210°C, and silk/shiny PLAs with elastomeric additives ooze above 195°C. The support response is not "your printer is defective" — it's "print a temperature tower and send me a photo of the result."

(2) Retraction settings insufficient — 35% probability. Retraction is the filament pullback the extruder performs before a travel move to relieve pressure in the nozzle. Direct-drive extruders typically need 0.5–1.5 mm of retraction at 35–45 mm/s; Bowden extruders need 4–7 mm at 40–60 mm/s. If the customer is using a generic slicer profile that wasn't tuned for their specific printer model, the retraction distance and speed are almost certainly wrong. Our direct drive vs Bowden guide explains why the retraction requirements differ so dramatically between the two architectures — the distance from the extruder gear to the nozzle is what determines how much filament "spring-back" compensation is needed.

(3) Moisture-contaminated filament — 15% probability. When filament absorbs moisture from ambient humidity (PLA absorbs roughly 0.3–0.5% by weight per week in 60% RH), the water trapped in the polymer matrix flashes to steam inside the nozzle, creating internal pressure that forces filament out during travel moves — producing a characteristic "popping" sound and strings with irregular diameters. The tell: ask the customer if they hear a faint popping or crackling sound during printing. If yes, the filament needs drying — a process covered in detail in our filament drying and storage guide. This is also an upsell opportunity: a filament dryer is a $40–60 accessory that solves a recurring problem and generates recurring revenue.

Failure #3: Layer Shifting — The Staircase Print

Layer shift is the failure that generates the most "this printer is broken" calls — and rightfully so, because it often indicates a genuine hardware issue. A layer shift occurs when the print head or bed loses its positional reference mid-print, and subsequent layers are deposited at a permanent offset — producing a "staircase" or "leaning tower" effect. Unlike bed adhesion or stringing, layer shift cannot be fixed by slicer settings alone. But not every layer shift requires a printer replacement. Here's how to triage.

Symptom cluster: Entire layers offset by 0.5–5 mm in the X or Y axis, producing a stair-step appearance. The shift is consistent (doesn't self-correct) and occurs at seemingly random layer heights. Belt-driven axes are most affected; Z-axis shifts are rare because the leadscrew's mechanical advantage resists skipping.

Root cause ranking:

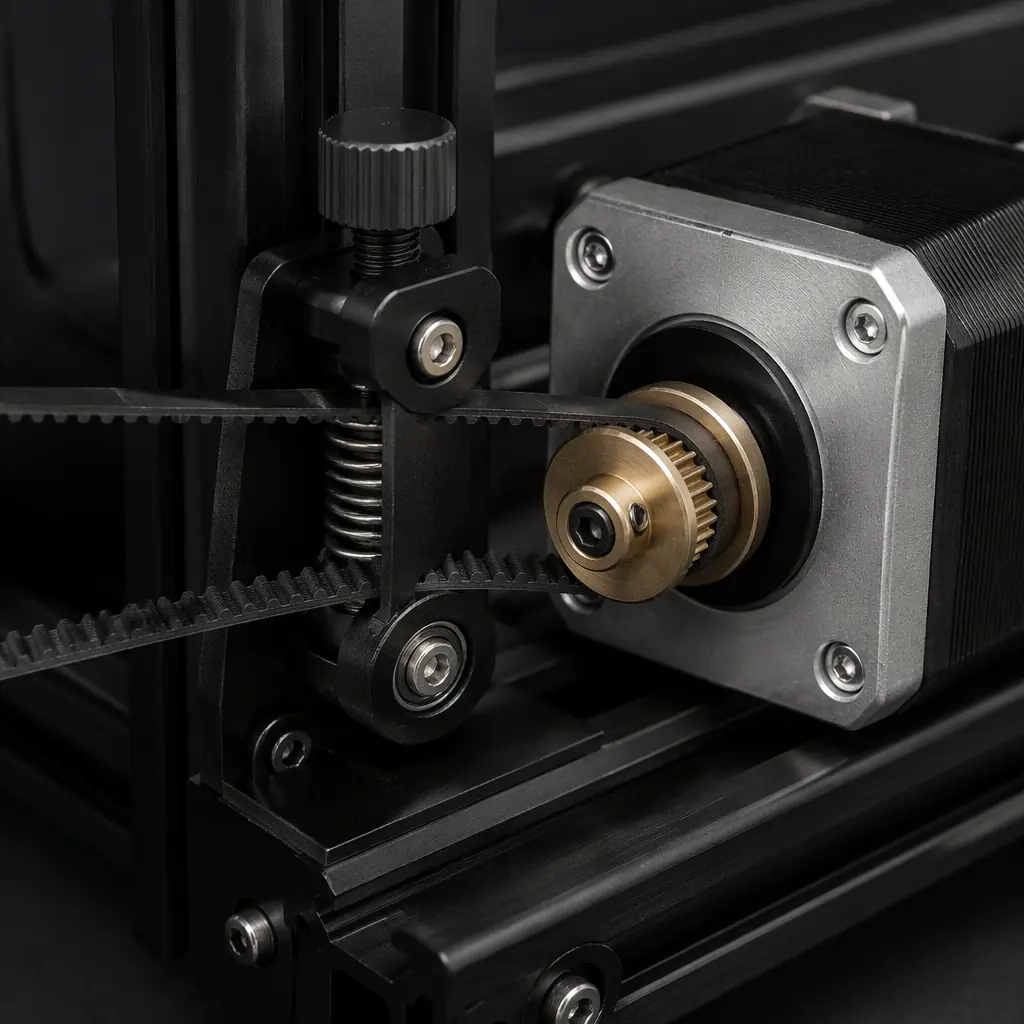

(1) Belt tension incorrect — 40% probability. A belt that's too loose skips teeth on the drive pulley during rapid direction changes (jerk/acceleration moves). A belt that's too tight increases friction in the idler bearing, causing stepper motor stall at high speeds. The correct tension for a 6 mm GT2 belt is approximately 25–35 Hz when plucked like a guitar string — a pitch that most people can learn to recognize after hearing it once. Support action: send the customer a 10-second video of a correctly tensioned belt being plucked, ask them to match the pitch. Our motion system guide covers how different motion components (V-wheels vs linear rails) affect the belt tension tolerance window — linear rails allow for higher belt tension without increased friction, which reduces layer shift probability at high speeds.

(2) Pulley grub screw loose — 30% probability. The GT2 timing pulley on the stepper motor shaft is secured by one or two small grub screws (typically M3 set screws). If either screw loosens — which happens gradually due to vibration over 50–100 print hours — the pulley rotates slightly on the motor shaft before engaging, producing a permanent offset. The diagnostic: ask the customer to gently wiggle the pulley by hand (printer powered off). Any rotational play between the pulley and the motor shaft is the problem. The fix: tighten the grub screw against the flat of the motor shaft with blue threadlocker (Loctite 242). This is a 2-minute fix that prevents a return — and it's entirely invisible unless someone knows to check.

(3) Stepper driver VREF / overheating — 20% probability. Stepper drivers regulate current to the motor coils. If the VREF (reference voltage) is set too low, the motor doesn't produce enough torque to overcome friction during rapid moves and skips steps. If VREF is too high, the driver overheats and enters thermal shutdown — a protection mode that cuts power to the motor for a fraction of a second, causing a permanent position loss. TMC2209 and TMC2225 drivers, now standard on mid-range printers, are particularly sensitive to VREF tuning because their StealthChop mode reduces audible noise at the cost of reduced torque at high speeds. See our stepper drivers guide for the torque-current-speed tradeoffs across driver architectures. The support protocol: if the printer uses socketed drivers (not soldered), a replacement driver PCB is a $5–8 part that the customer can swap in 5 minutes. This is far cheaper than a return.

(4) Travel speed / acceleration too aggressive — 10% probability. If the customer printed a calibration cube that came out perfect, but the first complex model with rapid direction changes layer-shifts, the slicer's acceleration or jerk settings exceed the mechanical limits of the motion system. The fix: reduce acceleration to 500–800 mm/s² and jerk to 8–10 mm/s for bedslinger printers, or 1500–3000 mm/s² for CoreXY machines. Our high-speed printing guide explains the relationship between acceleration, input shaping, and mechanical limits in detail.

Failure #4: Under-Extrusion & Clogging — The Weak, Gappy Print

Under-extrusion produces prints that look "spongy" — visible gaps between perimeter lines, thin top layers that don't fully close, and parts that snap easily along layer lines. The customer's complaint is usually "the print quality is bad" without more specific language, which is why this failure category generates the longest support calls: the agent has to extract the actual symptom before they can diagnose the cause.

Symptom cluster: Visible gaps between adjacent extrusion lines on flat surfaces, top layers that look like mesh rather than solid plastic, perimeters that don't bond to infill, and prints that feel light or crumble under hand pressure.

Root cause ranking:

(1) Partial nozzle clog — 35% probability. A partial clog — where a small particle of degraded polymer, dust, or burnt residue restricts but doesn't fully block the nozzle orifice — produces the most confusing symptom set: extrusion appears normal during priming but becomes erratic during actual printing because the back-pressure from the restricted orifice interacts with retraction cycles to create intermittent underextrusion. The classic tell: the print looks fine for the first 10–20 layers, then gradually develops gaps as the restriction accumulates more debris. Cold pulls (also called "atomic pulls") clear partial clogs 80% of the time without disassembling the hotend. Our nozzle and hotend guide covers the thermal dynamics of why partial clogs form and when to escalate from cold pull to nozzle replacement.

(2) Extruder tension / gear wear — 25% probability. The extruder's drive gear (hobbed gear or dual-drive gears) grips the filament and pushes it into the hotend. If the tension spring is too loose, the gear slips on the filament — producing intermittent underextrusion. If it's too tight, the gear chews into the filament, creating a groove that reduces grip on subsequent passes. On printers with plastic extruder arms (common in the sub-$300 segment), the arm itself can develop a hairline crack near the pivot point — invisible until the extruder is disassembled — that reduces tension gradually over time. The support check: ask the customer to watch the extruder gear during printing. If the gear is turning but the filament isn't moving smoothly, the tension arm is the problem. A metal extruder upgrade is a $15 part that permanently solves this failure mode — and every distributor should stock them.

(3) Heat creep — 20% probability. Heat creep occurs when the hotend's heat break — the thin metal tube between the heater block and the heatsink — fails to contain the thermal gradient. The melt zone extends upward into the cold zone, filament softens prematurely, and the extruder has to push softened plastic through a partially obstructed path. The result looks identical to a partial clog but has a different root cause: insufficient heatsink cooling. The diagnostic: ask the customer if the problem gets worse the longer the printer runs. Heat creep develops over 30–90 minutes as the heatsink saturates. A printer that prints perfectly for the first hour and then gradually under-extrudes has heat creep, not a clog. The fix: verify the hotend cooling fan is running at full speed and is oriented correctly (blowing onto the heatsink, not away from it).

(4) Filament diameter inconsistency — 10% probability. Budget filament spools occasionally have sections where the diameter deviates beyond the ±0.05 mm tolerance that most slicers assume. A section that's 1.65 mm instead of 1.75 mm means the extruder is pushing 11% less plastic than expected — producing visible underextrusion for the duration of that spool section. The diagnostic: ask if the problem is consistent across different spools or filaments. If it only happens with one specific spool, the spool is the problem, not the printer.

(5) Moisture-degraded filament (again) — 10% probability. Wet filament doesn't just cause stringing — it also causes underextrusion because the steam bubbles inside the nozzle create intermittent pressure drops. The same popping sound and the same fix apply: dry the filament. The recurrence of moisture as a root cause across multiple failure categories is why a filament dryer is the single highest-ROI accessory a distributor can recommend. For a deep dive on moisture physics in polymer filaments, see our filament drying guide.

Failure #5: Warping & Dimensional Accuracy — The Print That Curls

Warping is bed adhesion's more subtle cousin. The print stays on the bed — technically — but the bottom corners curl upward, the part no longer sits flat on a table, and the dimensional accuracy of the bottom 5 mm is compromised. For functional prints that need to mate with other parts, 0.5 mm of warp at the base is a failed part. For aesthetic prints, it's a cosmetic defect that customers notice immediately.

Root cause: Thermoplastic contraction. When molten filament at 200°C cools to room temperature, it shrinks — PLA by approximately 0.3–0.5%, ABS by 0.8–1.2%, nylon by 1.5–3%. The bottom layers, which are in contact with a 50–60°C heated bed, cool more slowly than the upper layers, which are exposed to ambient air. This differential cooling creates internal stress that pulls the bottom corners inward and upward. The physics is unavoidable; the solution is managing the thermal environment.

Support protocol for warping: (1) Verify bed temperature matches the material column above. (2) If printing ABS/ASA/PC on an open-frame printer without enclosure — that's the problem 90% of the time. Recommend an enclosure, either the manufacturer's enclosure kit or a third-party solution. (3) For PLA warping, first check for drafts (Step 1 in the bed adhesion diagnostic). If the environment is draft-free, increase the first-layer bed temperature by 5°C and add a 5 mm brim in the slicer — a brim increases the contact area between the print and the bed, distributing the warping force over a larger surface. (4) For dimensional accuracy issues on functional parts, calibrate the printer's X/Y/Z steps per millimeter using a 20 mm calibration cube and digital calipers — this is a 15-minute procedure that every distributor should document in a one-page PDF for their resellers.

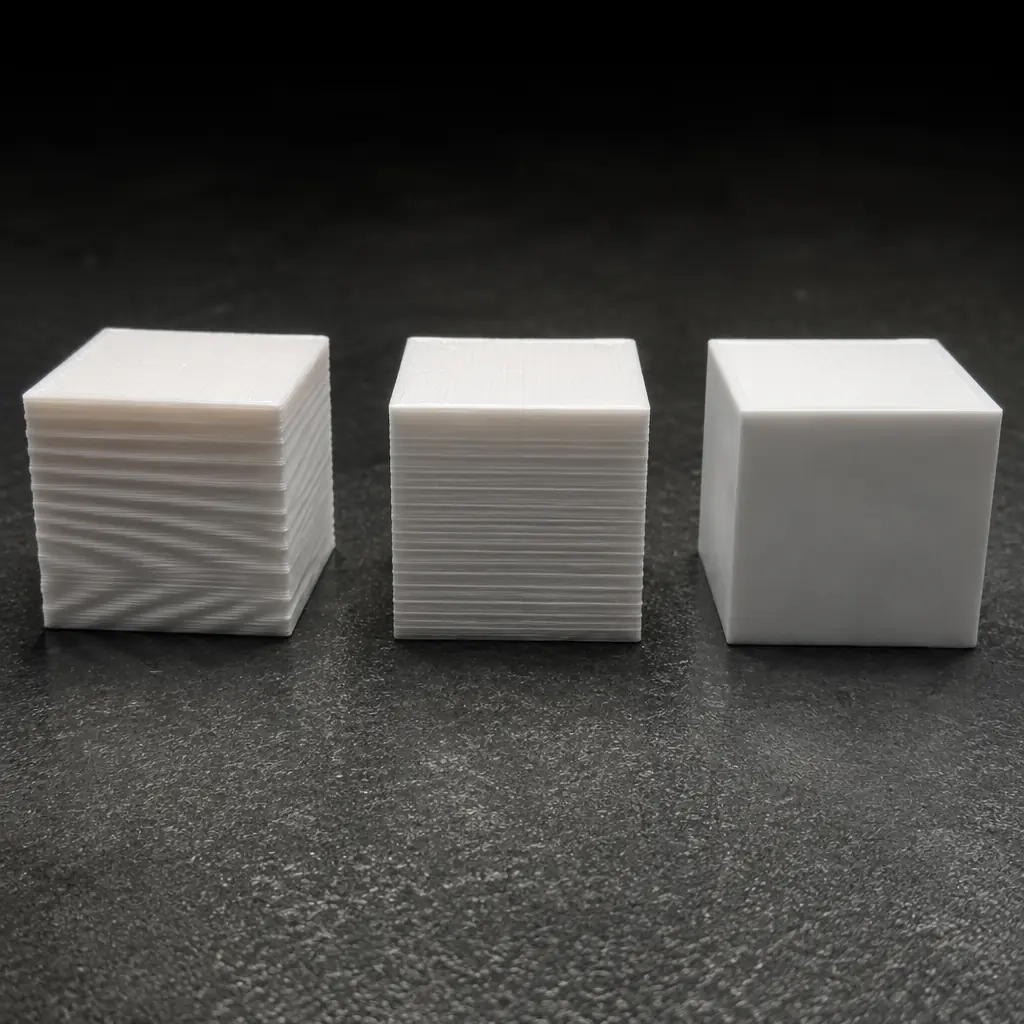

Failure #6: Surface Defects — Ringing, Z-Banding & Blobs

Surface defects fall into three distinct categories with different root causes. Customers describe them all as "the surface looks bad" or "there are lines on my print." The support agent's job is to identify which category based on the pattern.

Ringing / Ghosting (vertical surface waves): Ripples or echoes on vertical surfaces that appear after sharp corners or direction changes. The pattern looks like a decaying sine wave radiating outward from the corner. Root cause: mechanical vibration from rapid acceleration/deceleration that hasn't been damped before the next perimeter is printed. The fix: reduce acceleration, enable input shaping (if the printer firmware supports it — Klipper firmware does, recent Marlin builds do via M593), or tighten the frame bolts. The pattern is always perpendicular to the axis that generated the vibration — horizontal ripples = Y-axis ringing, vertical ripples = X-axis ringing. Our high-speed printing and input shaping guide covers the frequency-domain approach to eliminating ringing entirely.

Z-banding / Z-wobble (horizontal lines at regular intervals): Evenly spaced horizontal lines across the entire print surface, repeating every 2–8 mm. Root cause: the Z-axis leadscrew is not perfectly straight or is misaligned with the motor coupler, causing the print head to oscillate vertically with each leadscrew rotation. If the banding interval matches the leadscrew pitch (typically 2 mm for Tr8x2, 4 mm for Tr8x4, or 8 mm for Tr8x8), the leadscrew is the problem. Fix: install a flexible coupler between the motor and leadscrew, or an Oldham coupler that decouples angular misalignment from vertical motion. Anti-backlash nuts reduce but don't eliminate Z-banding.

Blobs / Z-seam (random bumps at layer change points): Small bumps or pimples on the surface, most visible on cylindrical or curved surfaces where the layer start/end point (the "Z-seam") is visible. Root cause: over-extrusion during the pressure buildup at the start of a new layer, or oozing during the travel move from the end of one layer to the start of the next. The fix: tune retraction extra prime amount (set to 0 or negative for direct-drive extruders), enable "wipe" or "coast" in the slicer to relieve nozzle pressure before a travel move, and use the slicer's seam-painting tool to hide the seam on an inside corner or less visible face.

Failure #7: First-Layer Artifacts — The "Elephant's Foot" and the Ripple

Two first-layer-specific defects deserve their own section because they're the most common reason a customer opens the box, prints the test file, and immediately files a support ticket.

Elephant's foot (bulging first layer): The first 2–3 layers are visibly wider than the rest of the print, producing a flared base. Root cause: the nozzle is too close to the bed, and the excess material from the compressed first layer squishes outward beyond the intended perimeter. Combine this with bed temperature that's too high (keeping the first layers soft while upper layers cool and contract), and the effect amplifies. Fix: increase Z-offset by 0.02–0.05 mm, reduce bed temperature by 5°C after the first layer (most slicers have a "first layer bed temperature" and "other layers bed temperature" setting — use them). For advanced users, slicers like PrusaSlicer and OrcaSlicer have an "elephant foot compensation" setting that shrinks the first layer by a configurable amount.

First-layer ripples / waves: The first layer has visible ridges or waves running perpendicular to the extrusion direction, looking like a plowed field viewed from above. Root cause: over-extrusion on the first layer — the nozzle is extruding more plastic than the available gap between the nozzle and bed, forcing excess material sideways into adjacent extrusion lines. Fix: reduce first-layer flow rate (or "initial layer flow") to 95–98%, or increase Z-offset slightly. The distinction from elephant's foot: ripples appear across the entire first-layer surface, while elephant's foot only affects the perimeter.

Failure #8: Layer Adhesion Failure — The Print That Delaminates

Layer adhesion failure is the most dangerous failure category because it's often invisible until the part is subjected to mechanical stress. The print looks perfect — smooth surface, sharp details — but snaps cleanly along a layer line when handled. This is not a cosmetic defect; it's a structural failure that, in functional parts, can cause injury or equipment damage. For distributors selling into education, engineering, and prototyping markets, layer adhesion failure is a liability issue, not just a support issue.

Symptom cluster: Prints that break easily along horizontal layer lines, perimeters that separate from each other when flexed, parts that feel "crumbly" or delaminate when removing supports.

Root cause ranking:

(1) Nozzle temperature too low — 45% probability. Printing at the bottom of the manufacturer's recommended range produces the best surface finish and least stringing — but the worst layer adhesion. Every 5°C increase in nozzle temperature improves layer adhesion strength by approximately 8–15% (for PLA and PETG), up to the point where the polymer begins to thermally degrade. The tradeoff: hotter = stronger but more stringing and less dimensional accuracy. For functional parts, print at the upper end of the recommended range. For cosmetic parts, the lower end is acceptable. See our filament stocking guide for the optimal printing temperature windows across materials.

(2) Part cooling fan too aggressive — 30% probability. The part cooling fan blows ambient air onto the just-deposited plastic, improving overhang quality and bridging at the cost of layer adhesion. For materials that crystallize slowly (PETG, ABS, ASA, PC), the fan should be at 20–40% or completely off, depending on geometry. A common mistake: using the same fan settings for PETG that worked for PLA — PLA tolerates 100% fan, PETG delaminates at 100% fan. The support script: "Try the same print with the part cooling fan off or at 30%. If the layer adhesion improves, we've found the problem."

(3) Printing speed too high for the hotend's volumetric flow limit — 15% probability. Every hotend has a maximum volumetric flow rate — the amount of plastic it can fully melt per second, measured in mm³/s. A standard PTFE-lined hotend (like the Creality MK8 style) maxes out at approximately 10–12 mm³/s for PLA. If the slicer's combination of layer height, extrusion width, and print speed demands 15 mm³/s, the filament doesn't fully melt — the core of the extruded line is below printing temperature and cannot bond to the previous layer. The result: a print that looks fine externally but has zero inter-layer strength. The fix: reduce print speed or increase nozzle temperature to expand the hotend's melting capacity. For advanced diagnostics, calculate the required volumetric flow: layer height × extrusion width × print speed (all in mm). If the result exceeds the hotend's rated flow, reduce speed.

(4) Ambient temperature too low — 10% probability. Printing in a cold room (below 18°C / 65°F) accelerates layer cooling beyond what the hotend can compensate for, especially on tall, thin parts where each layer has a small thermal mass. An enclosure isn't just for ABS — it improves PLA layer adhesion by 10–20% in cold environments by maintaining a stable ambient temperature around the print. The fix for distributors: recommend that resellers operating in cold climates or unheated spaces add an enclosure as a standard accessory with every printer sold.

Building a Distributor Support Diagnostic System

The eight failure categories above cover approximately 85% of print-quality support tickets. The remaining 15% are edge cases — filament tangles on the spool, SD card corruption, power supply brownout during print, and genuine component failures (dead stepper driver, failed thermistor, broken heater cartridge). Those edge cases can't be diagnosed by a script — they require escalation to a technician. But the 85% can be.

Here is the system that works at distributor scale:

Tier 0: Self-service PDF. A single-page, single-sided document — with photos, not paragraphs — showing the eight failure types and the one thing to try first for each. Print it, laminate it, put it in every box. The customer who learns that cleaning the bed with alcohol fixes 70% of their adhesion problems will never file a support ticket for adhesion. For a distributor moving 500 printers per month, this one page eliminates 100–150 support calls per month. The economics are self-evident.

Tier 1: Decision-tree scripts. The eight diagnostic questions in this guide (one per failure category) form a support script that a non-technical agent can follow. The script follows the same structure for every call: (a) identify the symptom category from the customer's description, (b) ask the diagnostic question for that category, (c) identify the most likely root cause from the ranked list, (d) prescribe the fix. Each fix should include "if this doesn't solve it, try [next most likely cause]." The script should never end with "I don't know" — it should end with "let me escalate this to our technician, who will call you back within 24 hours."

Tier 2: Consumable replacements as upsells. When a support call resolves to "you need a new nozzle" or "your PTFE tube is worn" or "your build plate is end-of-life," that is not a warranty claim — it is a consumable sale. Distributors who frame replacement nozzles, PTFE tubes, and build plates as "maintenance items" (like brake pads on a car) rather than "defects" convert support costs into revenue. A customer who receives a free nozzle from warranty after 200 print hours learns that nozzles are free. A customer who receives a nozzle recommendation with a link to buy a 5-pack for $12 learns that consumables are part of the ownership experience. The difference in lifetime customer value between these two framings is approximately 3×. For a complete analysis of the consumables revenue model, see our consumables and accessories bundling guide.

Tier 3: Escalation with data. By the time a ticket reaches Tier 3, the Tier 1 agent should have collected: the symptom category, the result of the diagnostic question, the two fixes that were attempted and their results, photos of the failed print, and the customer's slicer settings (exported as a .3mf or .json file). A technician receiving this data packet can diagnose 90% of remaining cases remotely. Without it, they're starting from zero — and the customer has already spent an hour on the phone being frustrated.

The distributor who implements even Tiers 0 and 1 — the laminated troubleshooting card and the scripted diagnostic questions — will reduce their return rate by an estimated 40–60% within the first quarter. For a distributor doing $500,000 in annual consumer printer revenue at a 22% margin, an 11% return rate costs $12,100 in direct margin loss plus roughly $8,000 in shipping, restocking, and support labor — $20,000 total. Reducing returns by 50% recovers $10,000 in profit. The investment to implement Tiers 0 and 1: approximately 20 hours of work to produce the PDF and train the support team. ROI in the first month.
