Additive Manufacturing Readiness Level — A 7-Gate Scale Buyers Can Actually Verify

The Question Behind "Are You Ready for Our Volume?"

A buyer with a validated design and a forecast of 800 parts a month asks a supplier a short question and gets a short answer: yes. Six weeks later the first month ships 610 parts, the second ships 540, and the conversation turns into a negotiation about expedite fees. Nobody was lying. The supplier could make the part. What nobody had established is whether the supplier could make it at a rate, with a stable process, for a customer who would keep changing the mix.

Aerospace has used technology readiness levels for decades, and manufacturing readiness levels grew out of the same discipline. Additive production has a specific problem with both: the hardware is often mature while the production system around it is not, so a part can be produced on a level-9 machine by a level-3 operation. What a buyer actually needs to assess is the readiness of the production system, not the readiness of the printer.

This article sets out a seven-gate scale built for that purpose, with the evidence a buyer can ask to see at each gate and the failure that is still possible one level up. It is written from the supplier side of the table, which is also the side where inflated self-assessment usually originates.

What Is an Additive Manufacturing Readiness Level?

An additive manufacturing readiness level is a gate on a scale from 1 to 7 that describes how much of the production system, not just the process, has been demonstrated: a frozen process window, measured capability at the target rate, documented material control, a repeatable inspection method, and a production plan that survives variation in mix and demand. Each level requires evidence a buyer can inspect, and each level leaves a named risk that only the next level removes.

Why Aerospace Readiness Scales Do Not Transfer Cleanly

Classical technology readiness levels were designed for a single system moving toward a defined mission, with a manufacturing readiness scale running alongside it. Additive part production differs in three ways that break the mapping.

• The machine is not the constraint. A printer rated for continuous operation can still be fed by an operation with no shift pattern, no queue discipline and one person who knows the slicer. Readiness lives in labour and flow, not only in capability.
• Rate is a mix problem, not a volume problem. Printing 800 identical parts a month is a different engineering task from printing 200 each of four variants, because changeover, plate planning and inspection setup dominate. A supplier ready for the first is not automatically ready for the second.
• Capability is per feature, not per part. A process that holds a 0.15 mm envelope on an outer wall may not hold it around a small bore. Readiness at part level hides variation across the drawing.

So the scale below is deliberately observable. Every gate names artefacts, not adjectives, and every gate names the risk that survives it.

The Seven Gates, With the Evidence a Buyer Can Ask For

Read the middle column as the request you can put in an email. A supplier who can produce that artefact within a working day is at that level or above. A supplier who describes it in prose is somewhere below it.

Level	Observable evidence	Risk that survives this gate
1. Capability shown	One good part, one machine, one operator, no record of parameter set	Repeatability unknown; the part may not be reproducible next week
2. Process window defined	Parameter set under revision control; a design-of-experiments or trial log identifying the window edges	Window defined on one material lot; lot-to-lot material variation untested
3. Repeatability measured	Capability study on the agreed critical features across three consecutive builds, Cpk reported per feature	Capability measured on one machine only; fleet behaviour unknown
4. Material control in place	Incoming lot verification records, drying logs, reuse policy with a stated cycle limit, supplier declarations per lot	Consistent inputs, but inspection method still operator-dependent
5. Inspection system repeatable	Gauge R&R or attribute agreement study on the inspection step; written sampling plan; calibration records	Measurement is trustworthy, but rate has not been demonstrated
6. Rate demonstrated	Four consecutive weeks at the target weekly rate, with yield, scrap, rework and downtime reported honestly	Rate proven at the current mix; a mix change may break it
7. Production system controlled	Control plan, capacity model that accounts for changeover, PCN route, trained second shift, documented contingency for machine loss	No gate removes commercial or demand risk, only production risk

Rate Readiness: Parts Per Week, Not Per Month

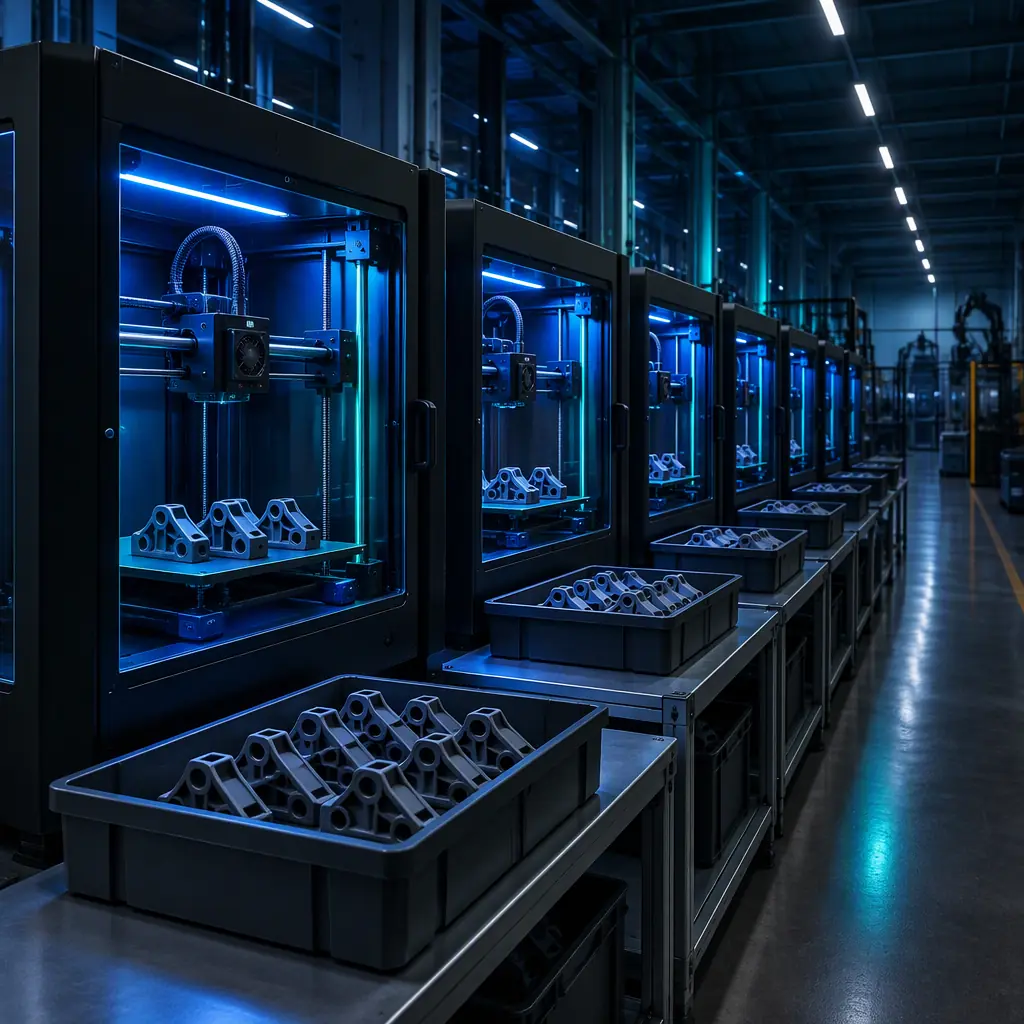

Monthly output figures hide the constraint that matters. A print cell with four machines running a 14-hour job can theoretically deliver around 140 parts a month per machine, but only if the plate is full, the queue never starves, and someone is present to clear and restart. Real output on the same machines typically lands 20 to 35% below the arithmetic, and the gap is usually changeover, failed first layers, and the hours between shifts.

Three numbers turn rate readiness into something auditable:

• Weekly demonstrated output at the target mix, over at least four consecutive weeks, with the shortfall explained rather than smoothed.
• Changeover time between part families, measured from last part off the plate to first good part of the next family. This number decides whether a high-mix order is profitable or punishing.
• Recovery rate after a machine loss, expressed as hours to return to the prior week's output when one machine is removed from the pool. A cell that cannot absorb one failure is running at its ceiling, not its capacity.

The scheduling side of that is a discipline in its own right, and the rules we use for queue discipline and backlog-based lead time commitments are set out in our print farm job scheduling guide. The station-level constraint that usually caps weekly output sits in line balancing and bottleneck analysis, and it is almost never the printer.

Who Signs Each Gate

A readiness level is only useful if a named person owns it. In a worked production system, the signatories are predictable and the buyer can ask for them by role.

The pattern is deliberate: the gate moves from engineering to quality to operations as the risk shifts from "can it be made" to "can it be made repeatedly" to "can it be made at rate". A supplier where the same single person signs all six is a supplier where the gates are a formality.

Where Self-Assessment Inflates

Three specific inflations appear in almost every supplier self-assessment, and a buyer can test for them cheaply.

• Claiming level 3 from one build. Repeatability requires at least three builds separated in time, because a single build cannot distinguish process capability from a lucky day. Ask for build dates.
• Claiming level 5 from a good CMM report. A measurement system study is about the measurement, not the part. Asking for the gauge R&R result on the inspection step, rather than on the part, exposes the difference. Our guide to SPC, Cpk and gauge R&R for printed parts covers how that study is structured when the printer itself contributes to repeatability.
• Claiming level 6 from installed capacity. Capacity is arithmetic; demonstrated rate is history. The two numbers are usually 25 to 40% apart, and the gap is the entire question.

How the Gates Line Up With the Paperwork Buyers Already Ask For

Readiness levels are not a parallel universe. They map onto documents that most industrial buyers already request, which makes the scale usable without a new procurement process.

• Levels 2 and 3 are the substance behind a pilot lot capability validation. That study is the evidence pack for level 3, and the thirty-part sample size question is answered there.
• Levels 4 and 5 are what an end-use component qualification assumes exists before it starts. Qualification on an uncontrolled process produces a document, not a capability.
• Level 6 and 7 are the ground the prototype to production scale-up checklist covers as a transition, and the same evidence is what a PPAP submission packages for an automotive buyer.
• The daily operating evidence at level 7, a work order and job traveller per lot, is described in our work order and job traveller guide.

The mapping matters commercially: a buyer who asks for a PPAP from a level-3 supplier will receive a well-formatted document describing a capability that does not yet exist. Sequencing the two correctly saves that buyer a quarter.

What a Distributor Should Ask at Each Level

For a distributor qualifying a factory to supply their own brand, the questions change with the level being claimed, and the useful ones are narrow.

• At level 3: which features were in the capability study, and what is the Cpk on the tightest one? A supplier who studied only overall length has studied the easy feature.
• At level 4: what is the reuse limit on unfused powder or on regrind, and how is it enforced at the machine rather than in a policy document?
• At level 5: who performs inspection, with what instrument, and when was the measurement system last studied? A single inspector with no agreement study is a single point of failure disguised as a control.
• At level 6: what was the worst week in the last quarter, and what caused it? The answer names the real constraint.
• At level 7: what happens to my orders when one machine goes down, and who decides the reallocation? A documented contingency that has been exercised once is worth more than a plan that has never run.

None of these questions require a new audit format. They fit in the same site visit that a buyer already schedules, and the answers are quick to verify because each one points at a record rather than an opinion.

Reviewed by the Precise3D OEM & quality team. The seven-gate scale described here is a buyer-side framework assembled from manufacturing readiness practice and from production evidence we collect across our own print cells. Readiness levels are not a certification and do not by themselves satisfy any customer, regulatory or industry-specific qualification requirement; confirm the specific acceptance criteria for your part, market and customer before relying on a level assessment.
