Cleanroom Printing Without a Cleanroom — Building a Particle-Controlled Print Cell

The customer's requirement is usually stated as cleanliness and is actually a particle budget on the finished part. A printed optical mount, a dental model or a medical device housing does not need a classified room; it needs a defined number of particles above a defined size on a defined surface, reproducibly, with a record. That is a different problem from building a cleanroom, and it is one a distributor or a customer's own engineering team can solve at the bench.

This matters commercially because the requirement arrives from a customer's downstream process, and the supplier who can answer it with a measured number keeps the account. Where the customer's industry does need classification, the vertical context is covered in the semiconductor and cleanroom industry guide. This guide addresses the printing cell itself.

Where the Particles Actually Come From

People assume the printer is the contamination source. It is one source, and usually not the largest. The particle inventory of a print cell breaks down into sources that behave differently and therefore need different controls.

• Room air: the dominant source by count in any uncontrolled space. A room with 350,000 particles per cubic metre at 0.5 micron delivers them continuously to whatever surface is open.
• Operator: skin flakes, lint from clothing and hair shedding. A person standing at a bench generates particles at a rate that exceeds most printers by an order of magnitude while moving.
• Post-processing: support removal, sanding, blasting and cutting generate the highest local concentrations in the entire workflow, and they are frequently performed at the same bench as the printing.

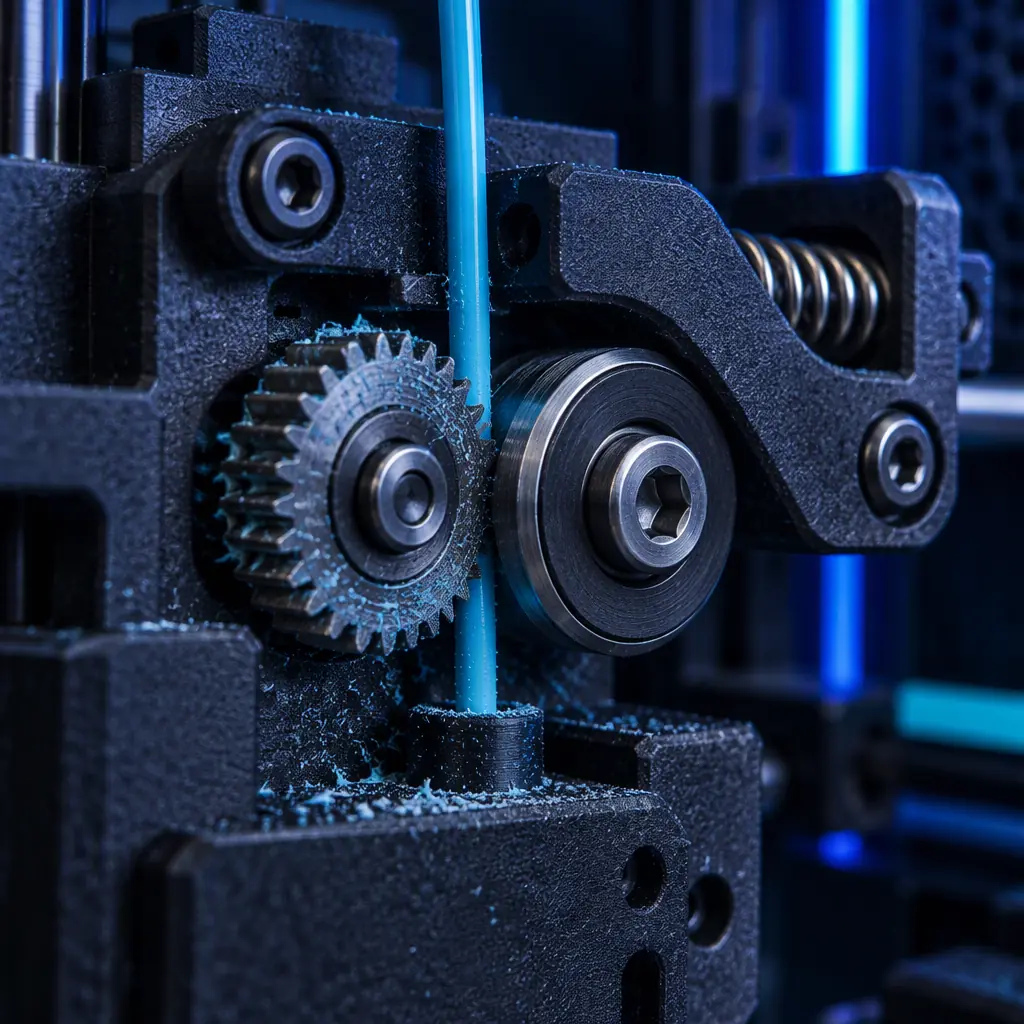

• The printer itself: filament dust from drive gears, belt and bearing wear, and for resin processes, aerosol from the vat. Enclosed printers emit less than open-frame units, but not zero.
• Packaging and handling: cardboard, foam and unwashed gloves reintroduce contamination at the point where all previous effort is discarded.

The practical reading of this list is that controlling the printer while ignoring the operator and the post-processing step produces a cell that measures well and delivers contaminated parts. For optical and eyewear parts the surface requirement is driven by finish rather than biology, and the tolerances that sit alongside it are covered in the eyewear and optics industry guide. For dental and medical-adjacent work the cleaning requirement is usually accompanied by a validation obligation, which the medical-grade validated process guide addresses separately.

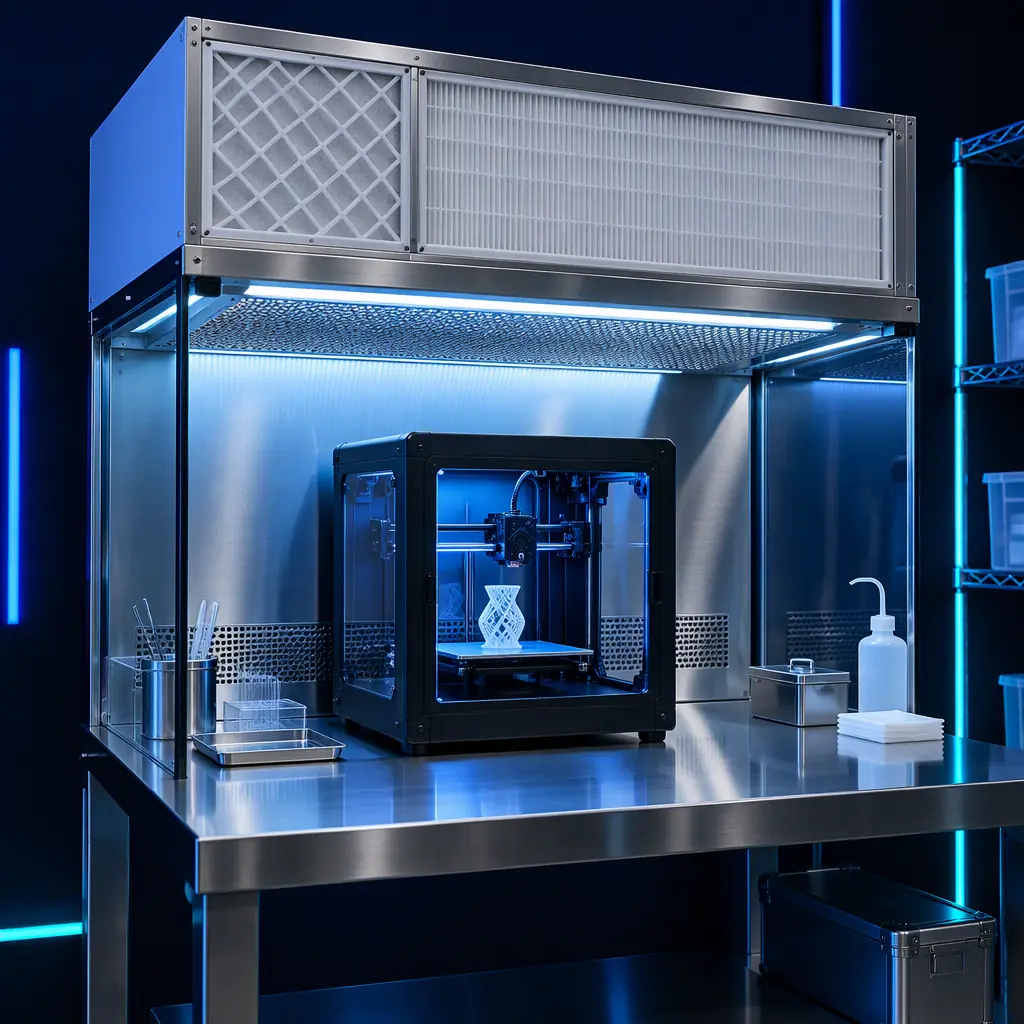

The Print Cell: Laminar Flow Over the Critical Zone

The workable compromise between an open bench and a cleanroom is local protection: filter the air immediately above the critical zone and sweep it downward across the part, rather than trying to clean the room. This is the principle behind every laminar flow bench, and it can be applied to a printer for a fraction of the cost of a classified room.

Two design rules decide whether local protection works. First, the hood must be large enough that the protected zone extends beyond the part, because the flow is not perfectly uniform and the edges are where contamination enters. Second, nothing may sit between the filter face and the part, because any obstruction creates a wake and a wake is a contamination trap. This includes the operator's hands, which should approach from the side rather than across the flow.

For resin processes, add an activated carbon stage. The reason is not particles but odour and volatile organic compounds released from the vat, which the particle filter does not address and which dominate the operator's perception of air quality. The relationship between filtration stages and what each one removes is set out in the fume extraction and filtration guide.

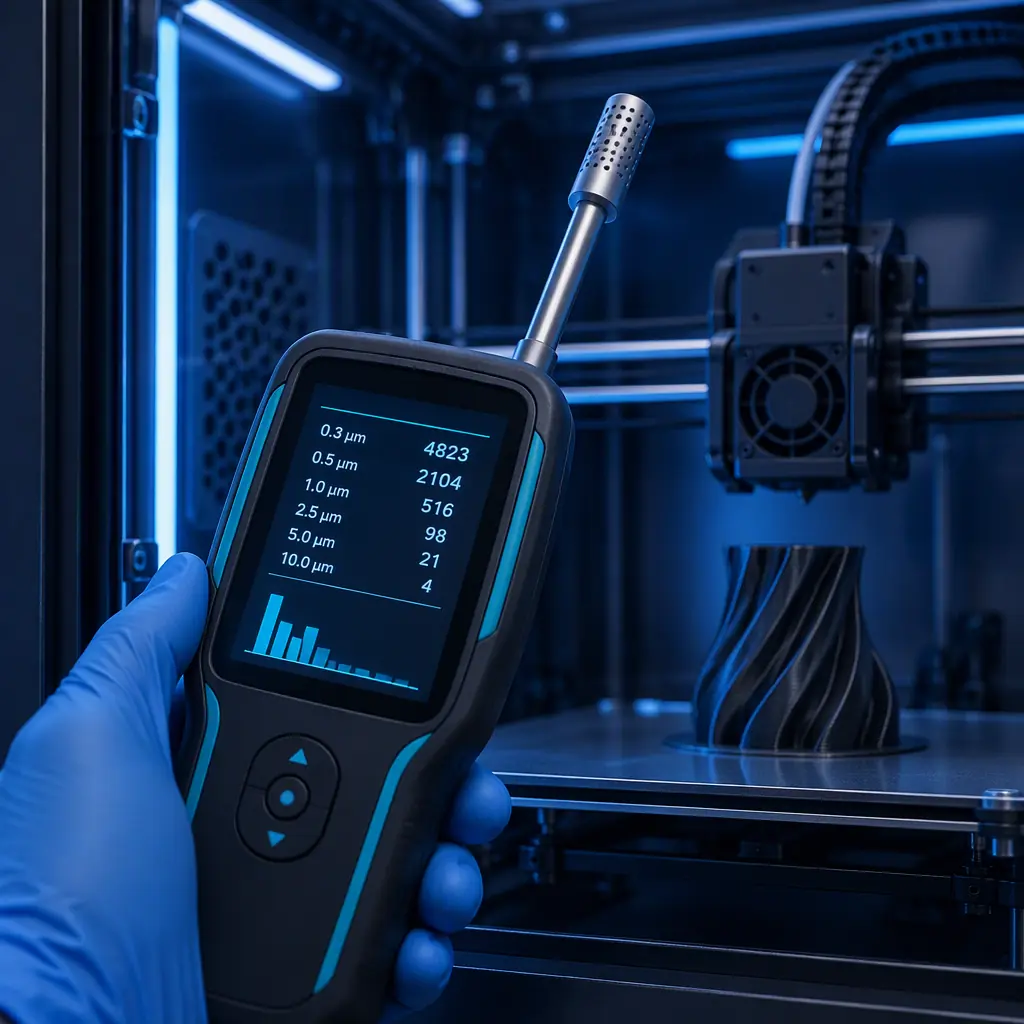

Verifying the Cell by Count, Not by Appearance

A cell that looks clean is not a cell that is clean. Verification means counting particles, and the count has to be taken at the critical location, not in the room at large. A room-level measurement tells you about the room and can easily be an order of magnitude better than the air immediately around the part.

The measurement must be taken with the printer running at its production profile and the operator present in their normal working position, because a cell verified empty and still is a cell that has never been measured in the state that matters. ISO 14644-1 defines the sample count and the statistical treatment of the result, and the report should cite the classification or the raw counts against the customer's stated limit, whichever their process system requires.

Changeover: The Step That Decides the Result

Contamination control fails at transitions, not in steady state. Moving between materials, between part types, or between a dirty and a clean operation is where particles cross a boundary that the hood was designed to hold.

• Separate the dirty operations physically. Support removal, sanding and cutting should happen in a different area, ideally under extraction. Doing them at the print bench contaminates the bench and the printer for the next job.
• Clean the cell between jobs, not between shifts. Wet-wipe surfaces with a lint-free wipe and an appropriate solvent; do not use compressed air, which resuspends settled particles and redistributes them.
• Wash or change gloves at the cell boundary. Gloves that have touched support material, cardboard or a door handle are a transfer mechanism into the protected zone.
• Purge the hood after loading. Allow the downflow to run for several minutes with the door closed before opening the chamber, so the disturbance created by loading is flushed.
• Log what changed. Material, operator, filter hours and job identity, so that a contamination event can be traced to a change rather than argued about.

Where the Limits Are

Local protection is the right answer for most customers, and it is not the right answer for all of them. Three situations should be routed to a classified room or a specialist provider, and recognising them early saves a project that would otherwise fail at qualification.

The last point is the honest one to give a customer. A well-built local cell with an H13 hood and disciplined changeover performs in the ISO Class 7 to 8 range at the part, which covers optical components, dental models, electronics housings and general precision parts. It will not reach Class 5, and it will not satisfy a sterile requirement, because a hood filters the air arriving at the part and does nothing about particles generated within the chamber or released by handling after printing.

Bottom Line

Clean printing is a particle budget, not a room classification, and the budget is met by filtering air immediately over the critical zone, controlling the operator and the post-processing step, and verifying the result with a counter placed at the part while the printer runs. An H13 hood with correct downflow velocity, a pre-filter, and a written changeover procedure delivers Class 7 to 8 equivalent performance at a small fraction of cleanroom cost, which is enough for the majority of precision and medical-adjacent parts. Be explicit about the three cases it cannot cover, because a customer who learns the limits from you will trust the number you do provide. The materials side of contamination, including ESD and surface resistance requirements for tooling, is covered in the ESD control guide, and the vertical requirements that drive many of these enquiries are set out in the semiconductor and cleanroom industry guide.

Reviewed by the Precise3D engineering & OEM team. Print cell specifications, particle counting protocols and the ISO 14644-1 reporting template ship with the OEM programme and are documented in the engineering resource centre.
