FDM 3D Printing Design Rules: The DFAM Guide for Production Parts

FDM is the only production technology where the designer, not the machine, determines most of the final part's strength, accuracy and surface quality. A well-designed FDM part can hold ±0.15 mm over 100 mm, survive years of cyclic load, and pass as an injection-molded component; an identically printed part with the same material and the same slicer settings fails in weeks when the geometry ignores the process. This guide collects the complete DFAM ruleset for FDM — wall thickness, minimum features, overhangs, bridges, clearances, orientation and the material-specific tables — as the technical foundation for the end-use functional parts conversation and the accuracy math in our tolerances & dimensional accuracy guide.

Why FDM Parts Fail: The Physics the Designer Must Respect

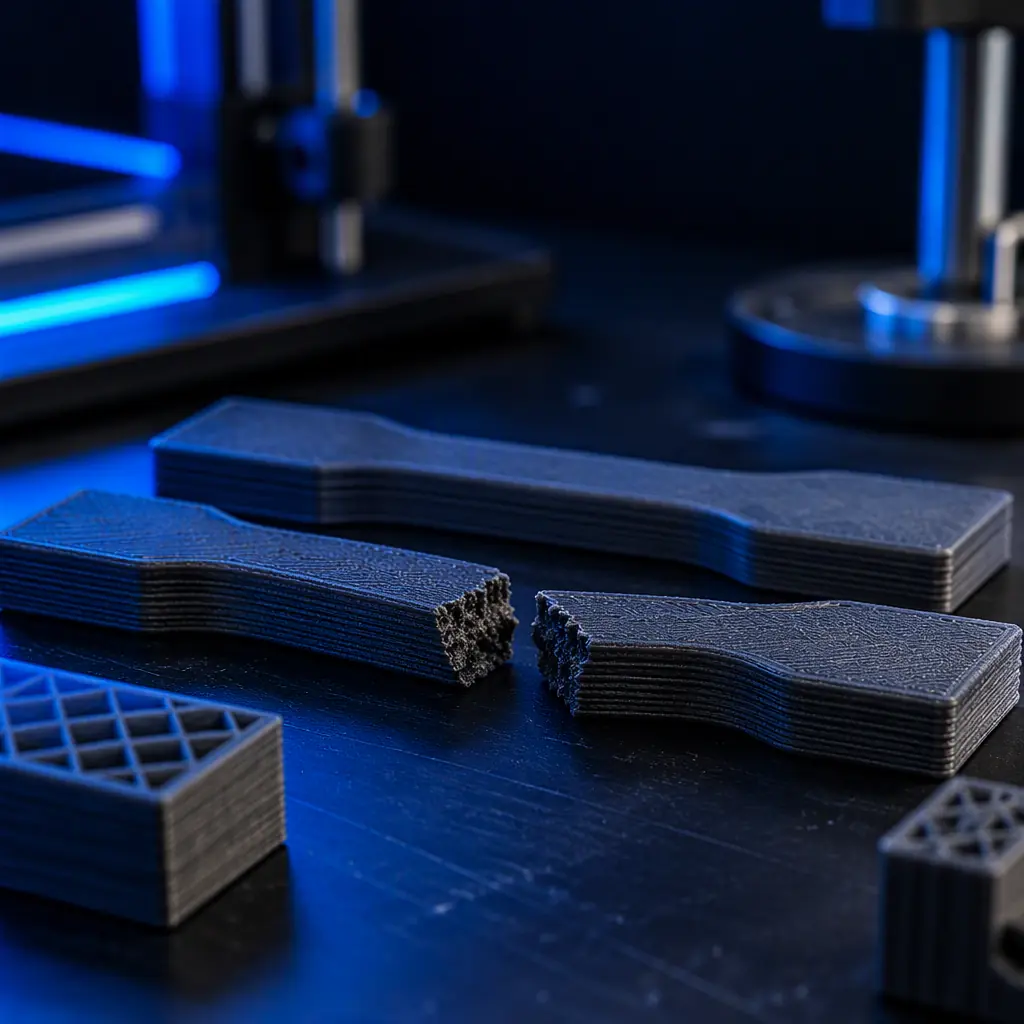

FDM builds parts from fused polymer beads laid down in layers. That process creates two structural facts that CNC and injection molding do not have. First, anisotropy: layers adhere to each other at roughly 70-85% of the strength of the material itself, so a part loaded parallel to its layers is measurably stronger than one loaded across them — tensile tests on PLA show 45-55 MPa in the XY plane versus 30-40 MPa in Z. Second, thermal history: every layer cools and shrinks as the next one is deposited, which is why large flat areas warp, why sharp corners lift, and why a 100% infill part is often weaker than a 40% infill part — the internal stress of a solid part distorts it and can delaminate it. The design rules below exist to work with these physics, not against them. The strength data behind these numbers is developed in our infill patterns & strength guide, and the layer-adhesion math is covered in our accuracy guide.

The practical consequence: a designer who specifies a part with the wrong orientation, too-thin walls, or an unsupported 60° overhang has already decided the outcome in CAD. The printer, the material and the calibration are then irrelevant. This is why DFAM training — not hardware specs — is the highest-leverage service a distributor can offer engineering accounts, and why the demo framework in our B2B sales demo playbook always includes a "design review" of the customer's own part.

Wall Thickness & Perimeters: The Strength Math

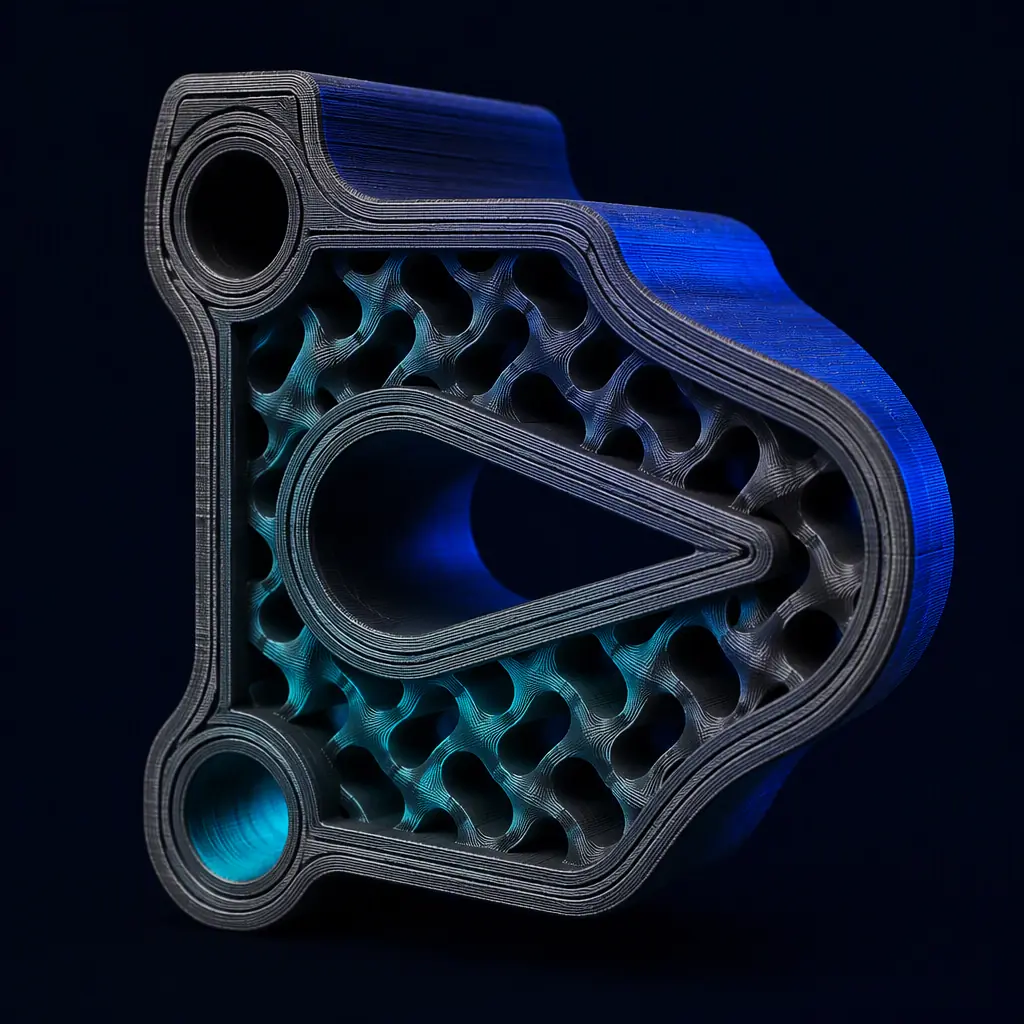

Wall thickness is the single most mis-specified dimension in FDM. Two separate quantities are involved: the number of perimeter walls (contours) and the wall thickness in millimeters. For functional parts, the rule is 4-6 perimeters with a 0.4 mm nozzle — giving a 1.6-2.4 mm solid outer shell — and 30-50% gyroid infill in the core. This combination outperforms 100% infill for most loaded parts because bending stress concentrates at the outer fiber, exactly where the perimeters sit. A 40% infill part with 5 perimeters can be 20-40% stronger than a 100% infill part with 2 perimeters, while printing 25-35% faster and using less material.

Three wall-specific rules apply. Minimum printable wall: with a 0.4 mm nozzle, the thinnest reliable wall is 0.8 mm (2 perimeters); anything thinner either prints as a single smeared bead or becomes fragile. Thin decorative walls below 0.8 mm should be avoided entirely — a 0.4 mm "wall" is not a wall, it's a brim. Uniform wall thickness: avoid abrupt thickness changes in one part; a sudden jump from 1.6 mm to 6 mm creates a cooling-rate mismatch that causes warpage at the transition. Rib instead of thicken: when a part needs stiffness in one direction, add ribs or gussets rather than increasing overall wall thickness — a 1.6 mm wall with a 3 mm rib is stiffer than a 4 mm solid wall and prints 30% faster. The nozzle geometry options that set these limits are covered in our nozzle materials & sizes guide, and the per-material strength data is in our engineering filaments guide.

Minimum Feature Size: Holes, Text & Details

FDM's resolution limits are set by the nozzle diameter and the layer height. With a standard 0.4 mm nozzle, the minimum reliable feature sizes are:

Three practical rules make these numbers work. Horizontal holes print undersize: a horizontal hole through a wall prints 0.2-0.4 mm smaller than nominal because the top of the hole sags slightly and the layer lines build inward; either oversize the CAD hole by 0.3 mm or specify a post-drill pass. Teardrop for loaded horizontal holes: for a horizontal hole in a structural part, redesign the top of the hole as a teardrop (60° angled top) — it removes the unsupported top arc and prints clean without sagging. Text embossing beats engraving: raised (embossed) text prints more legibly than recessed text because engraving collects fine layer artifacts; for engraved text, increase height to 1.0 mm minimum. The feature-size limits of other technologies — resin and SLS — are compared in our FDM vs resin guide and our SLS technology guide, which matter when customers ask "can this printer hold my 0.3 mm detail?"

Overhangs, Bridges & Supports: The 45° Ruleset

Gravity is the third material in every FDM print. Fused filament cannot be deposited into thin air, so every feature that leans or spans must obey geometry rules:

• Overhang angle: unsupported surfaces up to 45° from vertical print acceptably; beyond 45° the top surface degrades into drooping "sag" lines. Design self-supporting angles wherever possible — chamfers instead of fillets on underside edges.
• Bridge length: a bridge (a horizontal span between two supports) prints clean up to about 10 mm with a well-tuned part-cooling fan; beyond 15 mm it sags visibly. For longer spans, add a center support or split the part.
• Support-free design: the DFAM preference is to redesign so supports are unnecessary — split the part along the overhang plane and bolt or pin the halves together. When supports are unavoidable, tree supports remove cleaner than grid supports, with the comparison in our support structures guide.
• Support scars: every support contact leaves a texture on the part; if the surface is visible or functional, either orient it away from the support interface or budget a finishing pass — the workflow is in our post-processing & finishing guide.

The cooling hardware that makes 45° overhangs and 10 mm bridges possible is a tuned part-cooling fan duct — the design and upgrade path are in our part cooling fan guide. Without effective cooling, even a 30° overhang degrades on high-temperature materials.

Clearances & Tolerances for Mating Parts

FDM cannot hold the zero-clearance press fits that machined parts use. Mating features need explicit clearance designed in, because layer-line texture and thermal shrinkage make nominal-to-nominal fits bind. The working table:

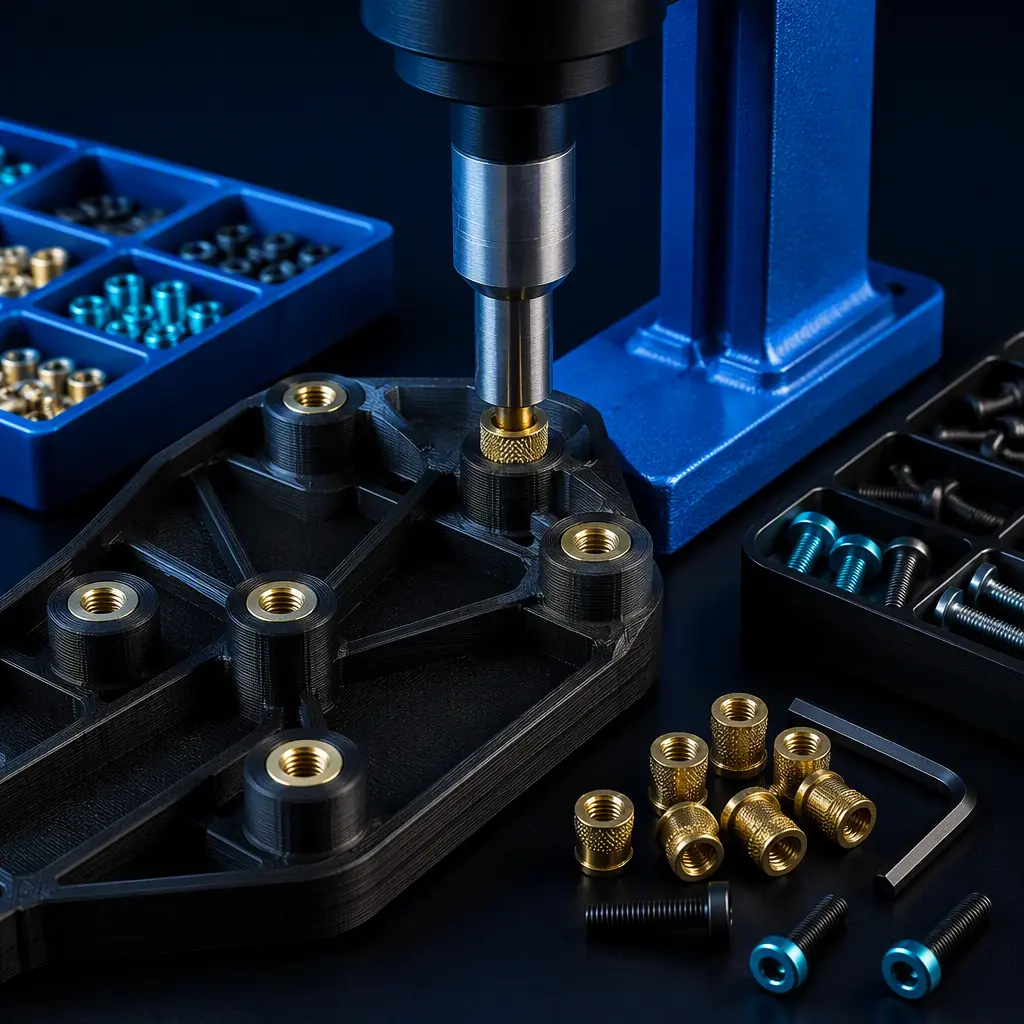

The clearance values above assume PLA/PETG at 0.2 mm layer height with a calibrated machine. Materials with high shrinkage (ABS, nylon, PC) add 0.05-0.15 mm of part-scale error, so their clearances must be set at the high end of each range — the shrinkage table for every material family is in our tolerances guide. For threaded connections, the correct approach is a heat-set insert, not a tapped hole: inserts give metal-grade threads and hold 5-10x the pullout force of printed threads, and the hole-size spec comes from the insert manufacturer's data sheet, not from the thread nominal.

Orientation: The Single Highest-Impact Decision

Print orientation changes strength by 3-5x, accuracy by tenths of a millimeter, and surface quality on every face. The rules engineers should apply, in order:

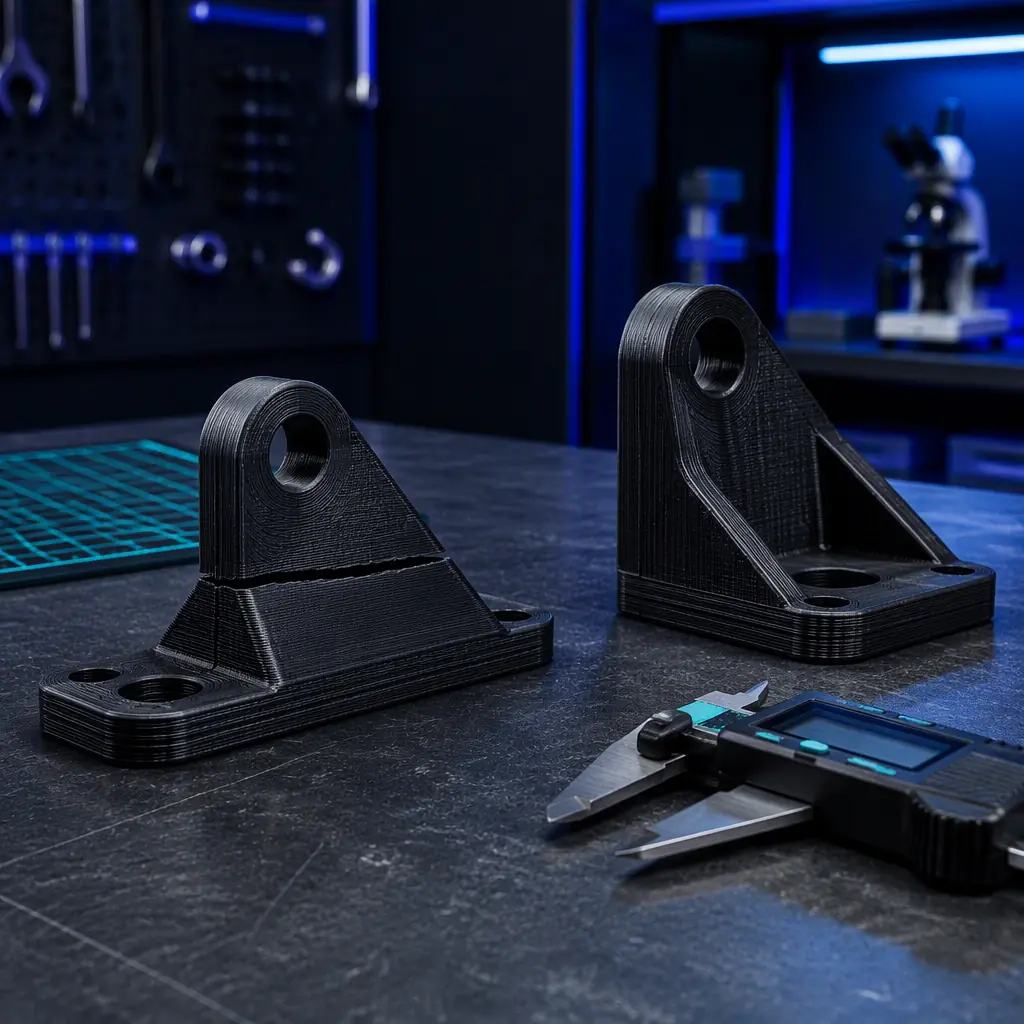

• Loads first: orient so the highest service load runs along the layers (parallel to the build plate), never across them. A bracket loaded in bending should print on its side so the bending force travels along the layer lines, not peel them apart. This single decision is worth more than any material upgrade — it is the first rule taught in the DFAM chapter of our functional parts guide.
• Critical dimensions second: XY axes hold ±0.1-0.15 mm; the Z axis holds ±0.2-0.3 mm because layer height quantization adds error. Put the dimension that matters most in the XY plane.
• Cosmetics third: visible faces should point away from the build plate (the bottom face carries the first-layer texture) and away from support interfaces.
• Warpage fourth: minimize the largest continuous flat area touching the build plate; a 100×100 mm flat base warps more than a 40×40 mm one under the same material, which is why large flat parts get printed at 45° on the plate with a brim — the adhesion and first-layer setup is covered in our bed adhesion guide.

Orientation trade-offs are real — the strongest orientation is rarely the fastest or the prettiest — and quantifying them (strength gain vs print time) is exactly the kind of calculation that closes engineering accounts. The calibration state that makes orientation math trustworthy is covered in our advanced calibration guide.

The DFAM Cheat Sheet: Print This, Hand It to Your Customers

The complete ruleset in one table — the reference engineers can tape to their monitor and distributors can include in every printer shipment:

Selling DFAM: How Distributors Turn Design Rules Into Printer Sales

The DFAM ruleset is a sales asset, not just a technical reference. Three distributor plays monetize it directly. 1. The design review as the demo. Ask the engineering prospect for a part they currently machine or buy, review it against the table above, and show them three redesigns that print stronger and faster — the demo structure is in our sales demo playbook, and it converts because you are selling a capability (their parts work), not a machine. 2. DFAM training as a paid service. A half-day design-rules workshop for an engineering team at $800-1,500 is the fastest path to a printer order, and it positions the distributor as the technical authority in the territory; the service-revenue model is detailed in our repair & service center guide. 3. The ruleset as a shipped asset. Include the cheat-sheet table as a printed card in every printer box — it reduces support tickets, increases successful first prints, and quietly markets your expertise. The failure-analysis side — what to check when a customer's part still fails — is covered in our print failure diagnosis guide, and the accuracy expectations that close the deal are quantified in our TCO & ROI calculator guide.

The bottom line for distributors: every engineer in your territory has a drawer of failed FDM parts that were designed wrong, not printed wrong. The distributor who can show them why — and how to fix it in CAD — owns the account. That is the DFAM advantage, and it is free to teach and priceless to sell.
